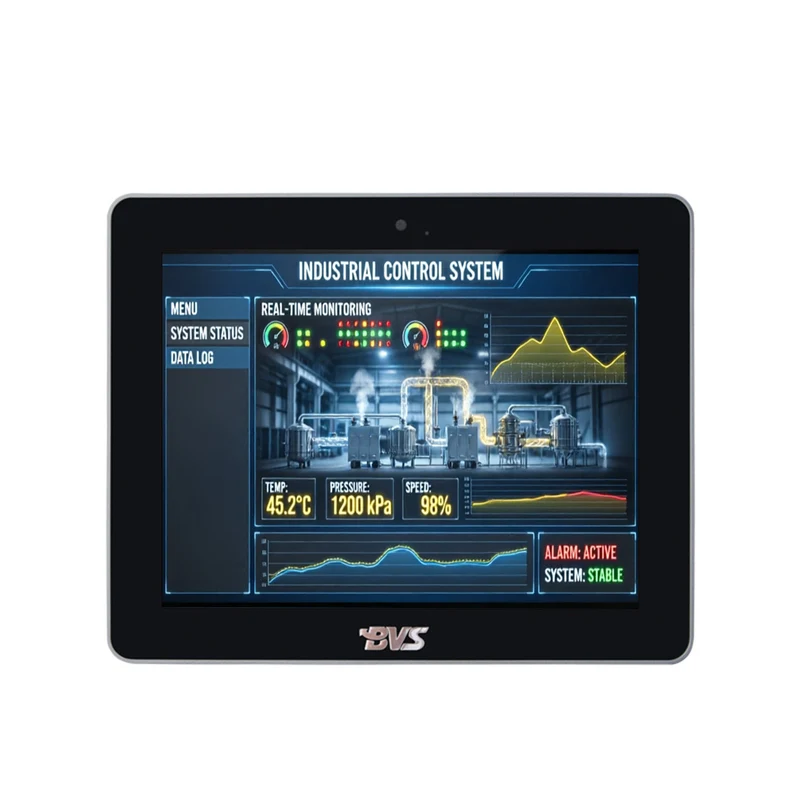

BVS‑QW‑104 10.4 Inch Industrial Touch Panel PC, 6th Gen Intel Core i5, Capacitive Touch Screen, Windows & Linux Supported
Descrizione
Overview &Key Features
【Model】BVS-QW104
【Item】

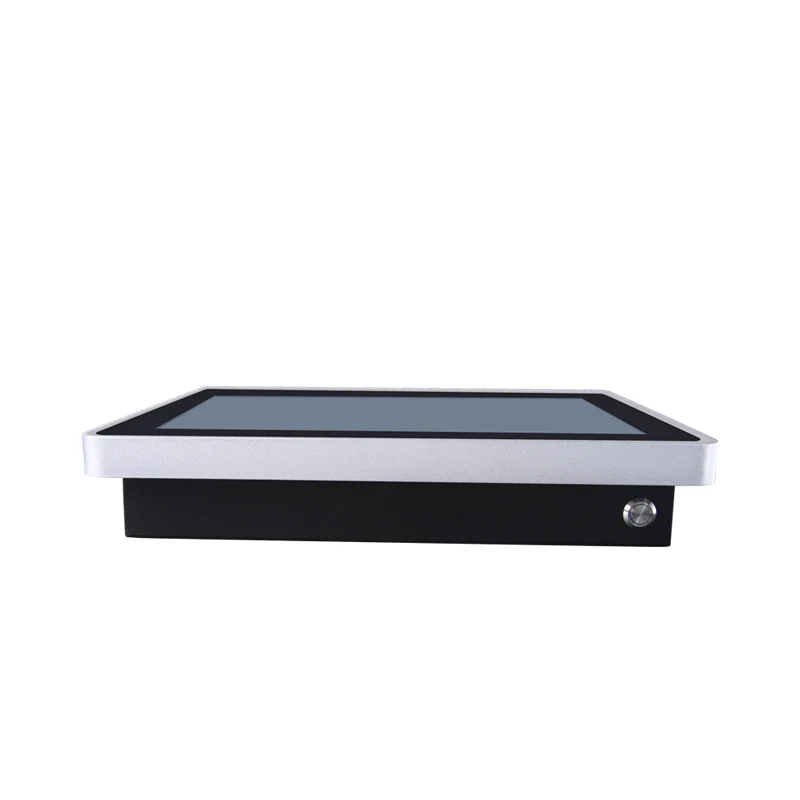

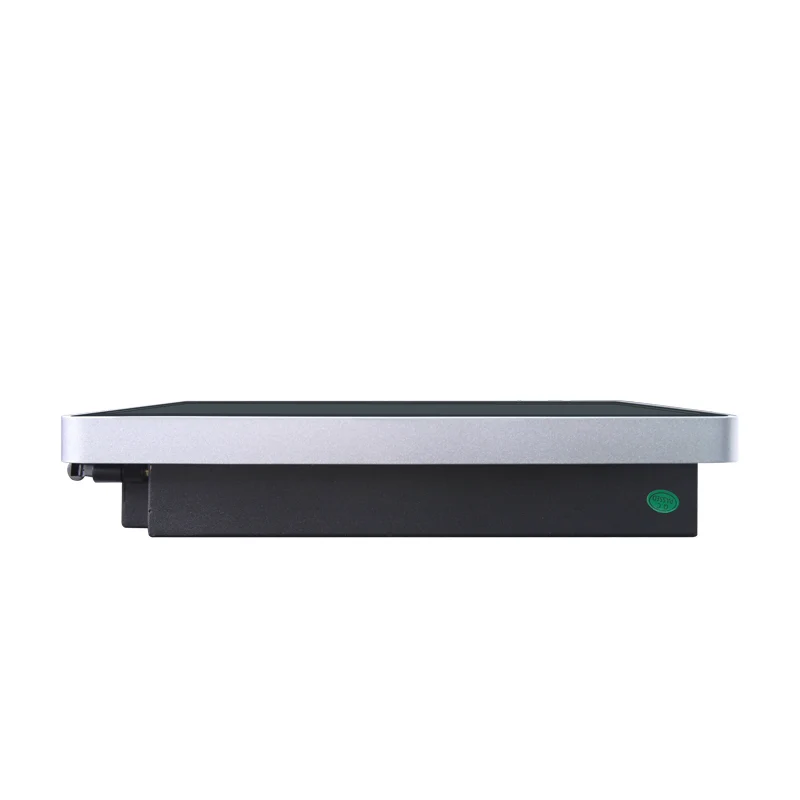

The BVS‑QW‑104 is a compact metal industrial all‑in‑one touch computer designed for space‑constrained industrial control cabinets. Built with a durable metal housing and integrated projected capacitive multi‑touch display, this HMI panel runs on the reliable 6th‑generation Intel Core i5 processor. It supports both Windows and Linux operating systems to fit diverse industrial software and SCADA monitoring requirements. Front‑panel slim design and flexible mounting options make it ideal for small‑scale equipment control, machine operation terminals and compact factory automation scenarios, supporting stable 24/7 non‑stop operation.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 4th gen | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 2.5GHZ | / | |||||||||
| RAM | 8GB | 4GB / 8GB | |||||||||
| SSD | 128GB | 64GB / 128GB / 256GB / 512GB | |||||||||
| Operating system | Win10 | Windows 7 / 8 / 11 / Linux / Unix | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1024 (RGB) × 768, WXGA | / | |||||||||
| Viewing angle | 20/30/45/45 (Typ.) (CR≥10) | / | |||||||||
| Contrast ratio | 800:1 | / | |||||||||
| Brightness | 250 cd/m2 (Typ.) | 400/500 cd/m2 (Typ.) | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | / | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth | |||||||||
| 4G LTE | / | / | |||||||||

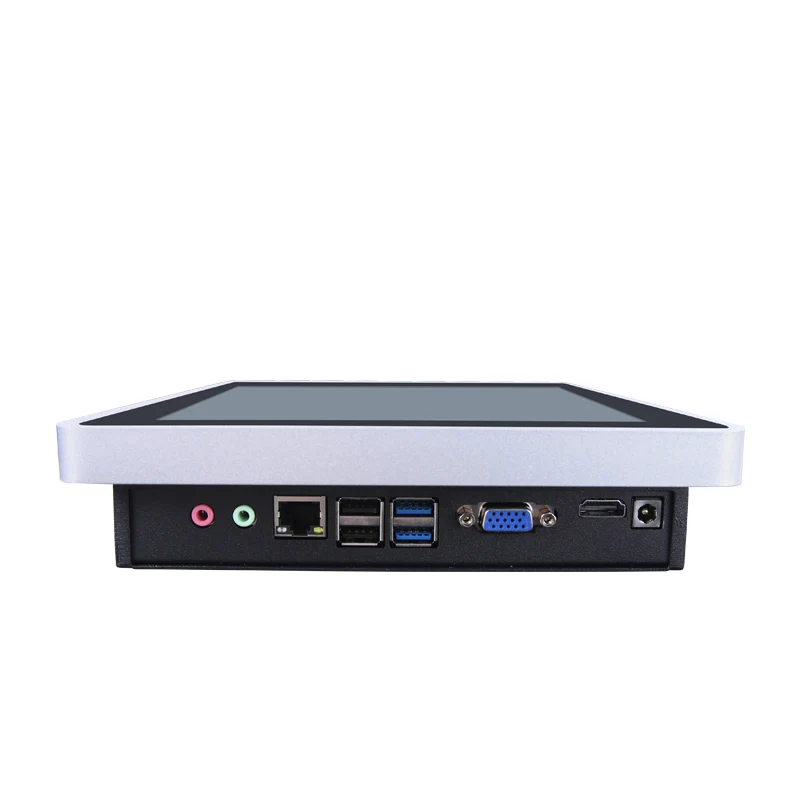

| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | RS232*2 | Customizable | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Built-in Speaker * 1 | / | ||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A (DC 2.5mm) | / | ||||||||
| Temperature | Working temperature | 10°C ~ 70°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 1.7kg | / | ||||||||
| Gross weight | 2.4 kg | / | |||||||||
| Product dimensions | 208*261*46mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 490*340*130mm（L*W*H） | / | |||||||||
| Carton Dimension | 500*520*340mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
