Fornitore: BVS

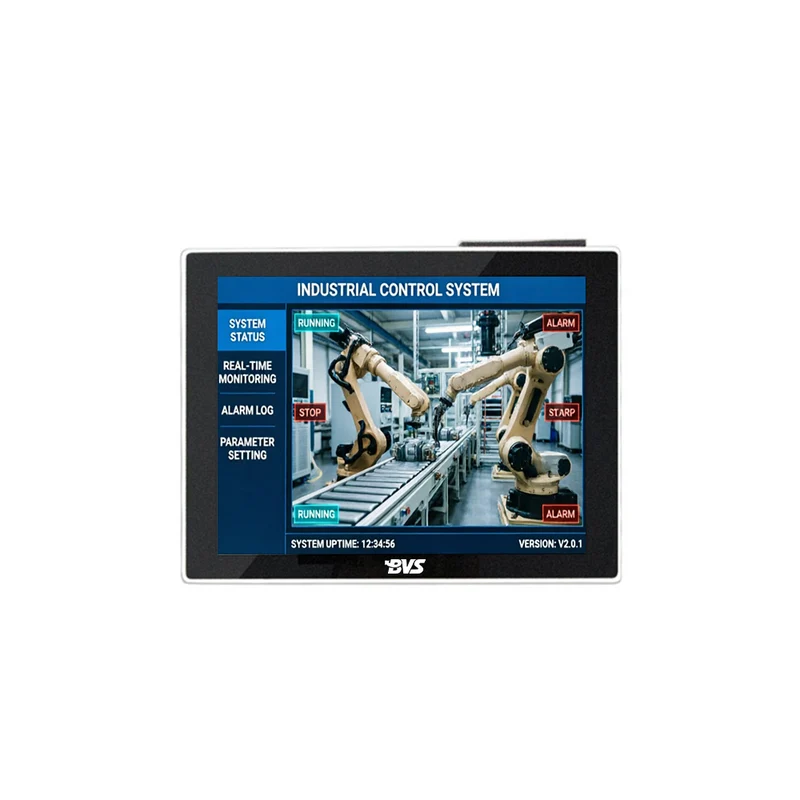

BVS‑QW‑121 12.1 Inch All‑in‑One Industrial Touch Panel PC, 6th Gen Intel Core i5, HMI Human‑Machine Interface, Windows Linux OS
Descrizione
Overview &Key Features
【Model】BVS-QW121
【Item】
BVS‑QW‑121 12.1‑inch industrial touch all‑in‑one PC delivers a balanced screen size for standard factory cabinet deployment. Adopting high‑strength metal housing and responsive capacitive touch panel, this industrial workstation is powered by the 6th Gen Intel Core i5 CPU. Full compatibility with Windows and Linux platforms allows seamless integration with industrial configuration software, PLC data acquisition and real‑time data visualization. The optimized heat dissipation structure guarantees reliable long‑term operation in factory floors with dust and vibration.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 2.5GHZ | / | |||||||||
| RAM | 8GB | 4GB / 8GB | |||||||||
| SSD | 128GB | 64GB / 128GB / 256GB / 512GB | |||||||||
| Operating system | Win10 | Windows 7 / 8 / 11 / Linux / Unix | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 800(RGB)×600, WXGA | / | |||||||||
| Viewing angle | 80/80/60/80 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 800:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 250 cd/m2 (Typ.) | 400/500 cd/m2 (Typ.) | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | / | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth | |||||||||

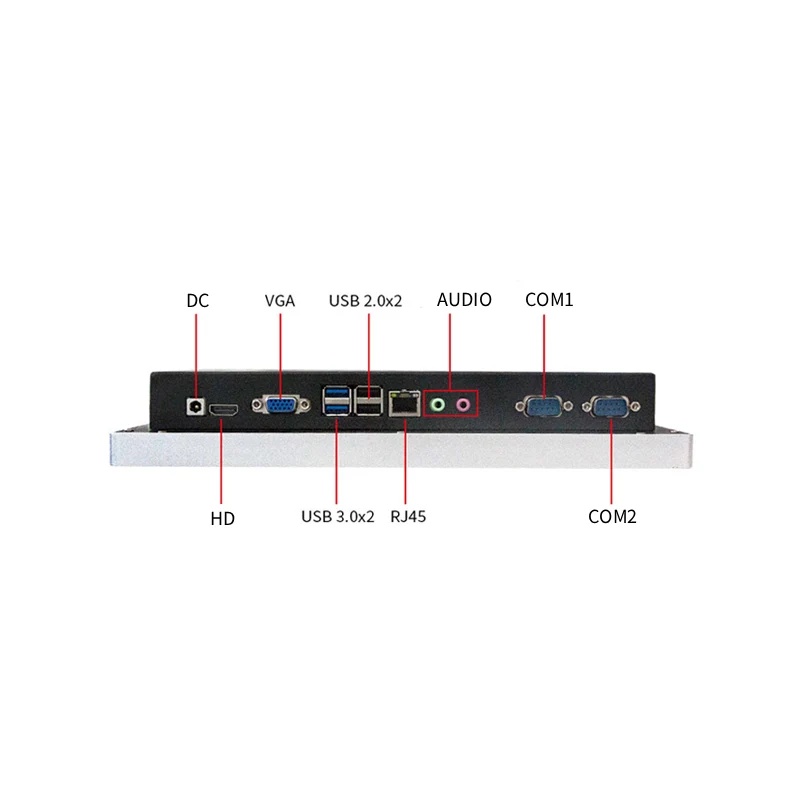

| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | RS232*2 | Customizable | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Built-in Speaker * 1 | / | ||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A (DC 2.5mm) | / | ||||||||
| Temperature | Working temperature | 10°C ~ 70°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 2kg | / | ||||||||
| Gross weight | 3.2 kg | / | |||||||||
| Product dimensions | 224*295*46mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 430*320*120mm（L*W*H） | / | |||||||||
| Carton Dimension | 500*520*340mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
Applications OEM / ODM Customization
