Fornitore: BVS

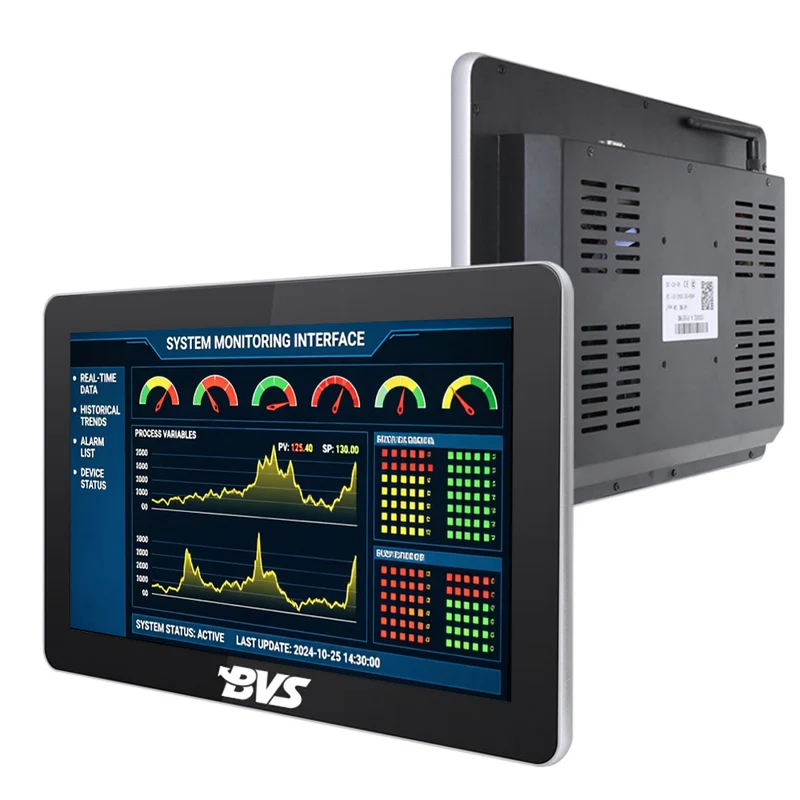

BVS‑QW‑156 15.6 Inch Wide‑Screen Industrial Touch All‑in‑One PC, 6th Gen Intel Core i5, Wide View Display, Windows & Linux HMI Panel
Descrizione
Overview &Key Features
【Model】BVS-QW156
【Item】
The BVS‑QW‑156 is a widescreen 15.6‑inch industrial touch panel PC built with Metal rugged casing for industrial monitoring tasks. Its wide‑format high‑definition screen provides extra display space to run multi‑window monitoring dashboards, trend charts and alarm lists. Equipped with the 6th Gen Intel Core i5 processor, this touch workstation fully supports Windows and Linux operating systems, making it a perfect solution for SCADA systems, real‑time process visualization and multi‑task industrial control. Capacitive touch delivers smooth operation for daily factory management.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i7 | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 2.7GHZ | / | |||||||||
| RAM | 8GB | 4GB / 8GB | |||||||||
| SSD | 128GB | 64GB / 128GB / 256GB / 512GB | |||||||||
| Operating system | Win10 | Windows 7 / 8 / 11 / Linux / Unix | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1920(RGB)×1080, WXGA | / | |||||||||
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 800:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 220 cd/m2 (Typ.) | 500/1000 cd/m2 (Typ.) | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | / | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth | |||||||||
| Interfaces | USB | USB * 4 | / | ||||||||
| COM | 2(RS232) | Customizable | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Built-in Speaker * 1 | / | ||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A (DC 2.5mm) | / | ||||||||
| Temperature | Working temperature | 10°C ~ 70°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | Customizable | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | / | |||||||||
| Packaging | Net weight | 2.55kg | / | ||||||||
| Gross weight | 3.9kg | / | |||||||||
| Product dimensions | 254*404*43mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 420*480*130mm（L*W*H） | / | |||||||||
| Carton Dimension | 520*410*470mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
Product Gallery
Applications OEM / ODM Customization
