Fornitore: BVS
BVS‑QW‑215 21.5 Inch Large‑Screen Industrial Touch Panel PC, 6th Gen Intel Core i5, Full HD Display, Windows & Linux HMI Control Workstation
Descrizione
Overview &Key Features
【Model】BVS-QW215
【Item】

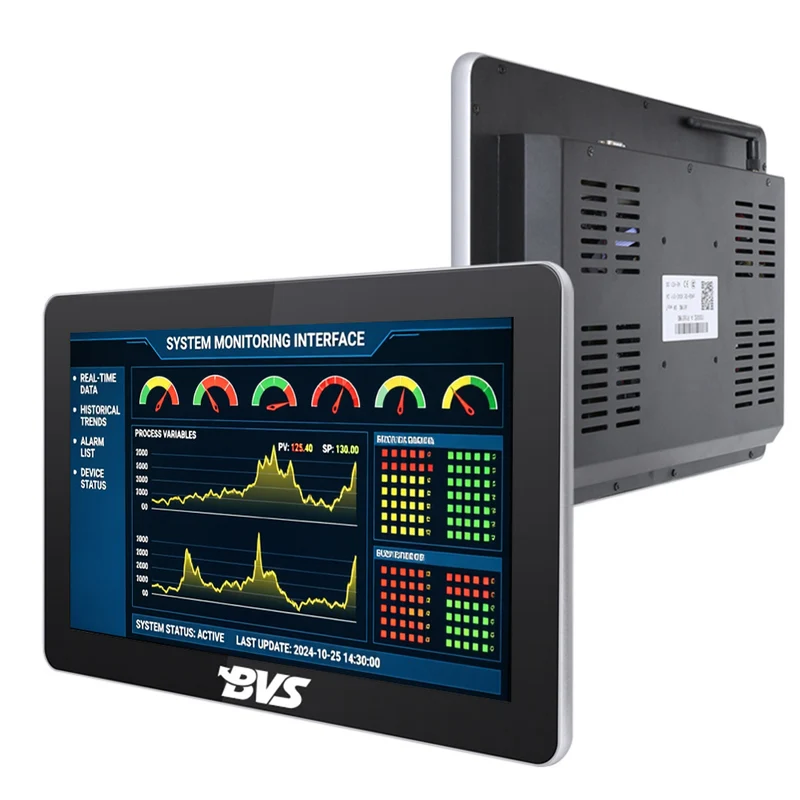

The BVS‑QW‑215 is a premium 21.5‑inch full‑HD widescreen industrial all‑in‑one touch PC with a sturdy metal housing. This extra‑large touch workstation delivers ample screen space for full‑scale factory dashboards, multi‑group trend curves, real‑time alarm panels and multi‑device status monitoring at a single glance. Powered by the 6th‑generation Intel Core i5 processor, it offers reliable computing performance and full compatibility with Windows and Linux operating systems, perfectly matching SCADA, MES, smart manufacturing and industrial big‑data visualization software. Built for 24/7 non‑stop operation, it serves as a central human‑machine interface for factory control rooms and intelligent workshop management.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 2.7GHZ | / | |||||||||
| RAM | 8GB | 4GB / 8GB | |||||||||
| SSD | 128GB | 64GB / 128GB / 256GB / 512GB | |||||||||
| Operating system | Win10 | Windows 7 / 8 / 11 / Linux / Unix | |||||||||
| Display | Screen | Industrial LCD Screen | / | ||||||||
| Resolution | 1920(RGB)×1080, WXGA | / | |||||||||
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) | / | |||||||||
| Contrast ratio | 800:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 220 cd/m2 (Typ.) | 300/500/1000 cd/m2 (Typ.) | |||||||||
| Screen scale | / | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | / | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth | |||||||||
| Interfaces | USB | USB *4 | / | ||||||||
| COM | 2(RS232) | Customizable | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Built-in Speaker * 1 | / | ||||||||
| Accessories | Adapter | AC 100-240V 50/60Hz, DC 12V/5A (DC 2.5mm) | / | ||||||||
| Temperature | Working temperature | 10°C ~ 70°C | / | ||||||||
| Storage temperature | -20°C ~ 70°C | Customizable | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | / | |||||||||
| Packaging | Net weight | 2.55kg | / | ||||||||
| Gross weight | 3.9kg | / | |||||||||
| Product dimensions | mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 630*470*140mm（L*W*H） | / | |||||||||
| Carton Dimension | 640*480*560mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
Product Gallery
Applications OEM / ODM Customization
