BVS‑XC‑156 15.6 Inch Fanless All‑Aluminum Alloy Industrial Touch Panel PC, 6th Gen Intel Core i5, Windows Linux Embedded HMI Workstation
Descrizione
Overview &Key Features
【Model】BVS-XC156
【Item】

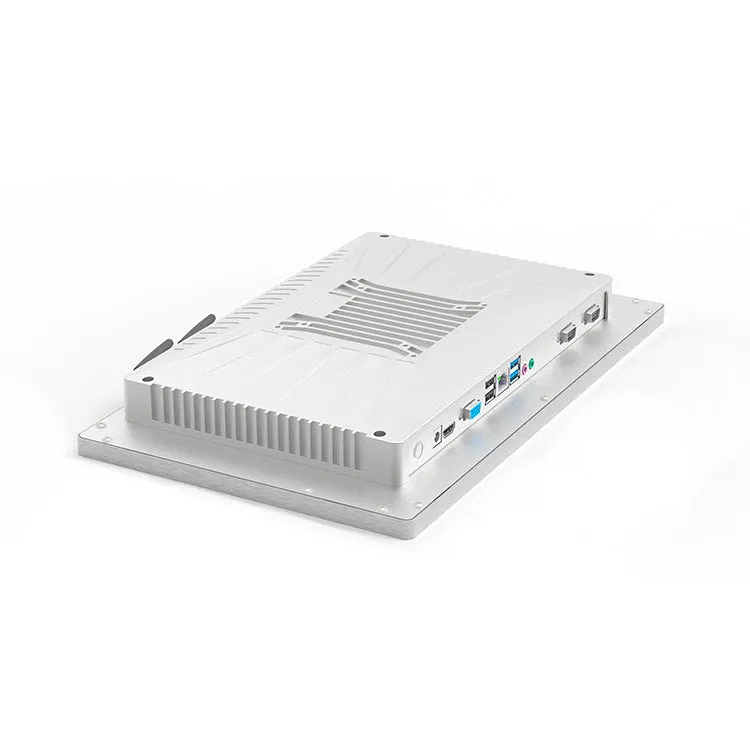

The BVS‑XC‑156 is a compact widescreen fanless industrial all‑in‑one touch PC built with a full aluminum alloy housing, integrating the front bezel and fin‑style passive heat‑dissipation rear shell into one rugged metal unit. The fan‑free cooling architecture eliminates fan failure risks, enabling reliable 24/7 continuous operation in dusty, vibration‑prone workshop environments. Powered by the 6th‑generation Intel Core i5 processor, this embedded touch workstation delivers smooth multi‑task performance for production data monitoring, equipment status visualization and on‑site HMI control. Native compatibility with Windows and Linux allows seamless deployment with mainstream industrial software including SCADA, MES and PLC configuration tools. The solid aluminum frame improves structural rigidity for cabinet‑embedded installation on automated production lines, logistics sorting stations and food‑grade manufacturing workshops.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i5 | Intel Core i3/i5/i7 (Gen 3/4/5/6/8/12) | ||||||||
| Frequency | 2.5 GHz | / | |||||||||
| RAM | 8GB | ( 4GB / 8GB) | |||||||||
| SSD | 128GB | (32GB/ 64GB / 128GB / 256GB / 512GB) | |||||||||
| Operating system | Pre-install Windows OS（Unactivated）/Linux | Windows 7 / 8 / 10 / Linux / Unix | |||||||||
| Display | Screen | 15.6 inch Industrial LCD Screen | / | ||||||||
| Resolution | 1920 (RGB) × 1080, WXGA | / | |||||||||
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) | / | |||||||||
| Contrast ratio | 800:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 300 cd/m2 (Typ.) | / | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | / | ||||||||
| Ethernet | 1 x Gigabit Ethernet (RJ45) | / | |||||||||
| BT | / | Bluetooth | |||||||||
| Interfaces | USB | USB 2.0 * 2, USB 3.0 * 2 | / | ||||||||
| COM | RS232 * 2 | Customizable | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | / | |||||||||
| LAN | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Audio | Built-in Speaker * 1 | / | ||||||||
| Accessories | Adapter | DC 12V / 5A | / | ||||||||
| Temperature | Working temperature | -10°C ~ 40°C | / | ||||||||
| Storage temperature | / | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 2.55kg | / | ||||||||
| Gross weight | 3.8kg | / | |||||||||
| Product dimensions | 235*386*45mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 420*480*130mm（L*W*H） | / | |||||||||
| Carton Dimension | 520*410*470mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | / | 2MP / 5MP | ||||||||
| NFC | / | (ISO/IEC14443A) | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
