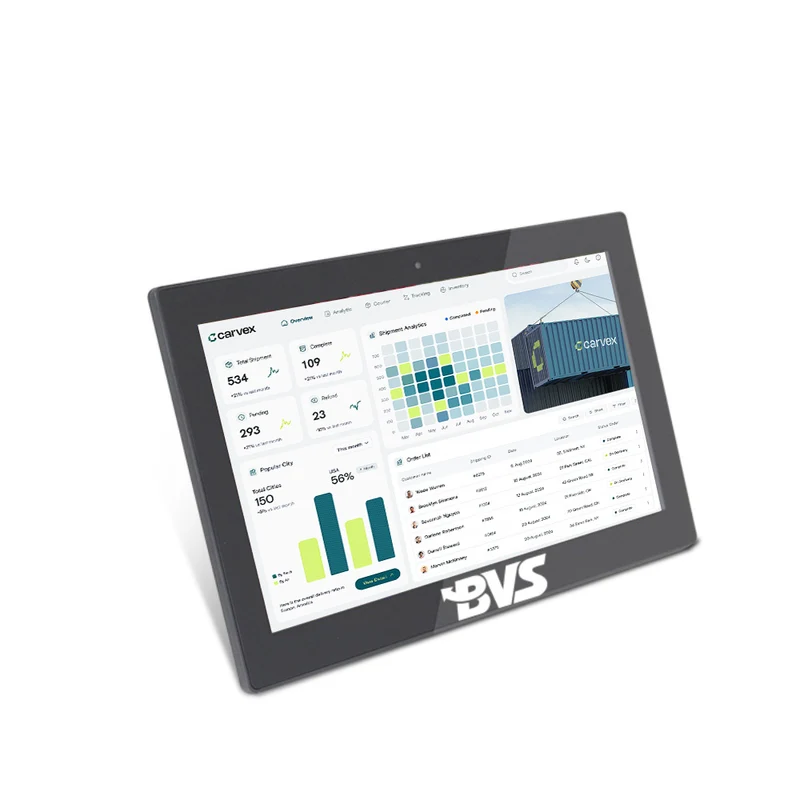

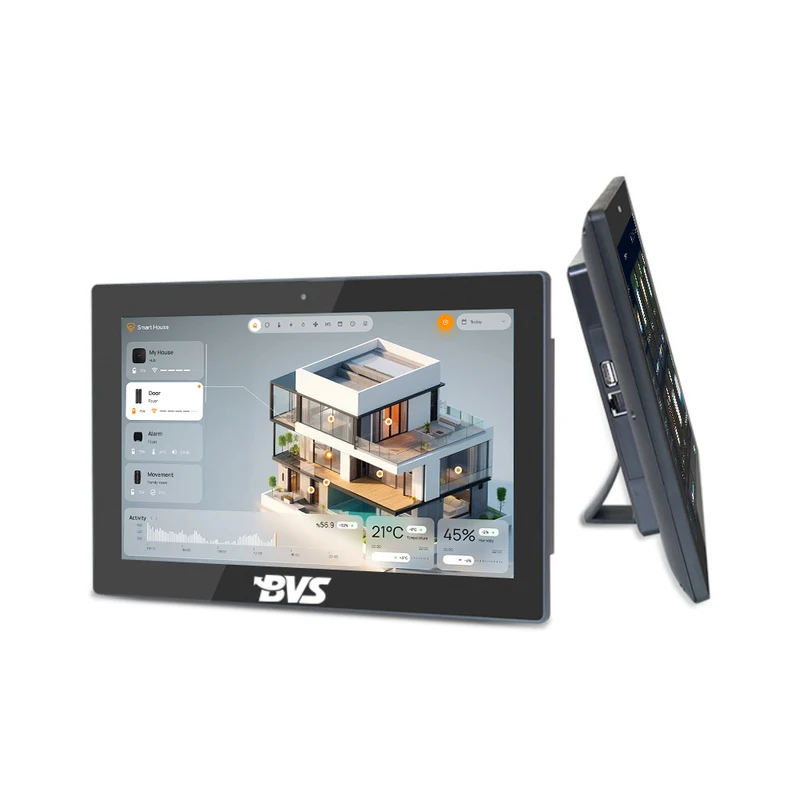

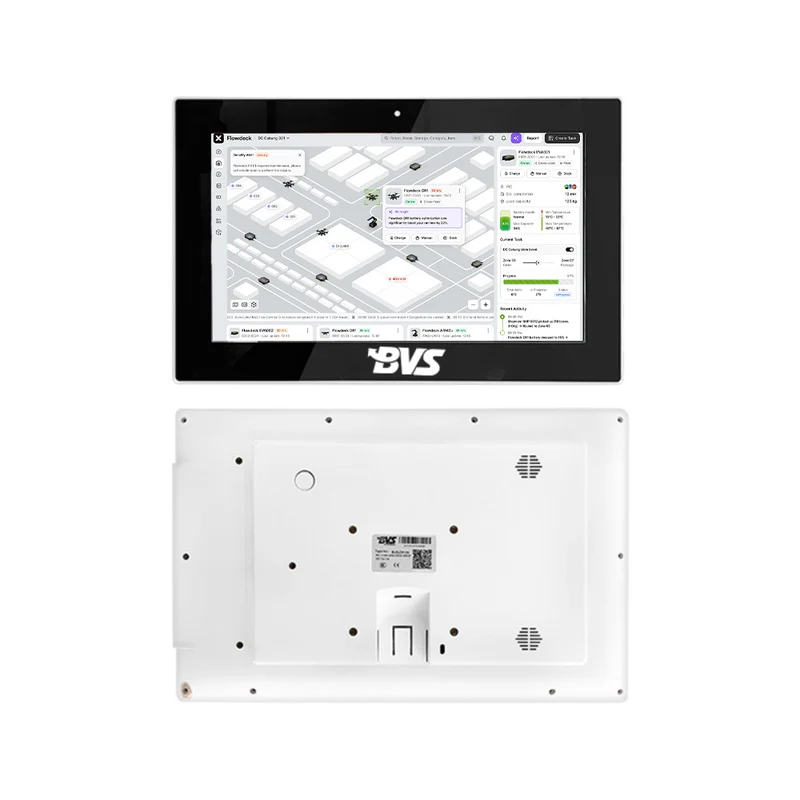

BVS‑ZR140 14 Inch ABS Plastic Android Touch Panel PC, RK3566 2+32GB, Debian Linux Embedded Interactive Terminal, Black White Commercial Tablet Display
Descrizione
Overview &Key Features
【Model】BVS-ZR140
【Item】
BVS-ZR 14–32" All-in-One Android Panel PC – RK3566 for Industrial Monitoring

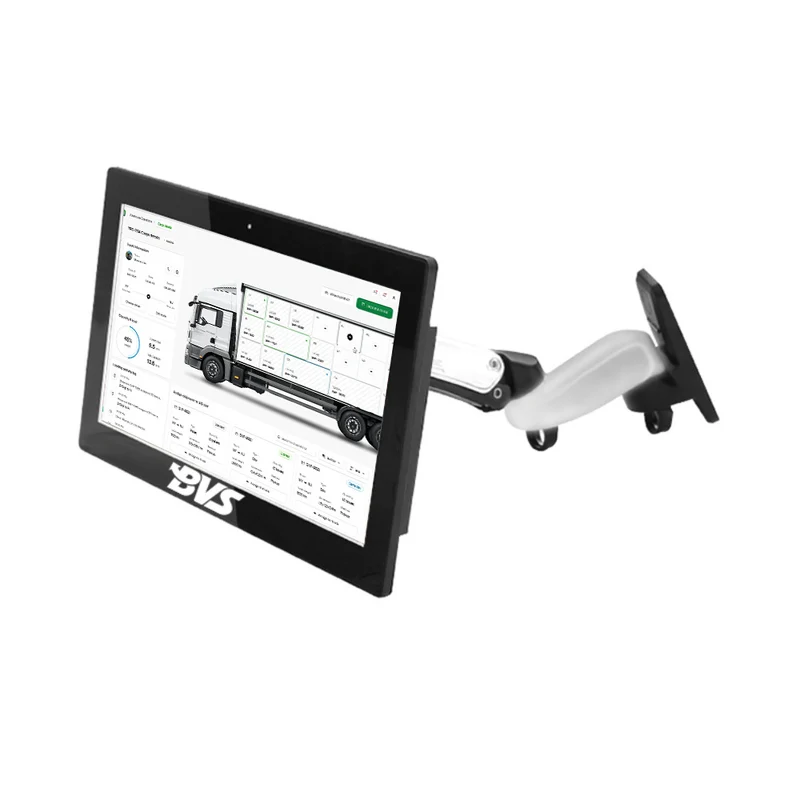

BVS‑ZR‑140 is a balanced 14‑inch mid‑small commercial touch all‑in‑one with sturdy ABS plastic casing, offered in black and white to match diverse interior decoration styles. Equipped with Rockchip RK3566 chip and standard 2GB+32GB memory combination, it runs Android smoothly and also supports Debian Linux for developers to deploy customized kiosk software. The moderate screen size delivers better visual content without occupying excessive wall space. Flexible mounting options allow wall‑hanging for corporate office scheduling or placing on countertops as self‑service ordering screens. The wear‑resistant ABS shell adapts to daily public‑area use for boutique retail, co‑working space management and light‑duty interactive advertising projects.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Rockchip RK3566 Quad-core Cortex-A55 | / | ||||||||
| Frequency | 2.0 GHz | / | |||||||||
| GPU | Quad-core GPU | / | |||||||||
| NPU | 1TOPS NPU | / | |||||||||
| DDR | 2GB | 4GB | |||||||||
| EMMC | 32GB | 16GB | |||||||||
| Operating system | Android 11 | / | |||||||||
| Display | Screen | 14.0 inch Industrial LCD Screen | / | ||||||||
| Resolution | 1920(RGB)×1080 , WXGA | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) | / | |||||||||
| Contrast ratio | 700:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 300 cd/m2 (Typ.) | 500 cd/m2 | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | 5G Wi-Fi | ||||||||
| Ethernet | 1 x Gigabit Ethernet (RJ45) | / | |||||||||
| BT | Bluetooth | / | |||||||||
| 4G LTE | / | / | |||||||||
| Interfaces | USB | USB Host * 3 | / | ||||||||
| COM | / | TTL / RS232 / RS485 * 2 (support external NFC, Printer, Scanner, etc.) | |||||||||
| HD | / | / | |||||||||
| TF card slot | Max support 32GB TF card | / | |||||||||
| LAN | 1 | / | |||||||||
| SIM-4G | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Video | H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 1080P multi-video decoding, YouTube, etc. | / | ||||||||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | / | |||||||||
| Picture | JPG, BMP, PNG formats browsing, rotation, slide show, zoom | / | |||||||||
| Accessories | Adapter | DC 12V / 5A | / | ||||||||
| Temperature | Working temperature | -20°C ~ 60°C | / | ||||||||
| Storage temperature | / | / | |||||||||
| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 1.7kg | / | ||||||||
| Gross weight | 2.7kg | / | |||||||||
| Product dimensions | 355*228*32mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 425*138*365mm（L*W*H） | / | |||||||||
| Carton Dimension | 520*410*370mm（L*W*H (Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | 2MP | (1.3MP 720P, 2MP 1080P, 5MP) | ||||||||
| NFC | / | (ISO/IEC14443A) | |||||||||
| RFID | / | / | |||||||||
| POE | / | Support POE power supply | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
