Fornitore: BVS
BVS‑ZR320 32 Inch Retail Product Consultation Android Touch Kiosk, RK3566 2+32GB, Debian Linux Shopping Mall Interactive Guide Terminal, ABS Plastic Wall‑Mount Commercial Panel
Descrizione
Overview &Key Features
【Model】BVS-ZR320
【Item】
BVS-ZR 14–32" All-in-One Android Panel PC – RK3566 for Industrial Monitoring
BVS‑ZR‑320 is a flagship large‑screen public service touch terminal built for scenic areas and tourist service centers. The high‑strength ABS plastic shell resists public‑scene wear and tear, with classic black and white appearance options. Equipped with Rockchip RK3566 and 2GB+32GB storage, it runs Android tourist service software for route map checking, attraction introduction and rest facility searching. Debian Linux supports scenic area management teams to deploy passenger flow monitoring and emergency notification systems. The oversized touch display provides clear guidance for mass tourists, serving as a self‑service tourist helper for city scenic spots, wetland parks and cultural tourism towns.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Standard | optional | ||||||||||
| System | CPU | Rockchip RK3566 Quad-core Cortex-A55 | / | ||||||||
| Frequency | 2.0 GHz | / | |||||||||
| GPU | Quad-core GPU | / | |||||||||
| NPU | 1TOPS NPU | / | |||||||||
| DDR | 2GB | 4GB | |||||||||
| EMMC | 32GB | 16GB | |||||||||
| Operating system | Android 11 | / | |||||||||
| Display | Screen | 32.0 inch Industrial LCD Screen | / | ||||||||
| Resolution | 1920(RGB)×1080 [FHD] | / | |||||||||
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) | / | |||||||||
| Contrast ratio | 3000:1 (Typ.) (Transmissive) | / | |||||||||
| Brightness | 250 cd/m2 (Typ.) | 500 cd/m2 | |||||||||
| Screen scale | 16:9 | / | |||||||||
| Network | Wi-Fi | 2.4G Wi-Fi, 802.11b/g/n | 5G Wi-Fi | ||||||||
| Ethernet | 1 x Gigabit Ethernet (RJ45) | / | |||||||||
| BT | Bluetooth | / | |||||||||
| 4G LTE | / | / | |||||||||

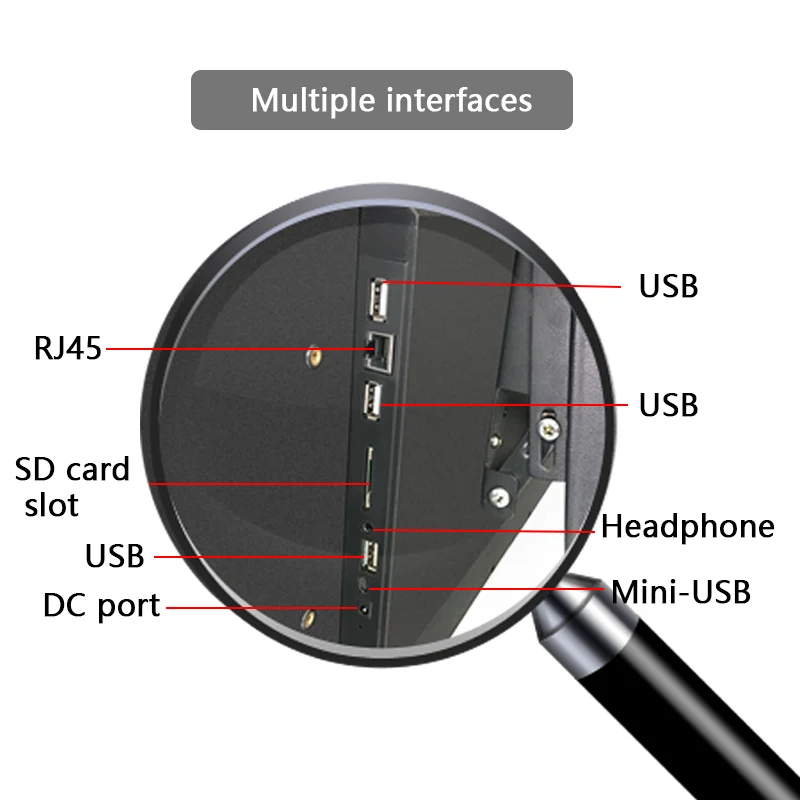

| Interfaces | USB | USB Host * 3 | / | ||||||||
| COM | / | TTL / RS232 / RS485 * 2 (support external NFC, Printer, Scanner, etc.) | |||||||||
| HD | / | / | |||||||||
| TF card slot | Max support 32GB TF card | / | |||||||||
| LAN | 1 | / | |||||||||
| SIM-4G | 1 | / | |||||||||
| DC-IN | 1 | / | |||||||||
| Multi-Media | Video | H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 1080P multi-video decoding, YouTube, etc. | / | ||||||||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | / | |||||||||
| Picture | JPG, BMP, PNG formats browsing, rotation, slide show, zoom | / | |||||||||
| Accessories | Adapter | DC 12V / 5A | / | ||||||||
| Temperature | Working temperature | -20°C ~ 60°C | / | ||||||||
| Storage temperature | / | / | |||||||||

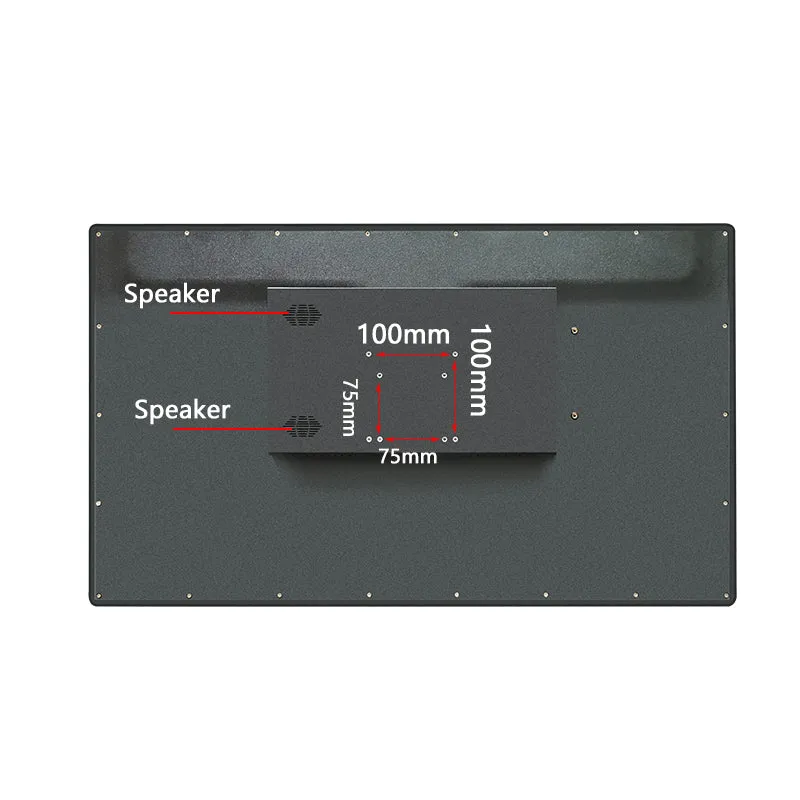

| Mounting | VESA Mount | / | Customizable | ||||||||
| Panel Mount | / | Customizable | |||||||||
| Stand Mount | / | Customizable | |||||||||
| Packaging | Net weight | 10.62kg | / | ||||||||
| Gross weight | 12.16kg | / | |||||||||
| Product dimensions | 763*457*25mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 860*140*570mm（L*W*H） | / | |||||||||
| Carton Dimension | 890*338*610mm（L*W*H）(Ctn Qty:5 pcs) | / | |||||||||
| Other functions | Camera | 2MP | (1.3MP 720P, 2MP 1080P, 5MP) | ||||||||
| NFC | / | (ISO/IEC14443A) | |||||||||
| RFID | / | / | |||||||||
| POE | / | Support POE power supply | |||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
