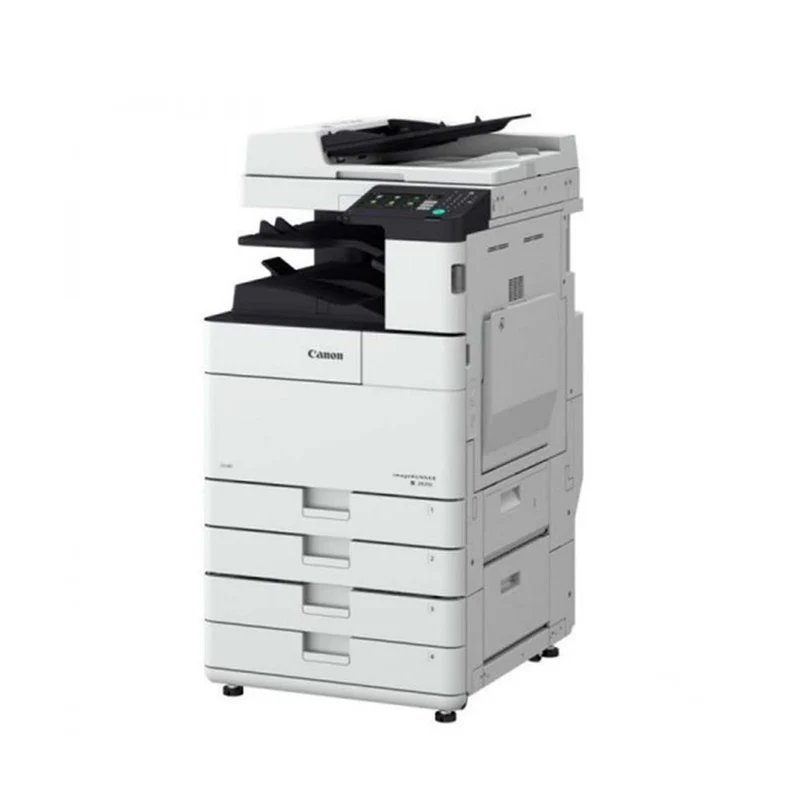

Canon Copier IR2745i MFP w/o Toner & Stand

*PICTURE IS FOR REFERENCE ONLY, ACTUAL PRODUCT MAY VARY*
*ADF NOT INCLUDED*
*ADDITIONAL TRAY NOT INCLUDED*

• Machine Type A3 Monochrome Laser Multifunctional
• Core Functions Print, Copy, Scan, Send and Optional Fax
• Processor Speed 1GHz Dual Core Processor
• Control Panel Standard: 7- inch TFT LCD WVGA Colour Touch panel
• Memory Standard: 2.0GB RAM
• Storage Standard: 64GB eMMC (available space 30GB)
• Interface Connection NETWORK Standard:
  1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection

  OTHERS Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
• Paper Supply Capacity (A4, 80 gsm) Standard: 1,200 sheets
  Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
• Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets
  Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)
• Finishing Capabilities Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand1
• Supported Media Types Main Body Cassette (Upper/Lower):
  Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, Postcard

  Multi-purpose Tray:
  Thin, Plain, Recycled, Colour, Heavy2, Bond, Pre-Punched, Letterhead, Postcard, Labels, Coated, Tracing
• Supported Media Sizes Upper Cassette:
  Standard size: A4, A5, A5R, A6R, B5
  Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

  Lower Cassette:
  Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*, Monarch*, DL*
  Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

  *Requires Envelope Attachment A (std)
• Supported Media Weights Main Body Cassette (Upper/Lower): 52 to 256 gsm

  Multi-purpose tray: 523to 300 gsm

  Duplex: 52 to 220 gsm
• Warm-up Time 4 Seconds or Less4
  From Sleep Mode: 10 seconds or less
  From Power On: 10 Seconds or Less5
• Dimensions (W x D x H) 565 x 687 x 891 mm
• Installation Space (W x D) 1,286 x 1,116 mm (with Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened）
• Weight Approx. 65 kg

Print Specifications

• Print Speed Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)
• Print Resolution (dpi) Up to 1200 x 1200
• Page Description Languages Standard: UFRII, PCL6,
  Optional: Adobe® PostScript®3TM
• Double-Sided Printing Yes
• Direct Print PDF, EPS, TIFF/JPEG, XPS
• Mobile / Cloud Printing AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft

  A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements.
  Please contact your sales representative for further information.
• Fonts PS fonts: 136 Roman
  PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T6 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts7
• Print Features Secure Print, Secure Watermark, Header/Footer, Page Layout, Duplex Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
• Operating Systems UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
  PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022
  PS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
  PPD: Windows® 8.1/10/11, Mac OS X (10.11 or later)

Copy Specifications

• Copy Speed Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)
  Duplex: TBD
• First-Copy-Out Time 5.3 seconds
• Copy Resolution (dpi) 600 x 600
• Multiple Copies up to 999 copies
• Copy Density Automatic or Manual (9 Levels)
• Magnification 25% - 400% (1% Increments)
• Preset Reductions 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
• Preset Enlargements 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
• Basic Copy Features Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan Specifications

• Type Color Scanner
• Pull Scan Specifications Colour Network ScanGear2. For both TWAIN and WIA
  Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022
• Scan Resolution (dpi) Scan for Copy: 600 x 600
  Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
  Scan for Fax: 600 x 600
• Document Feeder Paper Capacity (80 gsm) up to 100 sheets
• Acceptable Originals/Weights Platen: Sheet, Book, 3-Dimensional Objects
  Document Feeder sheet media weights :
  1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
  2-sided scanning: 52 to 128 gsm (BW), 64 to 128 gsm (CL)
• Supported Media Sizes Platen: max. scanning size: 297.0 x 431.8 mm
  DADF: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
  Custom size: 139.7 x 128.0 mm to 297.0 x 431.8 mm
• Scan Method Push Scan, Pull Scan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express)
• Scan Speed 1-sided Scanning: 70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
  2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)
• Double-Sided Scanning Yes

Send Specifications

• Optional / Standard Standard
• Destination Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,
  Optional: Super G3 FAX
• Address Book / Speed Dials LDAP (2,000)/ Local (1,600) /Speed dial (200)
• Send Resolution (dpi) Push: up to 600 x 600
  Pull: up to 600 x 600
• Communication Protocol FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
  Email/iFax: SMTP(send), POP3(receive)
• File Format Standard: TIFF (MMR), JPEG 8, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)
  Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
• Universal Send Features Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications

• Optional / Standard Optional
• Maximum Number of Connection Lines 1
• Modem Speed Super G3: 33.6 kbps
  G3： 14.4 kbps
• Compression Method MH, MR, MMR, JBIG
• Resolution (dpi) 200x100dpi (Standard), 200x200dpi (Fine), 200x400 dpi (Super Fine), 400x400 dpi (Ultra Fine)
• Sending/Receiving Size Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
  Receiving: A3, A4, A4R, A5R, B4, B5, B5R

  *1 Sent as A4.
  *2 Sent as B4 short.
• FAX Memory Up to 30,000 pages (2,000 jobs)
• Speed Dials Max. 200
• Group Dials/Destinations Max. 199 dials
• Sequential Broadcast Max. 256 addresses
• Memory Backup Yes
• Fax Features Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox

Store Specifications

• Memory Media Standard: USB Memory

Security Specifications

• Authentication & Access Control User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
• Network Security TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
• Document Security Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

  *1 Requires optional uniFLOW Online / uniFLOW
  *2 Requires optional Universal Send Digital User Signature Kit-C1
• Device Security Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Start-up, Runtime Intrusion Detection
• Device Management & Auditing Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting
