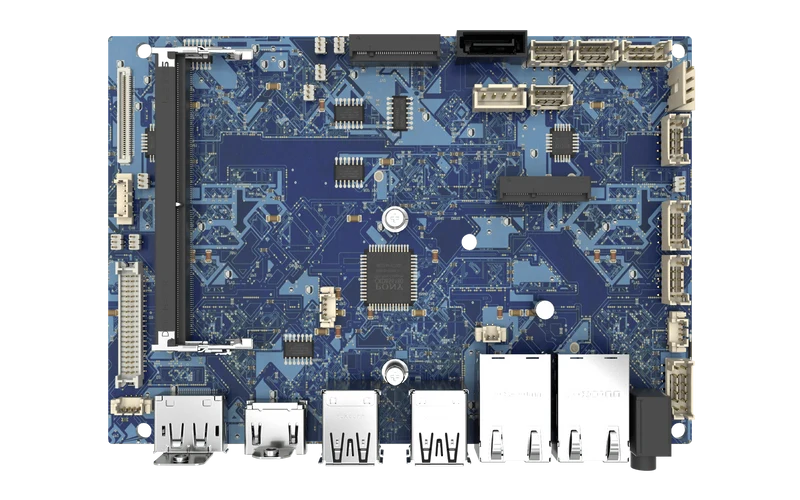

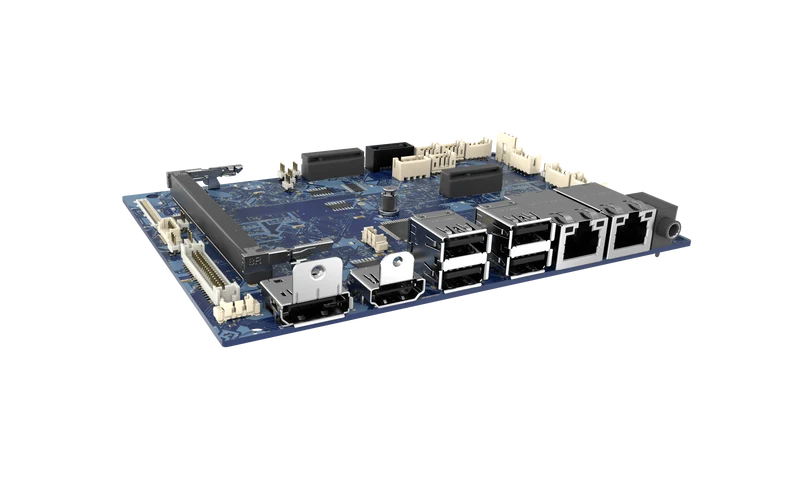

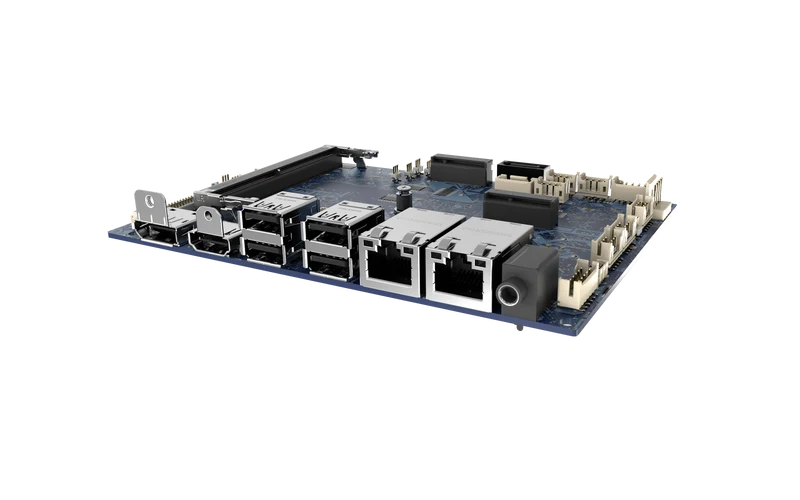

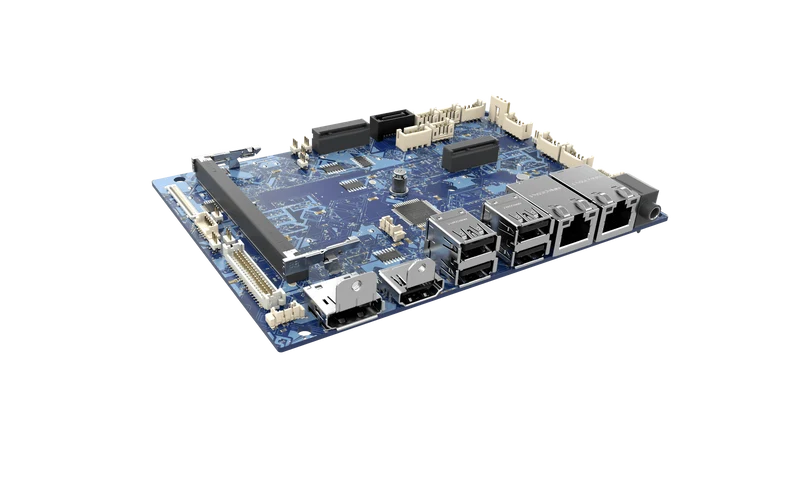

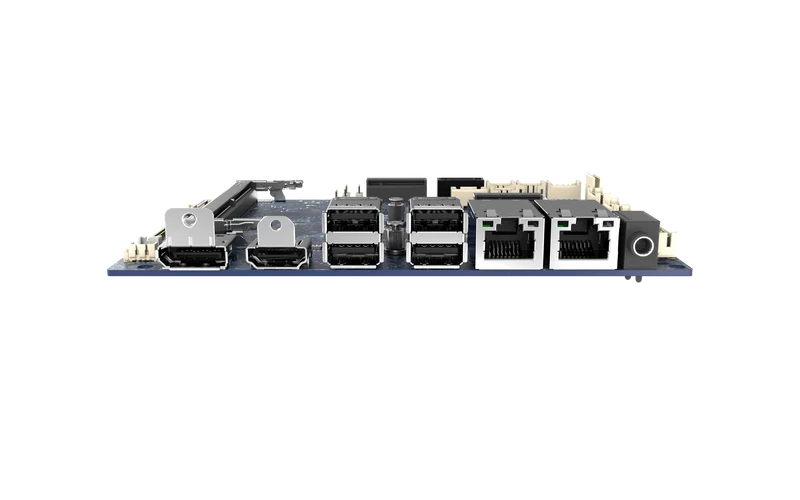

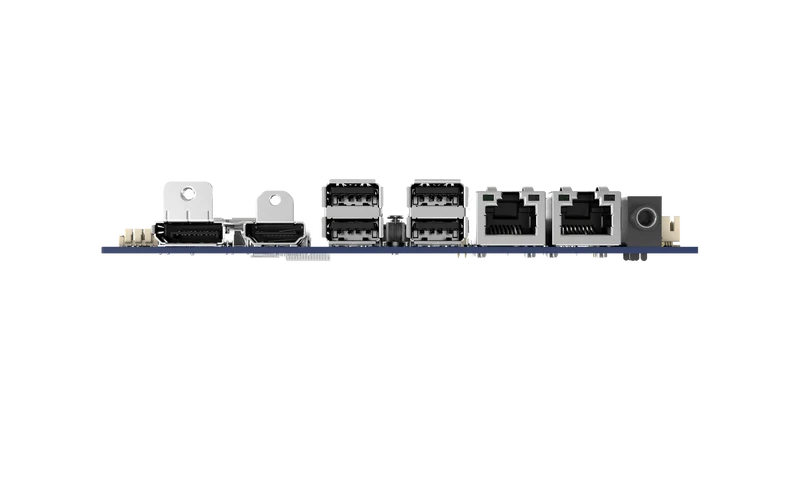

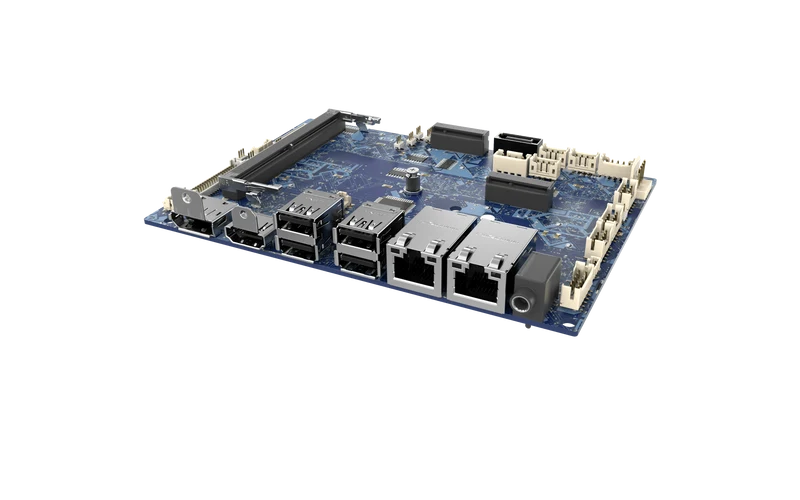

CT-DAL01 3.5" SBC Industrial Motherboard with Intel® 12th Gen Alder Lake-N Processors, 2x LAN
Descrizione
- Supports 12th Gen. Intel® IoTG Alder Lake-N Processors
- 1x 262-pin DDR5 4800 MT/s SO-DIMM. Max. 16GB
- 2x 2.5 GbE RJ45 LAN
- Triple independent display supported: DP, HDMI, LVDS, eDP
- 1x Front Panel with Audio support by internal header
- 1x M.2 B Key 2242/2280/3042, 1x M.2 E Key 2230
- 2x USB 3.2 Gen 2 (10Gbps), 2x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0 (internal)
- 1x RS-232/422/485, 1x RS-232 (internal), 1x 8-bit GPIO
- 1x SATA 3.0 6Gb/s (Support AHCI)
- Watchdog timer 1~256sec. system reset
- dTPM 2.0 Supported
- Wide Voltage DC-IN 9~36V
