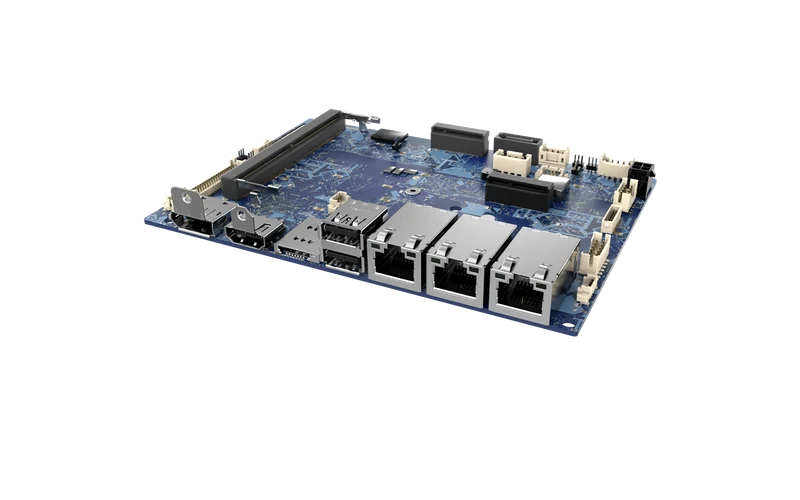

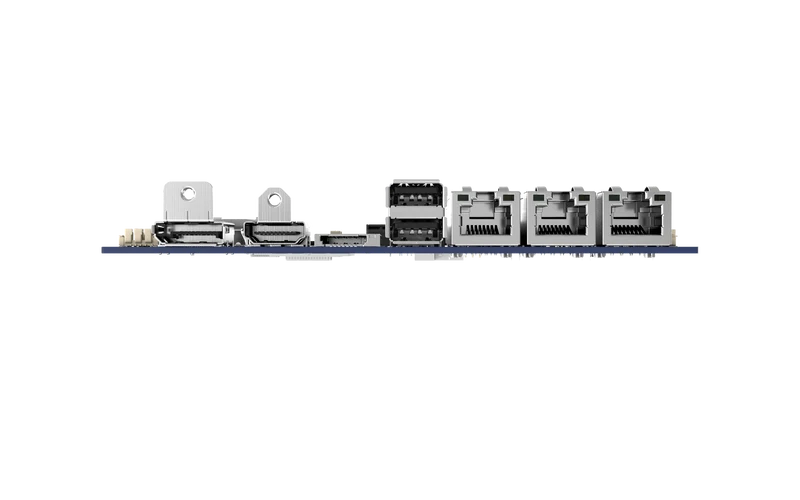

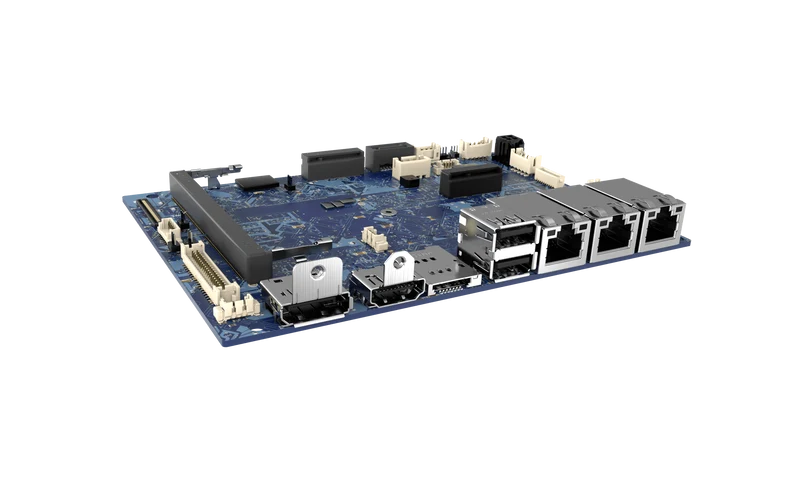

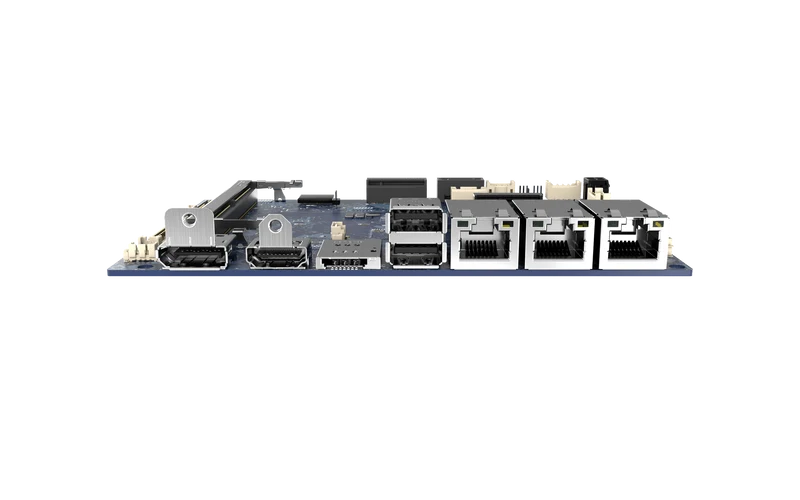

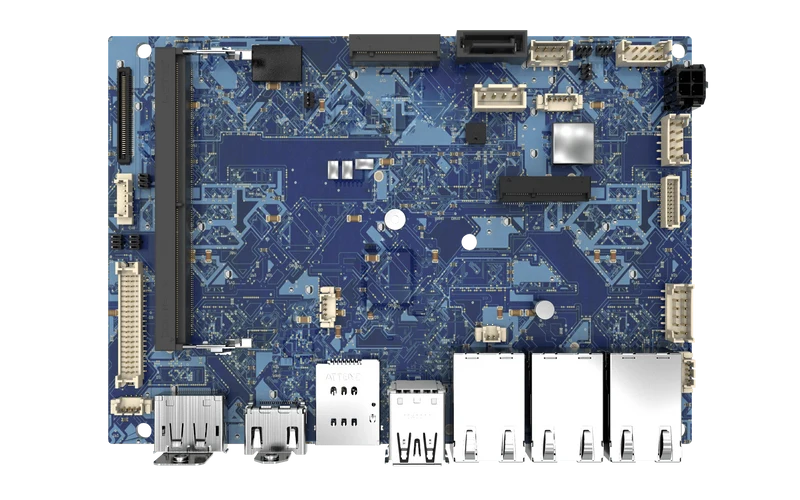

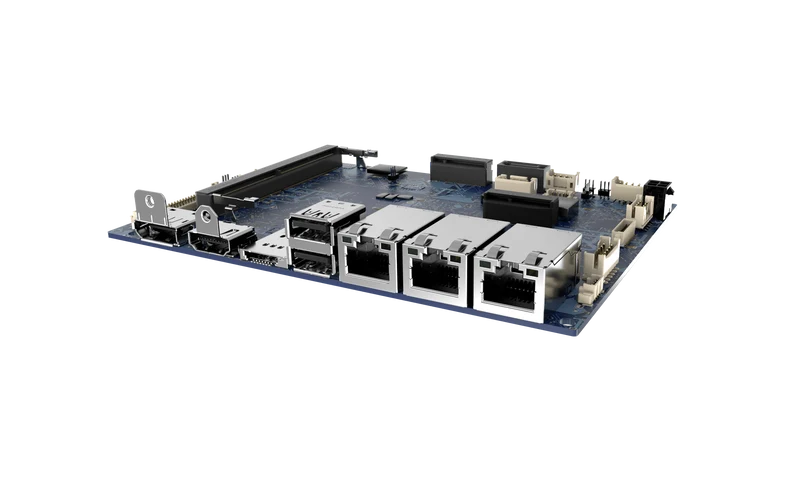

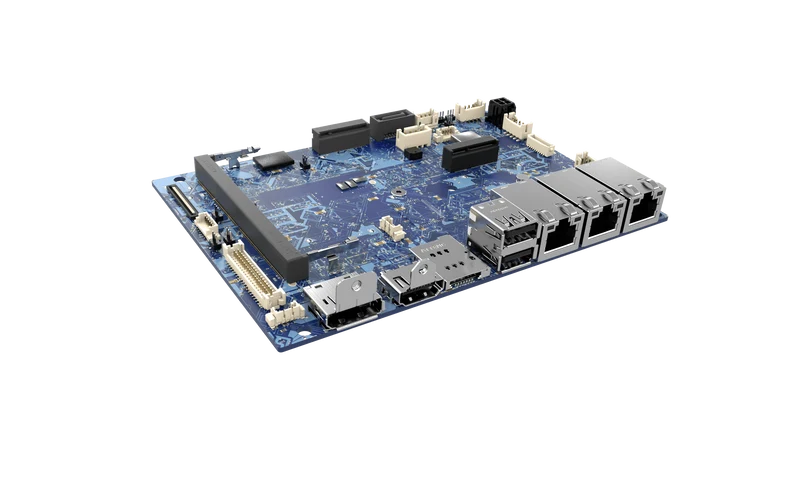

CT-DAL11 3.5" SBC Industrial Motherboard With Intel® Alder Lake N97/ Atom® x7835RE Processors, 3x 2.5GbE LAN, LTE/5G Dual Nano SIM Socket
Descrizione
- Supports Intel® N97/ Atom® x7835RE Processors
- 1x 262-pin DDR5 4800 MT/s SO-DIMM. Max. 16GB (Non-ECC)
- 3x Intel® i226V 2.5 GbE
- Triple independent displays supported: DP, HDMI, LVDS or eDP
- 1x Front Panel with Audio support by internal header
- 1x M.2 B Key 2242/3042 support for SATA SSD/4G/5G, 1x Dual Nano SIM Socket
- 2x USB 3.2 Gen 2 (10Gbps), 2x USB 2.0 (internal)
- 1x RS-232/422/485, 1x RS-232 (internal), 1x 8-bit GPIO
- 1x SATA 3.0 6Gb/s (Support AHCI)
- Watchdog timer 1~255 sec. System reset
- TPM 2.0 Supported
- Wide Voltage DC IN 12~36V
