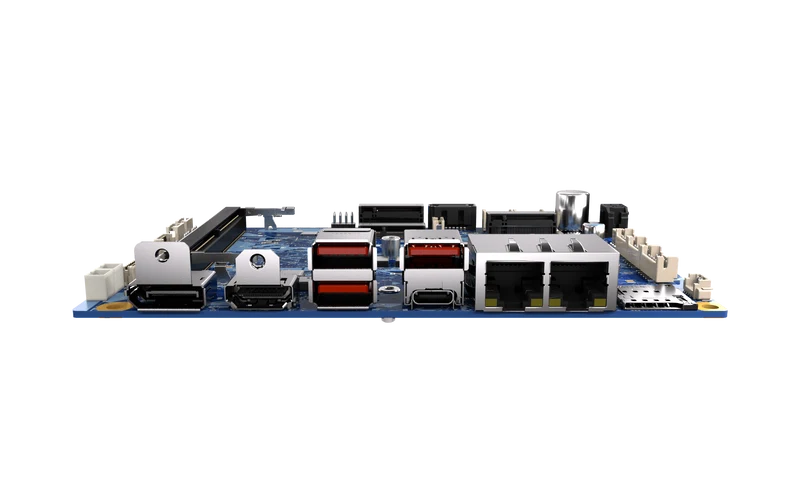

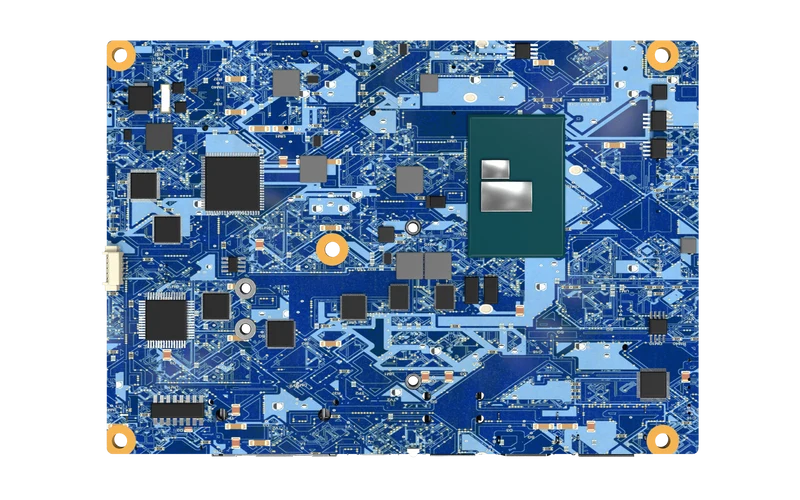

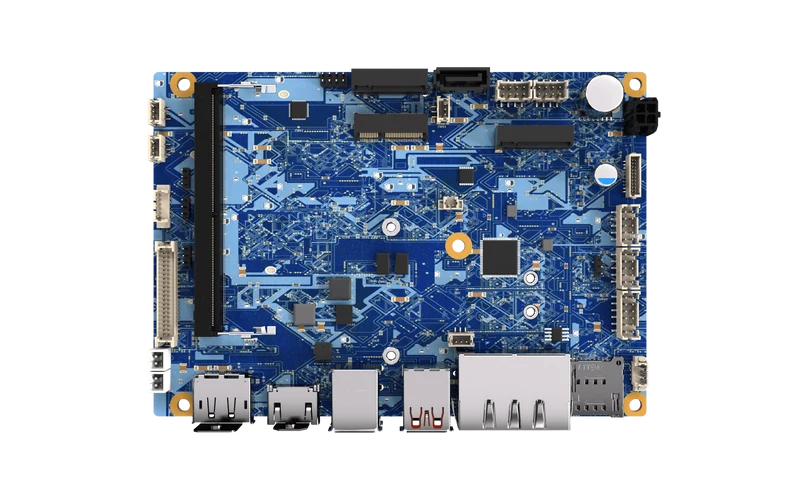

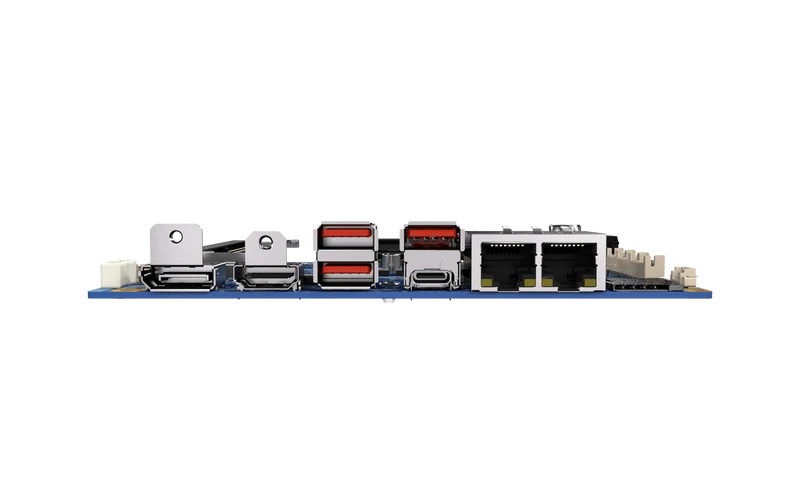

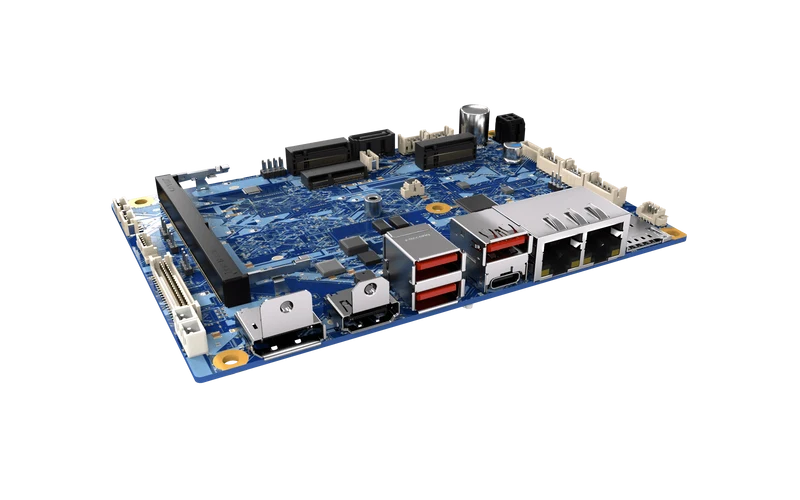

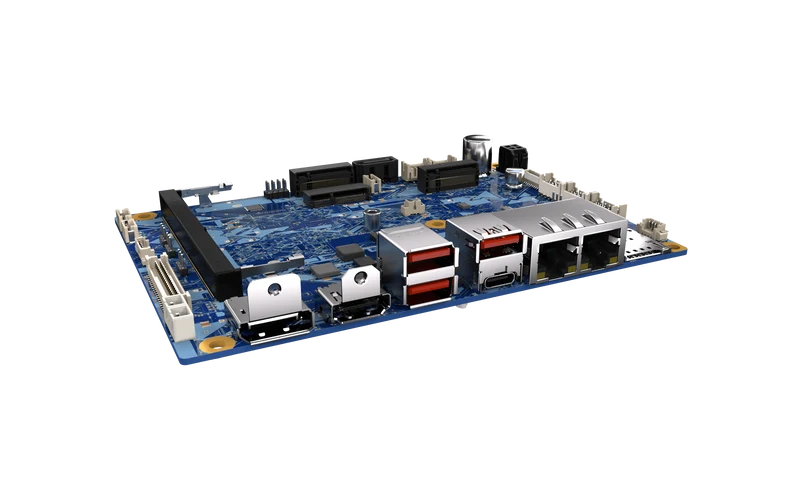

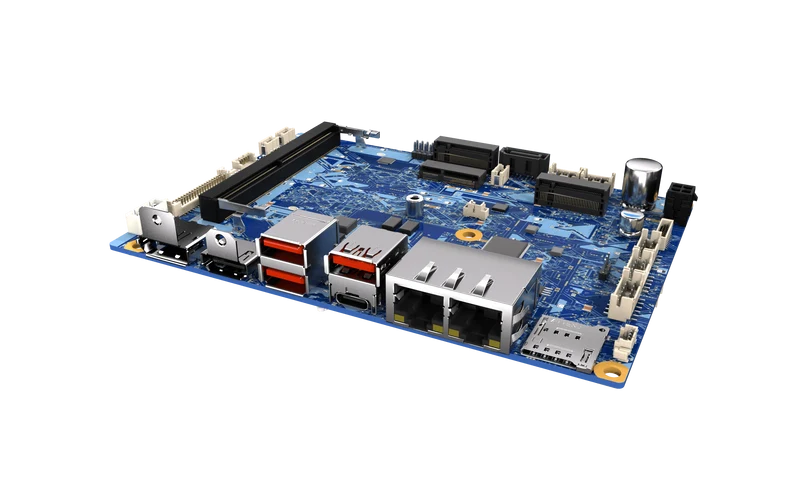

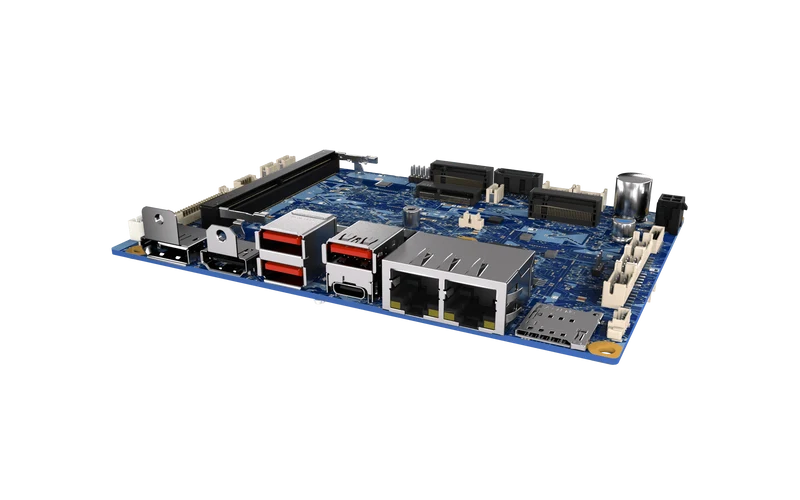

CT-DAS01 3.5" SBC Industrial Motherboard With Intel® Atom® x7835RE/x7433RE Processors, 2x 2.5GbE LAN, LTE/5G Nano SIM Socket
Descrizione
- Supports Intel® Atom® x7835RE/x7433RE Processors
- 1x 262-pin DDR5 4800 SO-DIMM. Max. up to 16GB (Non-ECC)
- 2x Intel® i226IT 2.5 GbE
- Triple independent displays supported: DP, HDMI, LVDS or eDP
- 1x M.2 M key 2280 NVMe, 1x M.2 E key 2230
- 1x M.2 B key 2242 NVMe/5G, 1x Dual Nano SIM Socket
- 2x USB 3.2 Gen 2 Type A, 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C, 3x USB 2.0 (Internal)
- 2x RS-232/422/485, 1x 8-bit GPIO non-isolation, 2x CAN FD
- 1x SATA 3.0 (6Gb/s, AHCI), shared with M.2 B-Key (either SATA or M.2 B-key)
- Watchdog timer 1~255 sec. System reset
- TPM 2.0 Supported
- Wide Operating Temperature -40°C to 85°C
- Wide Voltage DC IN 9~36V
