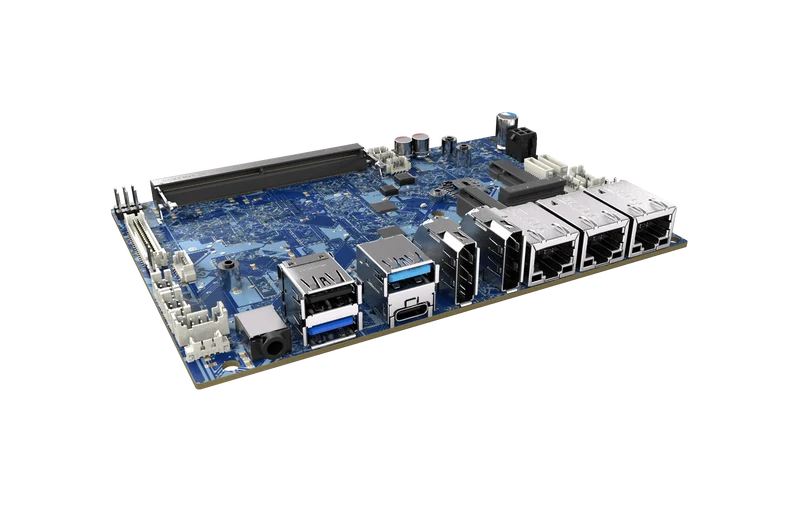

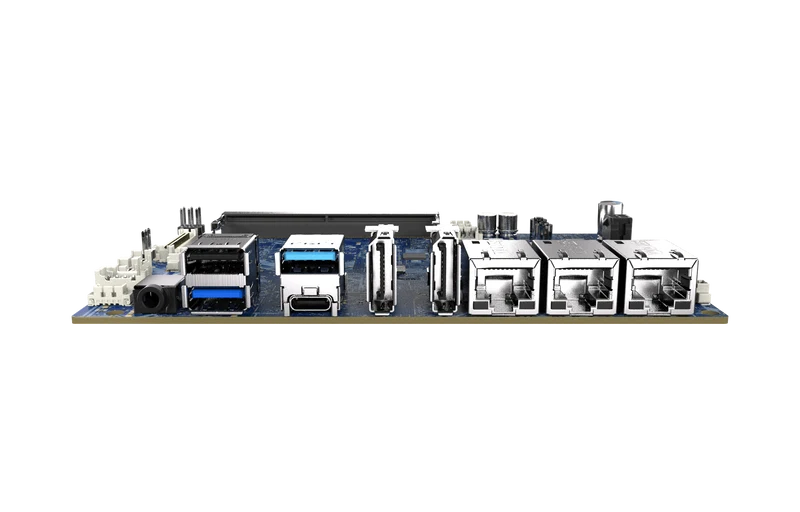

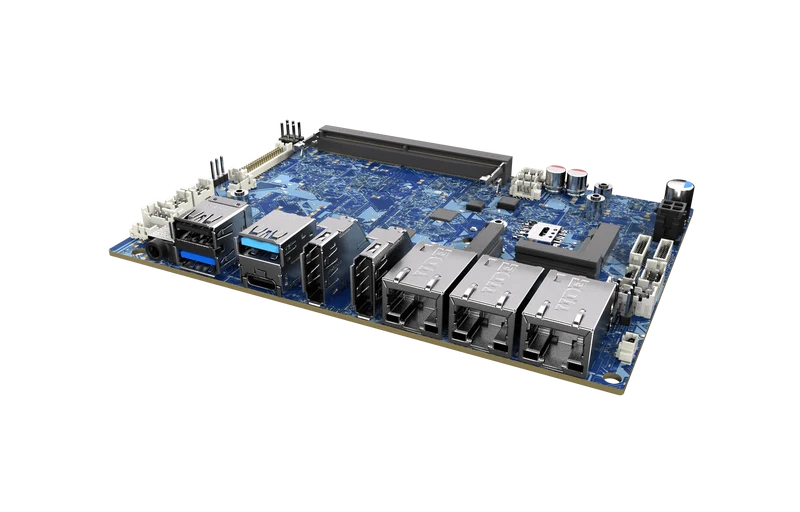

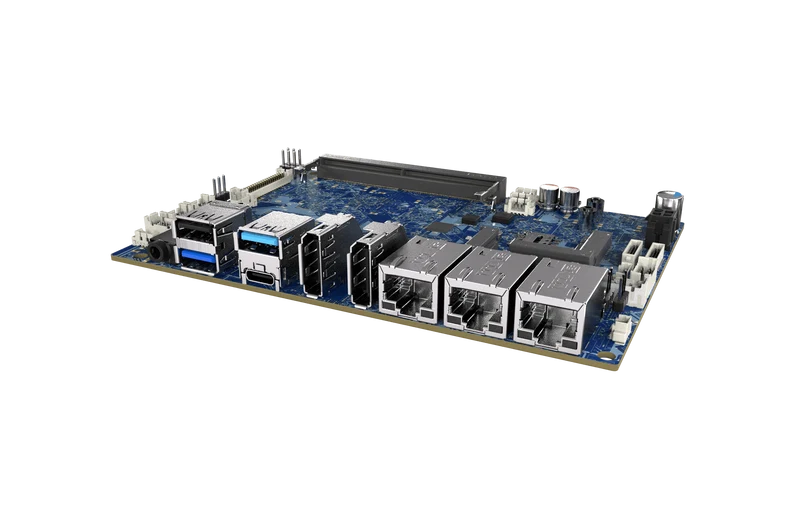

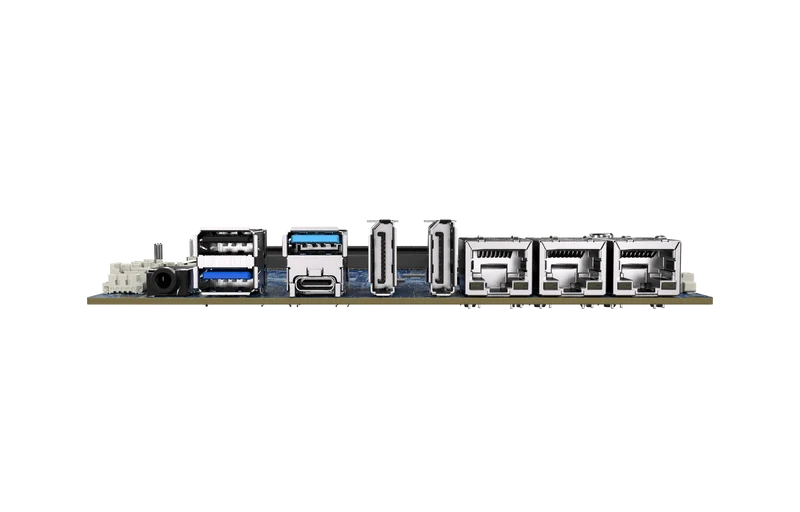

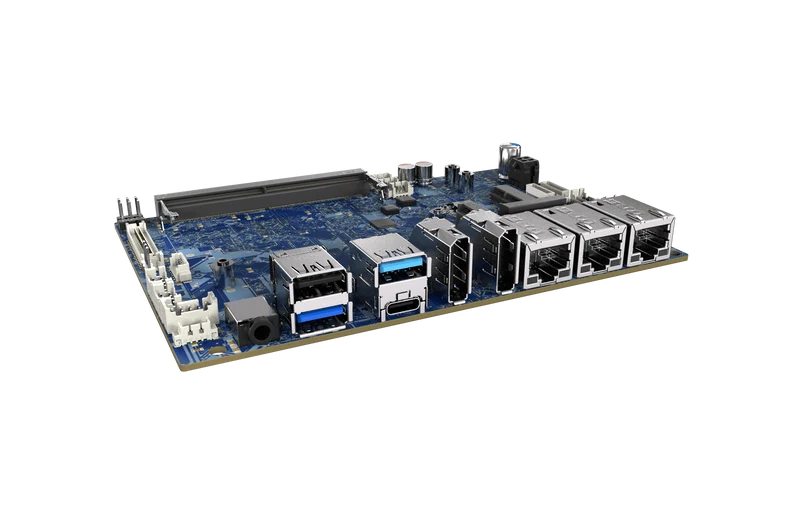

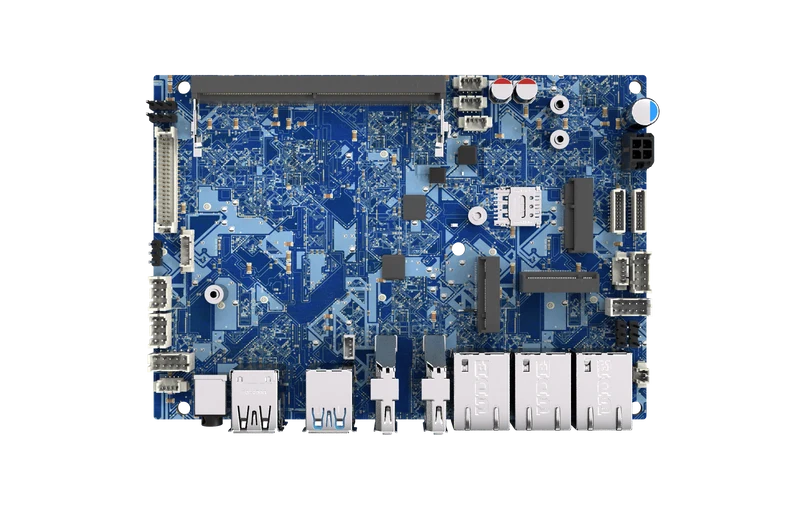

CT-DML01 3.5" SBC Industrial Motherboard With Intel® Core™ Ultra Series 1 Processors, Meteor Lake-U
Descrizione
- Supports Intel® Core™ Ultra Processors, Meteor Lake-U, TDP 15W
- 1x 262-pin DDR5 5600 SO-DIMM. Max. up to 48GB
- 3x Intel® 2.5 GbE
- Quad simultaneous display: 2x DP, LVDS, eDP
- 1x M.2 M Key for NVMe/ SATA, Auto detect
- 1x M.2 B Key for 4G/5G support, 1x M.2 E Key for Wifi/Bluetooth
- 2x SIM Nano Socket
- 1x USB Type-C Gen 1, 2x USB 3.2 Gen 1, 1x USB 2.0
- 4x Internal COM, 1x 8-bit GPIO
- Watchdog timer 1~255sec. system reset
- dTPM 2.0 Supported
- Wide Voltage DC IN 12~24V
