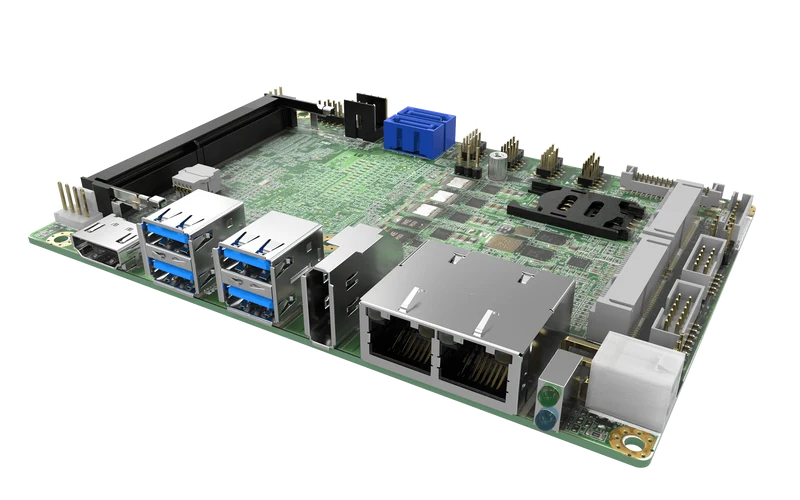

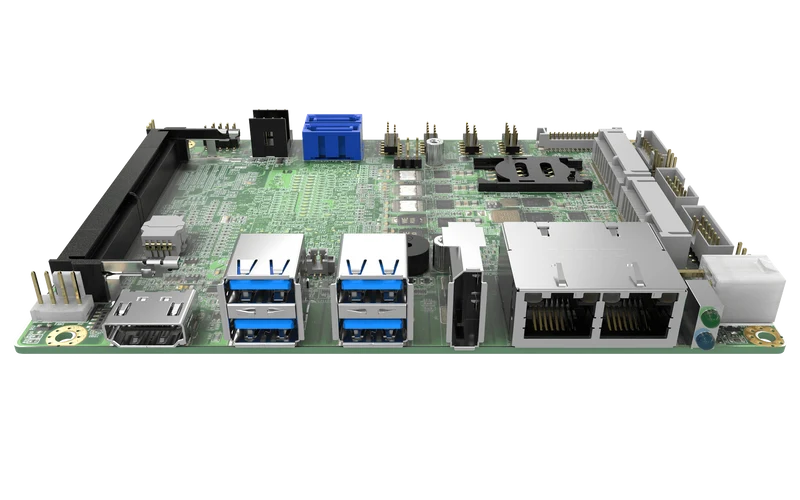

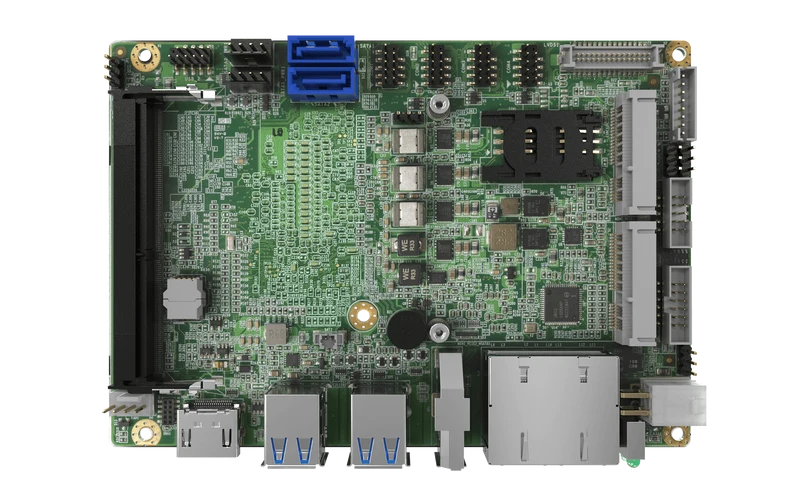

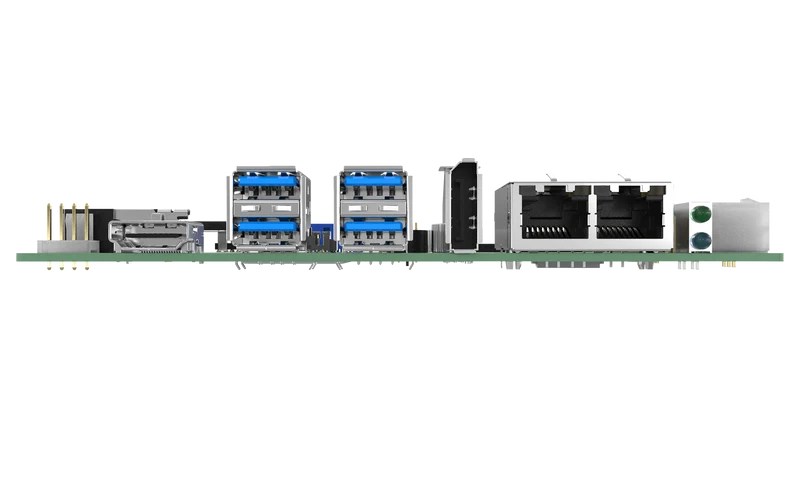

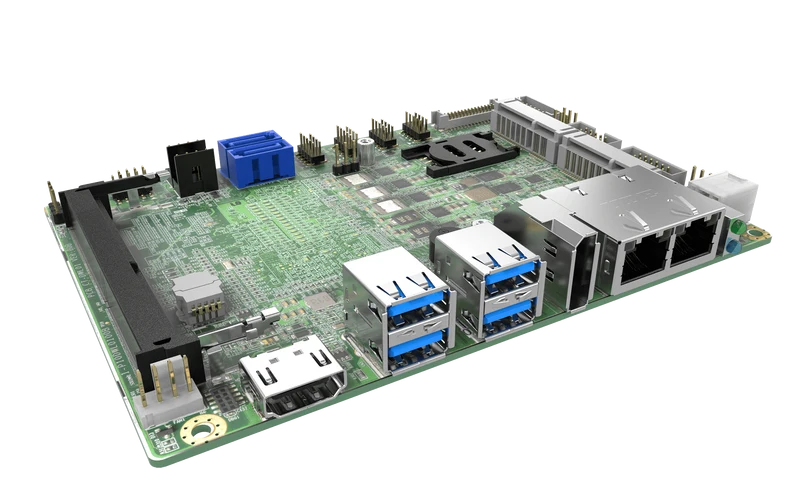

CT-DWL01 3.5" SBC Industrial Motherboard with 8th Gen. Intel® Core™ Processor
0,00 €
Descrizione
- Support 8th Gen. Intel® Core™ Mobile U Processor & Intel® Celeron® Processor
- 1x 260-pin DDR4 2400 SO-DIMM. Max. up to 32GB
- 2x Intel® GbE (Support Wake-on-LAN and PXE)
- Triple independent display supported
- 1x HDMI (Optional) support resolution 1920 x 1200,
- 1x DisplayPort support resolution 4096 x 1200,
- 1x Dual-channel, up to 24-bit LVDS optional 1x eDP via internal connector
- 1x Front Panel with Audio support by internal header
- 2x 4bit GPIO header
- 2x Mini PCI-e (Gen3) w/ SIM slot support
- 4x USB 3.2 Gen 2 (10Gbps), 4x RS-232/422/485 internal headers, 2x USB 2.0 internal header
- 2x SATA 6.0Gb/s
- Watchdog timer 1~225sec. system reset
- TPM 2.0 Supported
