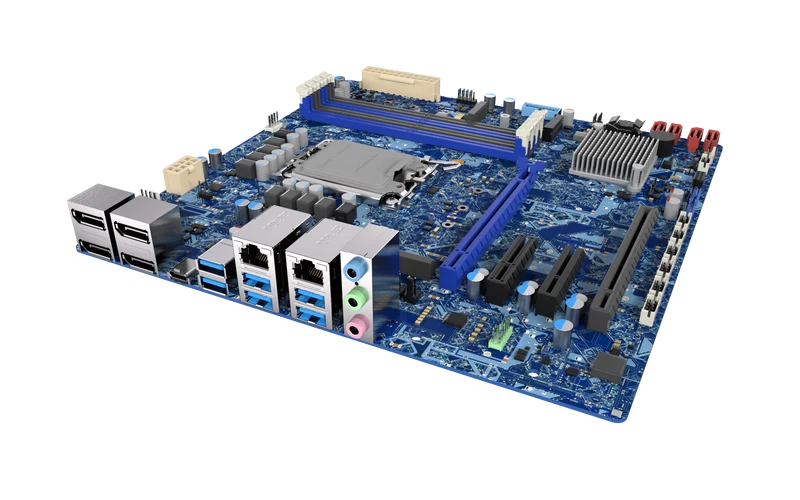

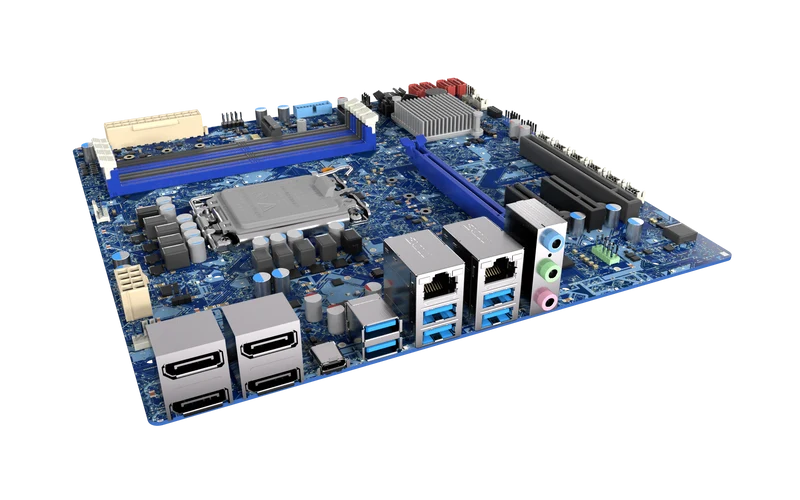

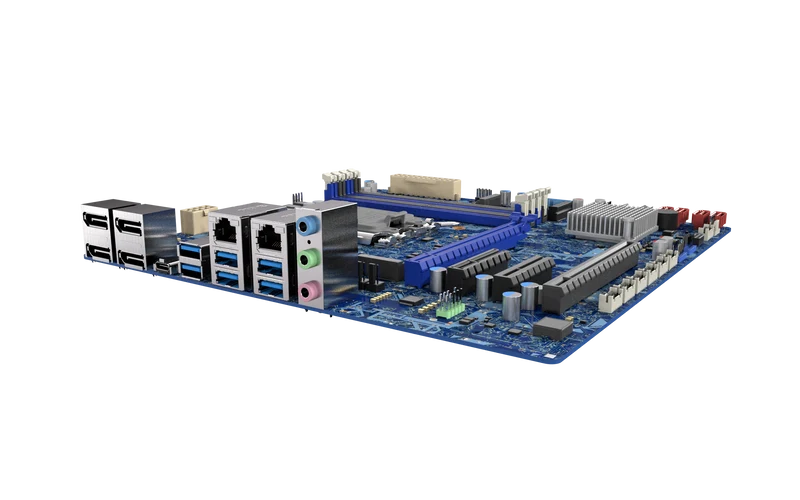

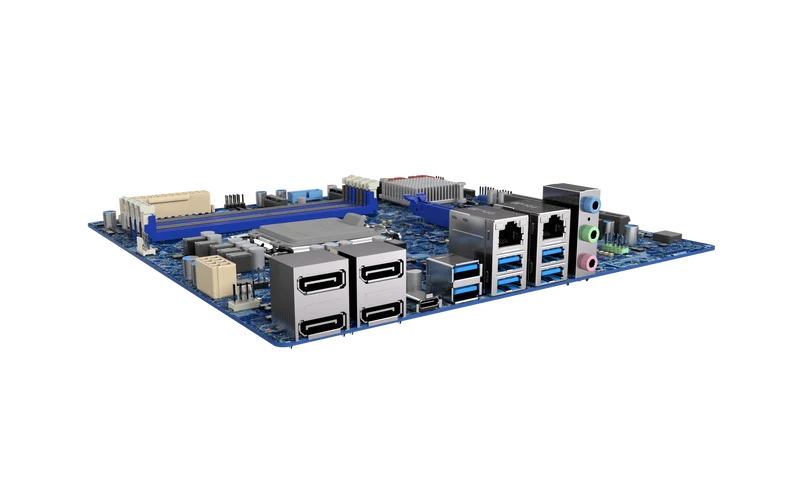

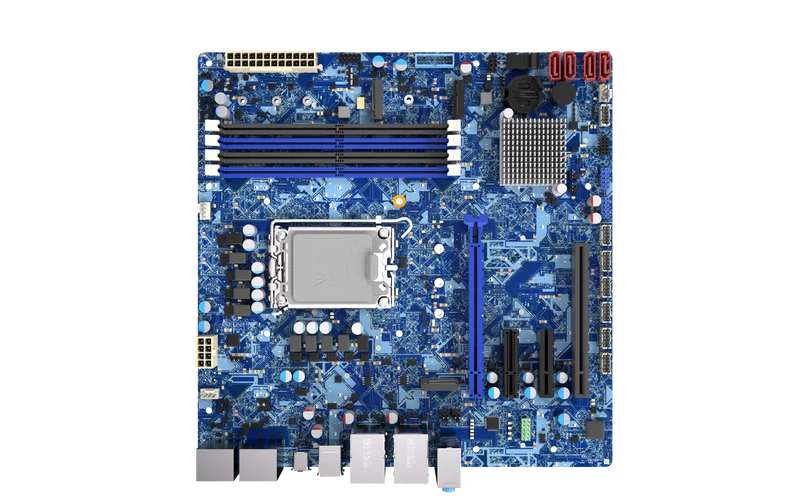

CT-MBL01 MicroATX Industrial Motherboard with LGA 1700 for Intel® Core™ Series 2/14th/13th/12th Gen Processors, Q670E PCH
Descrizione
- Support Intel® Core™ Series 2/14th/13th/12th Gen Processors
- Intel® Q670E chipset
- 4x DDR5 4400 MT/s UDIMM, up to 128GB
- 1x 1GbE, 1x 2.5GbE (Support Wake-on-LAN and PXE)
- 4 independent display supported DP++
- 1x PCIe x16 (Gen 5), 2x PCIe x4 (Gen4, Gen3),1x PCIe x16 (Gen 4)
- 2x M.2 (M Key, NVMe PCIe x4, SATA, 2242/2260/2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
- 6x RS232 (1x RS232/422/485 Internal), 2x USB 3.0 Gen 1, 4x USB 2.0 Internal header, 6x USB 3.1
- 4x SATA 6.0Gb/s
- TPM 2.0
