Fornitore: BVS
GW-E Factory Fanless Industrial Mini PC Intel Core i5 HD VGA/DP Dual Display Industrial Computer with Dual LAN,Wi-Fi Hotspot Optional
Descrizione
Overview &Key Features
【Model】BVS-GW-E
【Item】

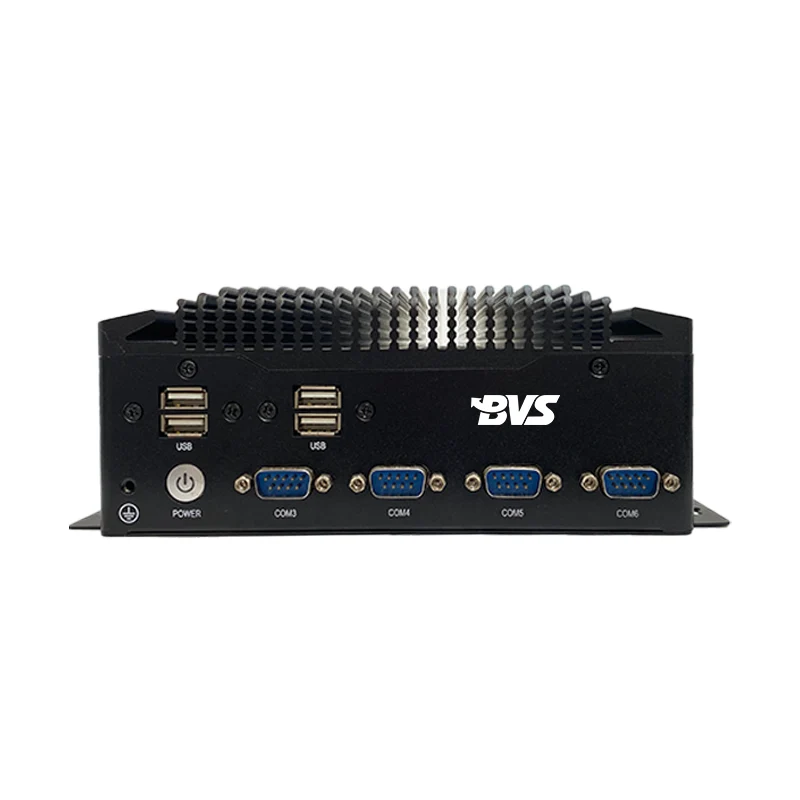

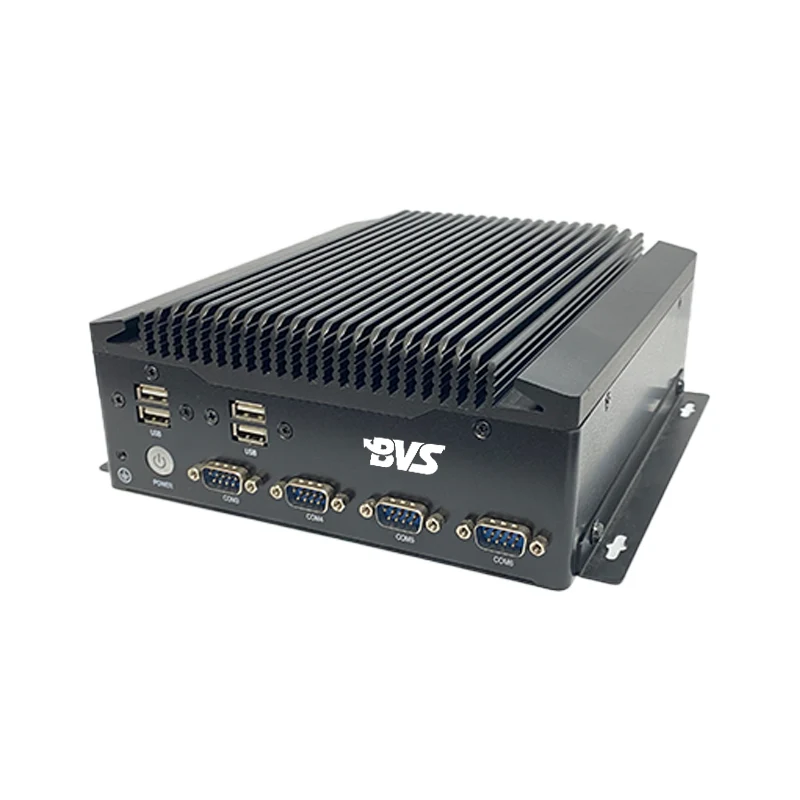

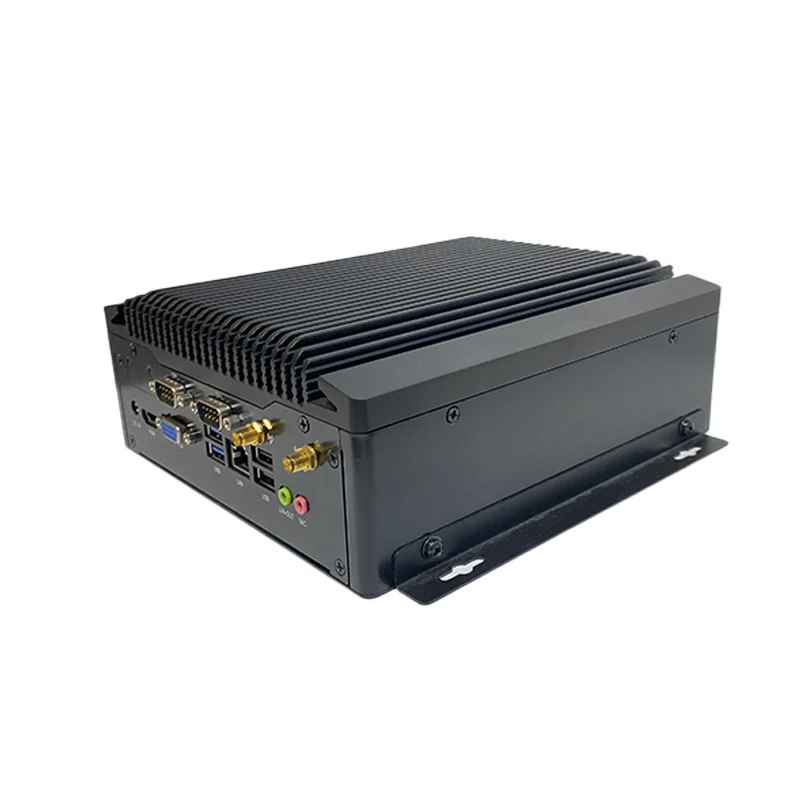

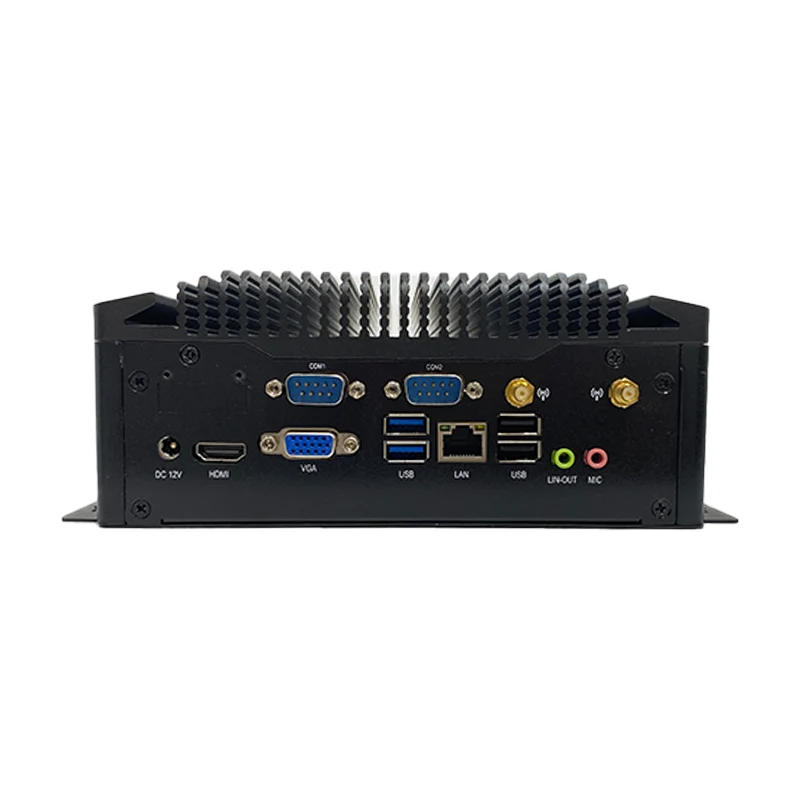

The BVS GW‑E is a compact fanless industrial mini PC built with a full black aluminum alloy enclosure for excellent heat dissipation and rugged reliability. Designed for 24/7 continuous operation in harsh industrial environments, this embedded box PC features a passive cooling fin‑structure design with zero fan noise and zero moving parts, greatly reducing failure risks. Powered by the 6th Generation Intel Core i5 processor, it runs stably with both Windows and Linux operating systems, delivering dependable computing performance for industrial automation, machine vision, kiosk, and IoT gateway scenarios.
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty:2-year standard warranty included.
【Paramater List】
| Standard | optional | ||||||||||
| System | CPU | Intel Core i3 8th Gen | i3 10th | ||||||||
| Total Cores | 2 | 4 | |||||||||
| Frequency | Processor Base Frequency 2.10 Ghz | Turbo Boost 4.10 Ghz | |||||||||
| RAM | DDR4 8GB | DDR4 16GB/32GB/64GB | |||||||||
| SSD | 128GB | 64GB/256GB/512GB/1TB | |||||||||
| Operating system | Pre-install Windows OS（Unactivated） | Linux | |||||||||
| Network | Wi-Fi | 2.4G-Wi-Fi, supporting Wi-Fi 802.11b/g/n protocols | 2.4G+5G-Wi-Fi | ||||||||
| Ethernet | Gigabit network port | / | |||||||||
| BT | / | Bluetooth 3.0/3.0+HS/4.0 | |||||||||
| Interfaces | USB | 8 | 6 | ||||||||
| COM | 2*(RS232) | 1*(RS232)+1*(RS485)/6*(RS232)/5*(RS232)+1*(RS485) | |||||||||
| HD | 1 | / | |||||||||
| VGA | 1 | VGA*0, DP*1 | |||||||||
| LAN | 1 | 2 | |||||||||
| Headphone | 1 | / | |||||||||
| DC | 1 | Phoenix terminal | |||||||||
| Power | 1 | Phoenix terminal | |||||||||
| Multi-Media | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | / | ||||||||
| Audio | MP3/WMA/AAC etc. | / | |||||||||
| Picture | jpeg, jpg | / | |||||||||
| Accessories | Adapter | 12V/7A | / | ||||||||
| Temperature | Working temperature | -10~ 60°C | / | ||||||||
| Storage temperature | -20 ~ 70°C | / | |||||||||
| Mounting | VESA Mount | / | （Swing Arm Mount/Ceiling Mount） | ||||||||
| Panel Mount | / | （Rear Flush Panel Mount） | |||||||||
| Rack Mount | Rack Ear | Desktop Stand Mount | |||||||||
| Packaging | Net weight | 3.26kg | / | ||||||||
| Gross weight | 4.8kg | / | |||||||||
| Product dimensions | 220*210*80mm（L*W*H） | / | |||||||||
| Single Unit Package Dimension | 430*355*140mm（L*W*H） | / | |||||||||
| Carton Dimension | 616*355*327（L*W*H）(Ctn Qty:4 pcs) | / | |||||||||
| Other functions | POE | NO | / | ||||||||
| OEM | Appearance, Interface, CPU, Logo, etc. | ||||||||||
Product Gallery
Applications
OEM / ODM Customization
