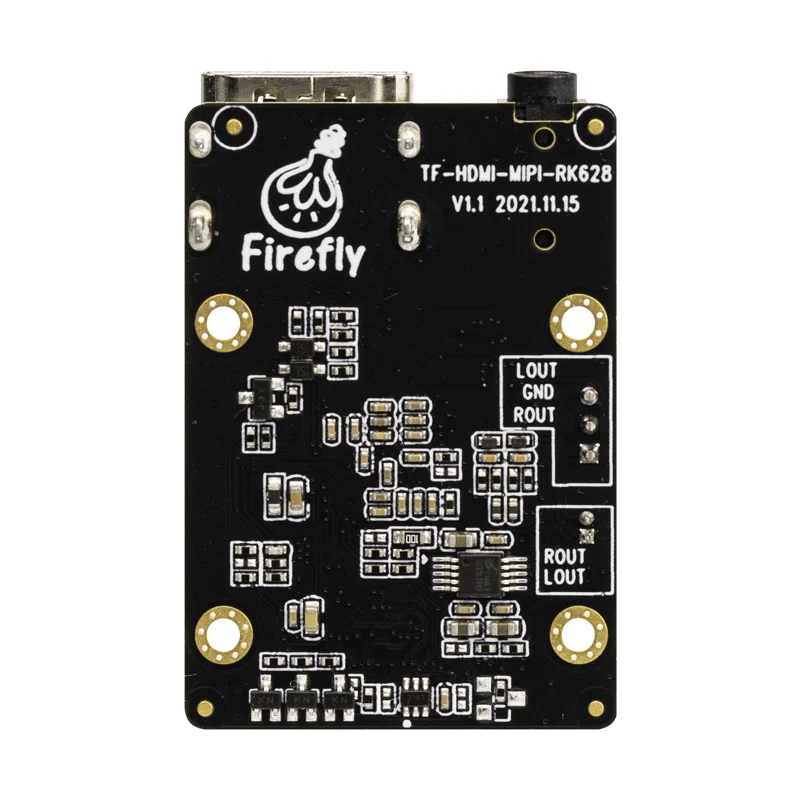

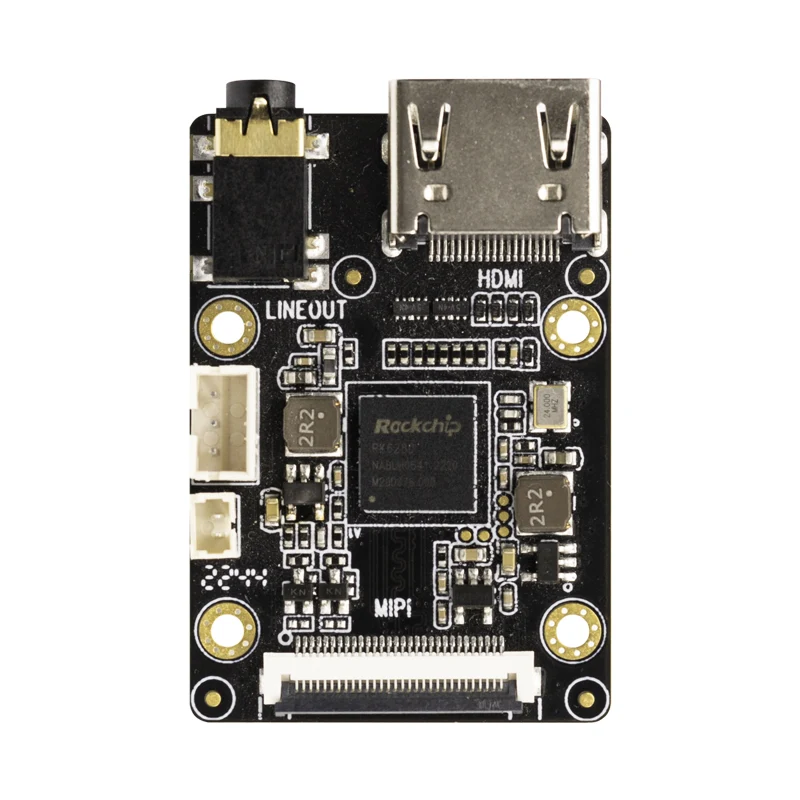

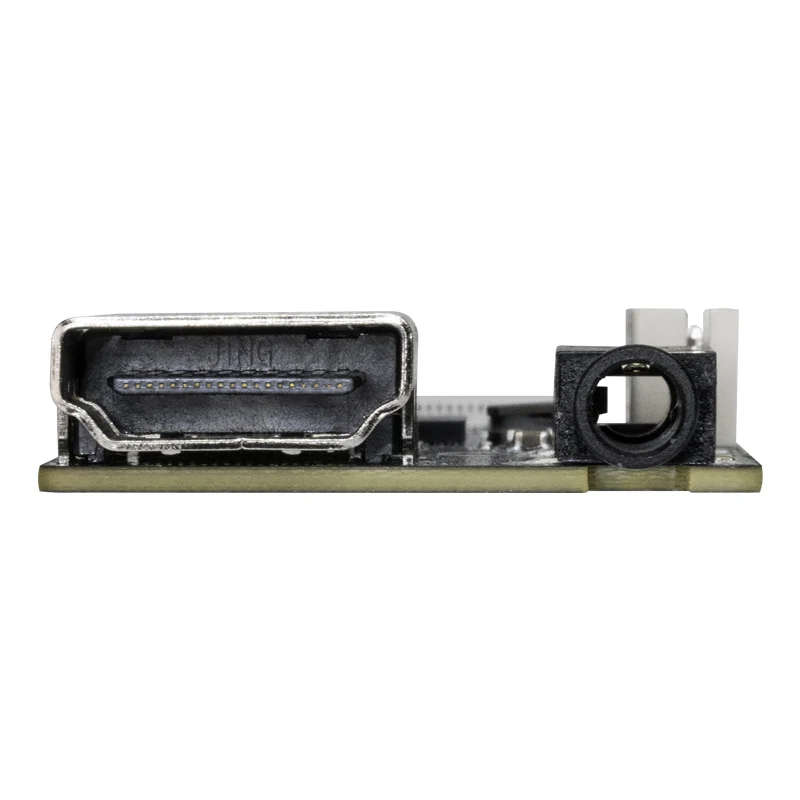

HDMI to MIPI CSI Driver Board Kit
Descrizione
The HDMI-to-MIPI-CSI driver board, utilizing the video bridge chip RK628D, enables the conversion of an HDMI video signal into a MIPI CSI signal. It is applied to intelligent micro-projectors, intelligent displays, video acquisition, and conversion products.
- Product Wiki: Click Here
Size: 43.5mm*30 mm
HDMI RX Interface:
- Compliant with HDMI 1.4/HDMI 2.0
- Supports 8/10bit per component video format
- Supports rgb888/yuv420
- Supports Max resolution 4K@60fps (yuv420)
MIPI CSI Interface:
- Compliant with MIPI DPHY V1.2
- Support Format: YUV422
- Support Resolution: 3840x2160@30fps, 1920x1080@60fps, 1280x720@60fps, 720x480@60fps
LINEOUT Interface:
- Same audio output: 3.5 mm headphone interface*1, 3P-2 mm*1, 2P-1.25 mm*1
