Fornitore: HIGOLEPC

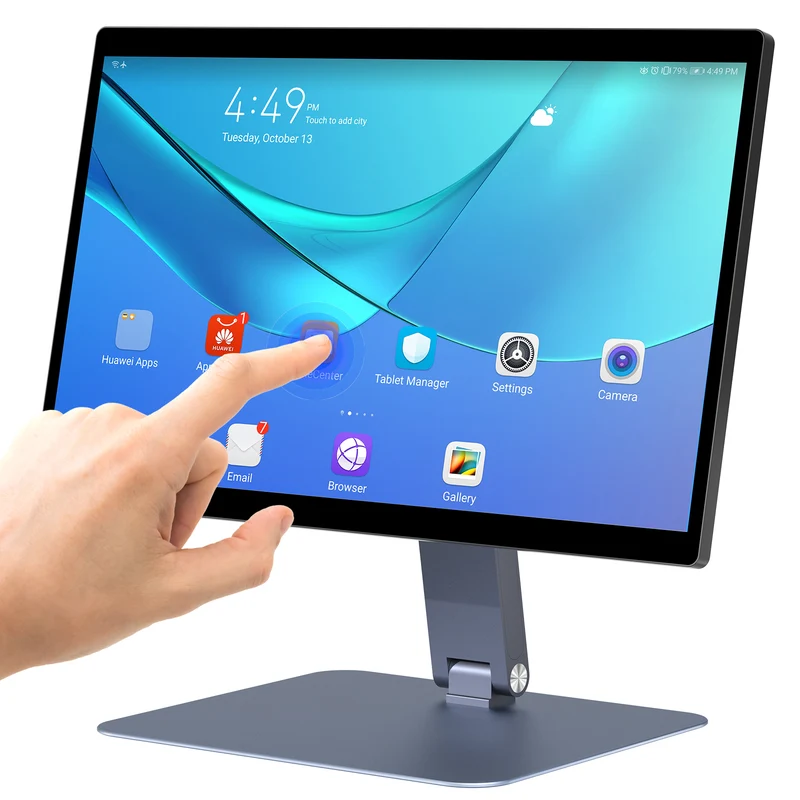

HIGOLE F15R 15.6" Android POS Terminal & All-in-One Panel PC
Descrizione
15.6" All-in-one PC Specifications
Touch Screen Android/Linux Optional
📦 Physical
🖥️ Display & Touch
🔋 Battery
⚙️ System Hardware
🌐 Network & Connectivity

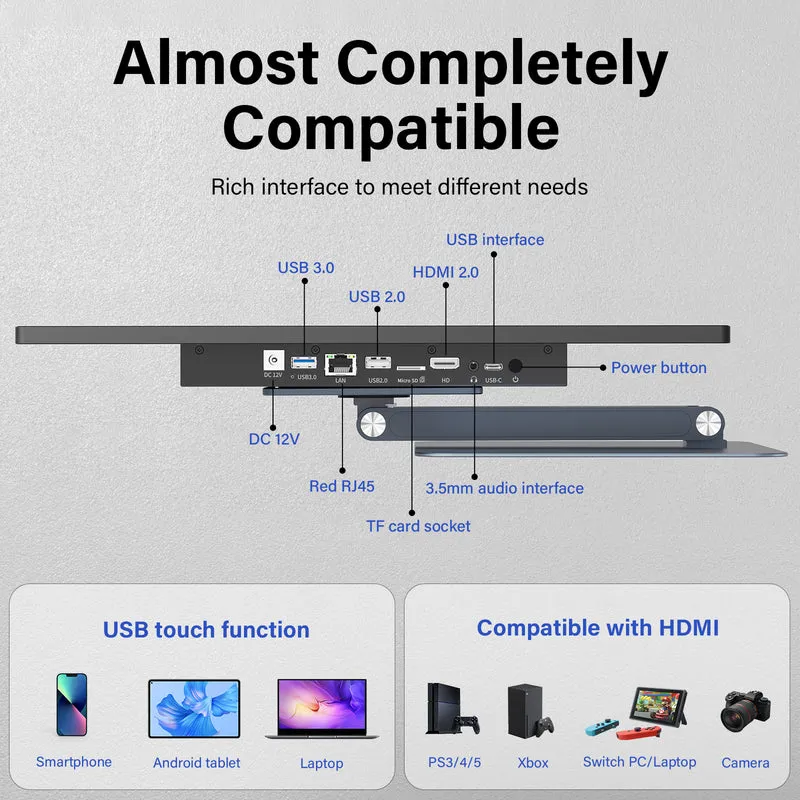

🔌 Interfaces & Ports
🔘 Buttons
🎁 Accessories
💻 Software & Environment
* Optional items can be customized per customer requirements.
| Form Factor | 15.6" All-in-one PC / POS Terminal |
|---|---|
| Dimensions | 358.9 × 222.2 × 38.1 mm |
| Weight | 1.6 KG |
| Screen Size | 15.6" |
|---|---|
| Resolution | 1920 × 1080 (IPS) |
| Touch Module | G+G Multi-Touch |
| Type | / |
|---|
| CPU | RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53, up to 1.8GHz |
|---|---|
| GPU | Mali-T864 GPU |
| Memory | 4GB |
| Storage | 64GB eMMC, Optional TF Card |
| Speaker | 4Ω/2W, built-in |
| Microphone | Optional, built-in |
| G-sensor | Yes |
| Wi-Fi | WIFI 802.11b/g/n 2.4G |
|---|---|
| Bluetooth | Bluetooth 4.0 |
| Ethernet | RJ-45, 1000 Mbps Gigabit LAN |
| 4G LTE | Optional via Expansion Board |
| USB 3.0 | ×1pcs |
|---|---|
| USB 2.0 | ×1pcs |
| SD / TF Card | TF Card reader ×1 (up to 256GB) |
| Audio Jack | 3.5mm headphone ×1 |
| HDMI | HDMI 2.0 ×1 (Support 4K@60fps) |
| RTC | RTC Hardware Clock ×1 |
| COM Port | / |
| Power | On/Off ×1 |
|---|---|
| Volume | / |
| Restart | Restart by Short Press ×1 |
| Power Adapter | DC DC 12V/3A ×1 |
|---|---|
| User Manual | ×1 |
| Power on Function | By Power Button or Auto Power on (Optional) |
|---|---|
| Power on/off by RTC | Optional |
| Operating System | Android12 |
| Operation Temp | -10°C ~ 50°C |
| Storage Temp | -20°C ~ 70°C |
| Humidity | Operating: 35%~80%, Storage: 20%~93% Non-condensing |
| CE | Optional |
