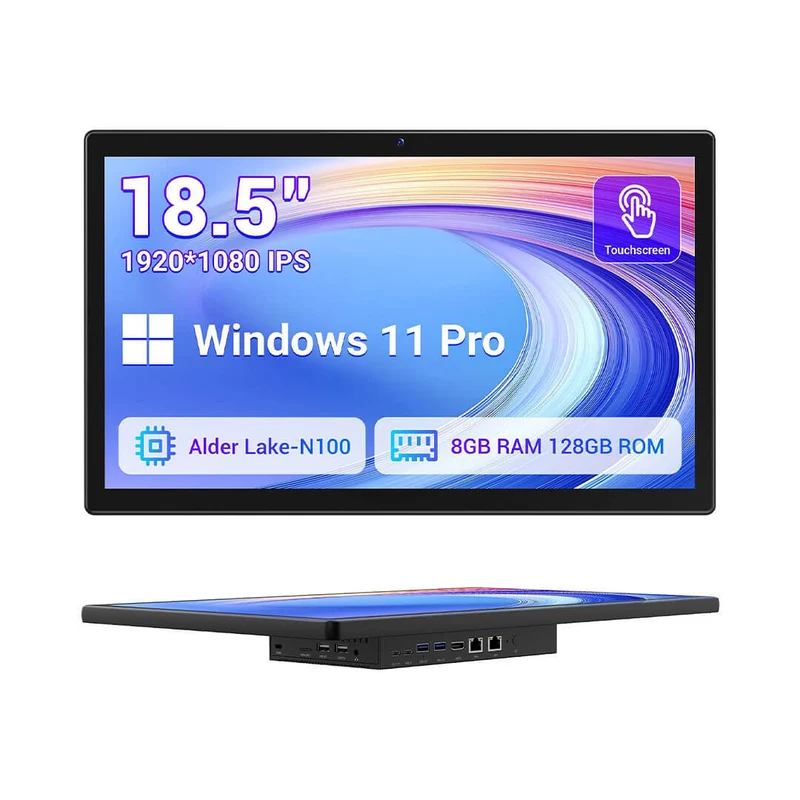

HIGOLEPC F18 18.5" Industrial Touchscreen Panel PC, Intel N100, 8GB/128GB, Windows 11 Pro, Dual 2.5GbE

HIGOLEPC F18 18.5" Touchscreen Panel PC Specifications Intel Alder Lake-N100 Windows 11 Pro 8GB LPDDR5 + 128GB eMMC 18.5" Full HD IPS Display G+G 5-Point Touch Dual 2.5GbE LAN HDMI 2.1 Full-Function Type-C 3.1 Wi-Fi 5 Bluetooth 4.2 Physical Specifications

Product Model	HIGOLEPC F18
Product Configuration	Intel N100 + 8GB RAM + 128GB storage + 18.5" PC tablet
Product Form	18.5" PC tablet / touchscreen all-in-one computer
Dimensions	441.2 × 269.8 × 43.9 mm
Weight	3.1 kg

Display & Touch

Display Size	18.5 inches
Panel Type	IPS
Screen Resolution	1920 × 1080 Full HD
Screen Brightness	300 ANSI
Viewing Angle	178° horizontal and vertical viewing angle
Touch Technology	G+G capacitive touchscreen
Multi-Touch	5-point touch

System Hardware

Processor	12th Gen Intel Alder Lake-N100
CPU Cores	Quad-core
Maximum Frequency	Up to 3.4GHz
Graphics	Intel UHD Graphics
Memory	8GB LPDDR5
Storage	128GB eMMC
Speaker	Built-in 8Ω / 1W speaker
G-Sensor	Built-in

Network & Wireless Connectivity

Wireless Module	Intel 3165 / 7265
Wi-Fi	Dual-band 1T1R 802.11ac Wi-Fi 5
Bluetooth	Bluetooth 4.2
Ethernet	Dual 2.5GbE LAN
Ethernet Ports	2 × RJ45
LAN Controller	Realtek RTL8125BG-CG

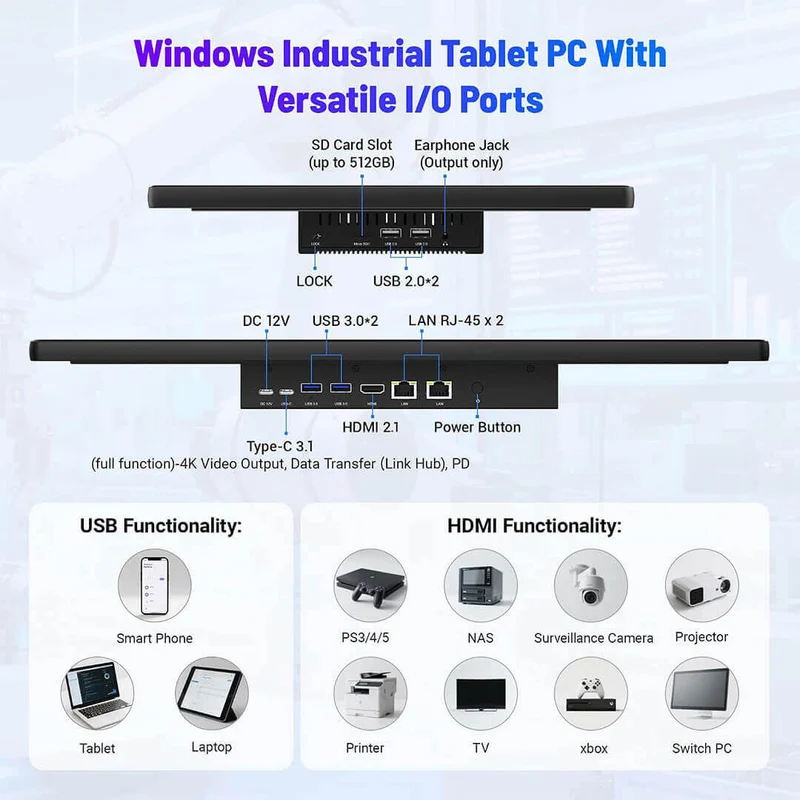

Interfaces & Ports

USB 3.2	USB 3.2 Type-A × 2
USB 2.0	USB 2.0 Type-A × 2
USB Type-C	Type-C 3.1 × 1 (full functionality)
HDMI	HDMI 2.1 × 1
Ethernet Ports	2 × RJ45 2.5GbE LAN
SD / TF Card Reader	TF card reader × 1, supports up to 512GB
Audio Jack	3.5mm headphone and microphone combo jack × 1

Buttons & Controls

Power Button	Power ON / OFF × 1
Forced Restart Button	Forced shutdown and power restart button × 1

Software & System Features

Operating System	Windows 11 Pro (official Windows licence is optional)
Power-On Function	Power button or Auto Power On (Auto Power On is optional)
Wake on LAN	Wake on LAN via RJ45
PXE Boot	Supported

Environmental Conditions

Operating Temperature	-10°C to 55°C (1080p or 4K local video playback)
Storage Temperature	-10°C to 70°C (restore to operating temperature for 2 hours before use)
Operating Humidity	35% to 80% relative humidity, non-condensing
Storage Humidity	20% to 93% relative humidity, non-condensing

Included Accessories

Power Adapter	DC 12V / 5A × 1
User Manual	× 1

Certification

CE-RED	Optional

* The standard configuration shown on this page includes an Intel Alder Lake-N100 processor, 8GB LPDDR5 memory, 128GB eMMC storage, an 18.5-inch 1920 × 1080 IPS touchscreen, dual 2.5GbE LAN, HDMI 2.1, Type-C 3.1, Wi-Fi 5 and Bluetooth 4.2. Auto Power On, the official Windows licence and CE-RED certification are optional. Specifications and accessories may vary according to the confirmed order configuration.
