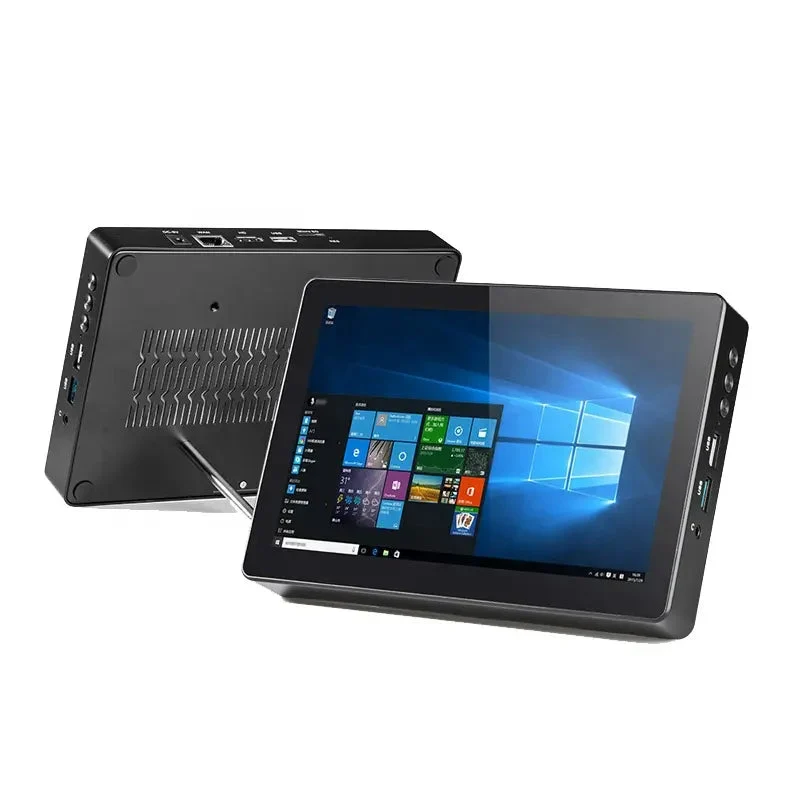

HIGOLEPC F3APL 8" Industrial Touchscreen Mini PC, Intel J3455, 4GB + 64GB, Fanless

HIGOLEPC F3APL 8" Touchscreen Mini All-in-One PC Specifications Intel Celeron J3455 4GB LPDDR4 + 64GB eMMC 8" IPS Touchscreen 1280 × 800 Fanless Design Gigabit LAN HDMI 1.4 / Up to 4K Dual-Band Wi-Fi Bluetooth 4.2 Wake on LAN + PXE Physical Specifications

Product Model	HIGOLEPC F3APL
Product Type	8" Touchscreen Mini All-in-One PC
Form Factor	Compact integrated touchscreen mini PC

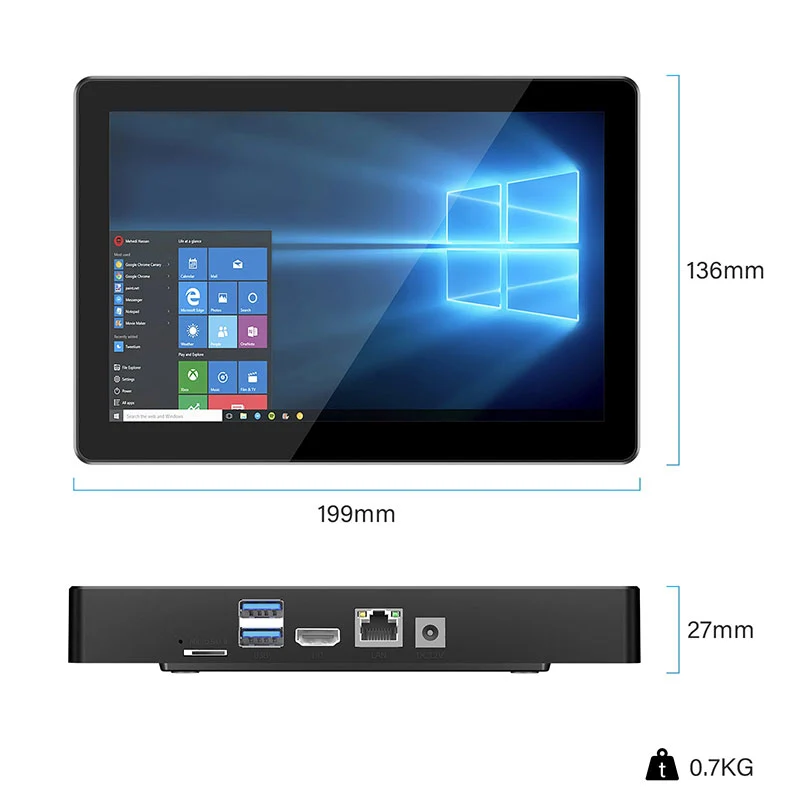

Dimensions	199 × 136 × 27 mm
Weight	0.7 kg
Cooling Design	Fanless design

Display & Touch

Display Size	8 inches
Panel Type	IPS
Screen Resolution	1280 × 800
Brightness	250 ANSI
Touch Technology	G+G capacitive multi-touch

System Hardware

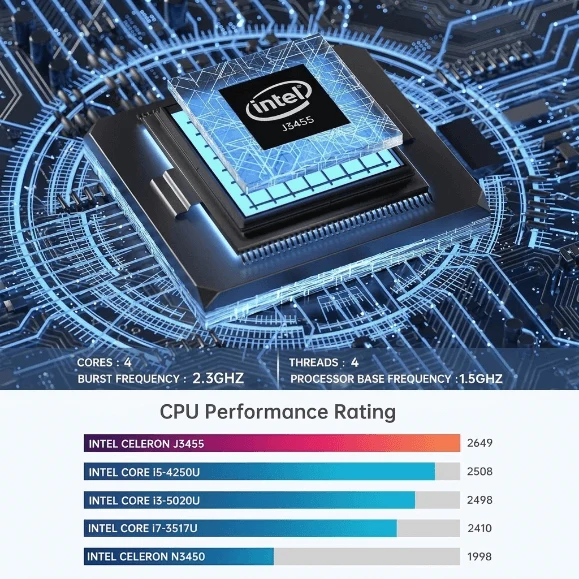

Processor	Intel Celeron J3455
CPU Cores / Threads	4 cores / 4 threads
CPU Frequency	1.5GHz base frequency, up to 2.3GHz burst frequency
Memory	4GB LPDDR4
Built-in Storage	64GB eMMC
M.2 SSD Expansion	M.2 2242 SSD (optional)
2.5" SATA Storage	2.5" SATA HDD (optional)
Speaker	Built-in 8Ω / 1W
Microphone	Built-in microphone (optional)
G-Sensor	Built-in

Battery & Power

Built-in Battery	Rechargeable Li-ion battery (optional)
Power Adapter	DC 12V / 2A
Power-On Mode	Power button or Auto Power On (Auto Power On optional)

Network & Wireless Connectivity

Wireless Module	Intel AC3165
Wi-Fi	802.11ac / b / g / n, 2.4GHz + 5GHz dual-band
Bluetooth	Bluetooth 4.2
Ethernet	RJ45 Gigabit LAN, 100 / 1000Mbps
4G LTE	M.2 4G module (optional)
Wake on LAN	Supported via RJ45
PXE Boot	Supported

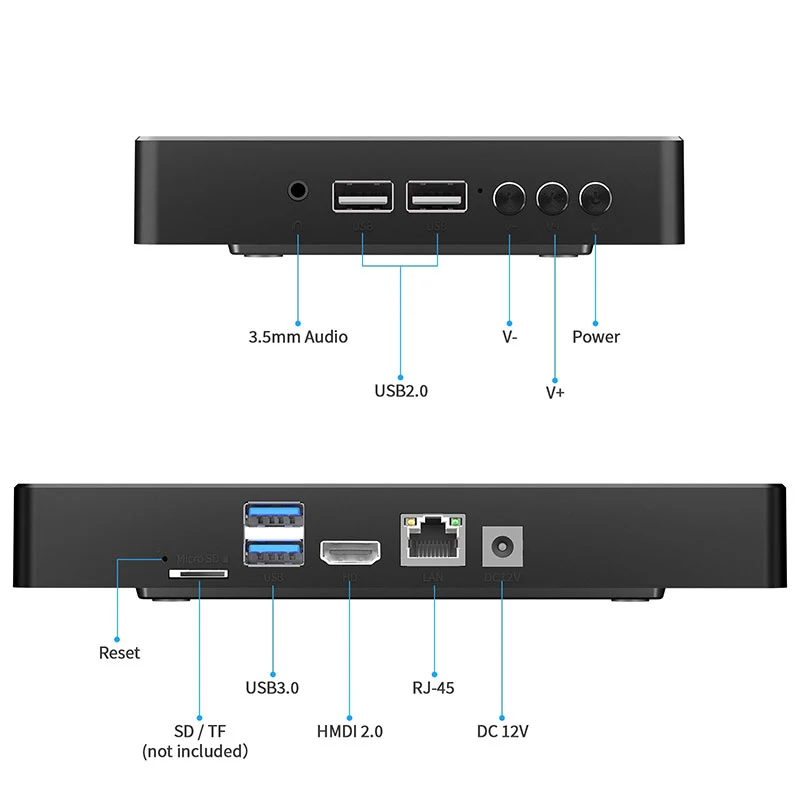

Interfaces & Ports

USB 3.0	USB 3.0 Type-A × 2
USB 2.0	USB 2.0 Type-A × 2
HDMI	HDMI 1.4 × 1
HDMI Video Output	Supports up to 4K video output
Ethernet Port	RJ45 Gigabit LAN × 1
SD / TF Card	TF card reader × 1
Audio Jack	3.5mm headphone output × 1

Buttons & Controls

Power Button	Power ON / OFF × 1
Volume Control	Volume Down / Up × 1
CMOS Reset	Short-press reset (optional)

Business & System Features

Auto Power On	Available (optional configuration)
Wake on LAN	Supported
PXE Boot	Supported
Windows	Windows 10 (optional)
Linux	Linux compatibility should be tested by the end user

Environmental Conditions

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 70°C (restore to operating temperature for 2 hours before use)
Operating Humidity	35% to 80% relative humidity, non-condensing
Storage Humidity	20% to 93% relative humidity, non-condensing

Included Accessories

Power Adapter	DC 12V / 2A × 1
User Manual	× 1

Certification

CE	Available (optional)

* The standard configuration shown on this page includes an Intel Celeron J3455 processor, 4GB LPDDR4 memory, 64GB eMMC storage, an 8-inch 1280 × 800 IPS touchscreen, dual-band Wi-Fi, Bluetooth 4.2, Gigabit Ethernet, HDMI 1.4 and a fanless design. Rechargeable battery, M.2 SSD, 2.5-inch SATA storage, 4G LTE, Auto Power On, Windows, microphone and certification options may depend on the confirmed configuration. Please confirm project-specific requirements before ordering.
