Fornitore: BVS

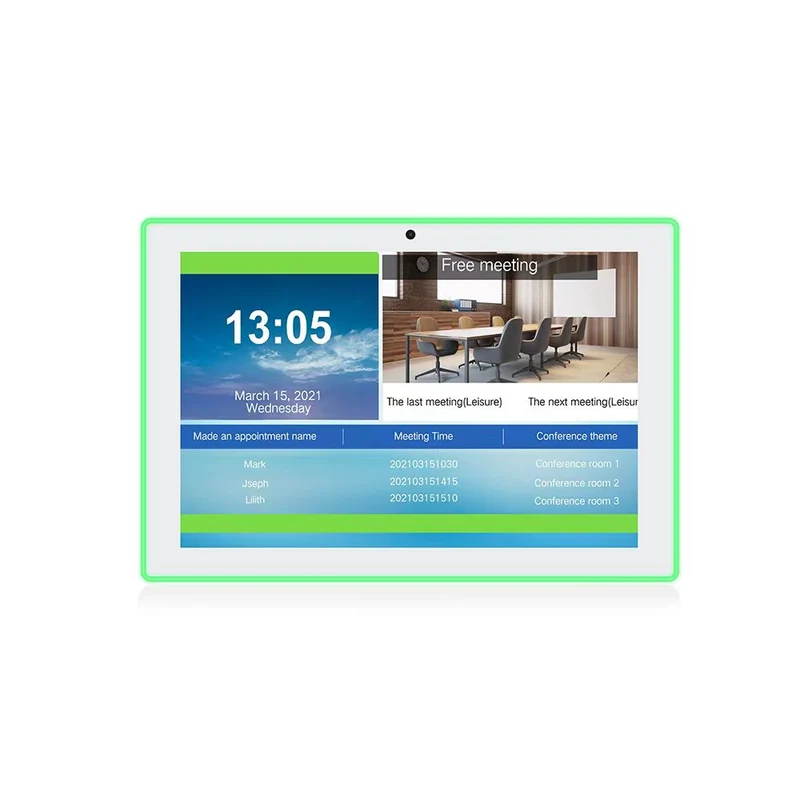

HY101 10.1'' Android POE Touch Tablet with Light – Wall-Mounted Control Panel, USB LAN TF card and 2MP Std Optional 5MP/8MP Camera
Descrizione
【Model】BVS-HY101
【Item】
HY101 10.1" Android POE Touch Tablet – Wall-Mounted Control Panel with Illuminated Frame
Powered by POE for streamlined single-cable installation, the HY101 features a 10.1" responsive touchscreen and customizable interfaces—ideal for smart buildings, hospitality, offices, and commercial automation systems.The illuminated frame adds a premium visual cue, perfect for room status indication or ambient guidance.Equipped with a standard 2MP front camera, upgradable to 5MP or 8MP for higher clarity when needed.Optional built-in 4G LTE module available for RK3288, RK3566, RK3568, RK3576, and RK3588 platforms.Optional Type-C
【Notice】
For custom specifications or wholesale inquiries, please contact our sales team.
Payment Terms:
-
Sample orders: 100% upfront
-
Bulk orders: 30% deposit, 70% balance before shipment
Lead Times:
-
Samples: 7 working days after payment confirmation
-
Bulk orders: shipping schedule to be negotiated
Shipping:Freight costs are borne by the buyer. Contact us for a quote.
Warranty: 2-year standard warranty included.
【Parameter List】
| Model | HY101 series |
| TouchScreen | 10 Point |
| Material | Plastic |
| Size | 10.1'' |
| Resolution | 1280*800 |
| Screen scale | 16:10 |
| Brightness | 250 cd/m2 (Typ.)(500/1000 optional) |
| CPU | RK3566 (RK3568/RK3576/RK3588 optional) |
| Operating System | Android 11(12/13/14 optional) |
| RAM | 2GB(4GB/8GB/16GBoptional) |
| ROM | 32GB(64GB/128GB/256GB optional) |
| Network | 2.4G-Wifi |
| Bluetooth | |
| Ethernet | |
| POE Function | |
| I/O Ports | USB x 2 |
| LAN x 1 | |
| HD x 1 | |
| DC x 1 | |
| Audio x 1 | |
| TF x 1(MAX 32G) | |
| Camera | 200W(500W optional) |
| Speaker | 3W x 2 |
| Power Adapter | 12V, 3A |
| OEM | CPU, Interfaces ,BT,WiFi,NFC ,Camera , Logo ,Appearance etc. |
