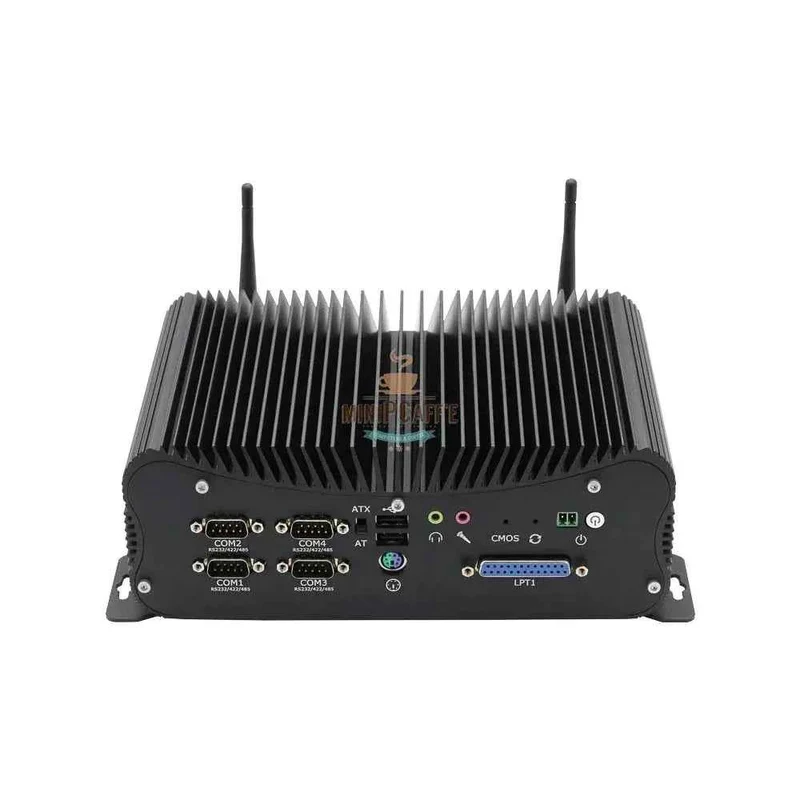

Intel Core i5 8250U Industrial Mini PC with 6 COM Ports and LPT

Industrial Mini PC with Intel Core i5 8250U - Compact, Fanless, and Reliable for Industrial Applications

Designed for demanding industrial environments, the Intel Core i5 8250U Industrial Mini PC offers an excellent balance of performance, efficiency, and durability. Powered by the Intel Core i5-8250U processor, this fanless system is ideal for automation, security, networking, and IoT deployment. Its compact size, advanced connectivity, and wide operating temperature range make it a dependable choice for continuous use in tough conditions.

Engineered for Industrial Performance

Efficient Multi-Core Processing

The Intel Core i5-8250U features 4 cores and 8 threads, delivering a base clock speed of 1.60GHz with turbo boost up to 3.40GHz. It provides smooth multitasking and energy-efficient computing for applications such as real-time monitoring, machine control, and network firewalls.

Expandable Memory and High-Speed Storage

This Mini PC supports up to 32GB DDR4 SO-DIMM RAM and up to 2TB SSD storage, offering the flexibility to meet different performance and data capacity requirements. Whether you're working with large data sets or multiple connected devices, this system is built to scale.

Industrial-Grade I/O Interfaces

Equipped with 2x 1G LAN ports, 6 COM ports (RS232/RS485/RS442), and a GPIO interface (7 inputs / 7 outputs), the MPC8-8250U is optimized for industrial integration. It also features USB 3.0 and 2.0 ports, HDMI, VGA, LPT, PS/2, and audio interfaces for comprehensive connectivity.

Durable, Fanless, and Quiet

Housed in a rugged black aluminum alloy chassis, the fanless design provides efficient passive cooling with zero noise and minimal dust buildup. Operating reliably between -20°C and +60°C, this Mini PC is suited for factory floors, transport vehicles, outdoor kiosks, and more.

Flexible Software Compatibility

Compatible with Windows 10, Linux, Ubuntu, and pfSense, this system can be easily configured for use in industrial automation, network security, surveillance, and data collection platforms.

Specifications

Processor

• Intel Core i5-8250U (4 cores, 8 threads)
• Base Clock: 1.60GHz
• Turbo Boost: Up to 3.40GHz

Memory & Storage

• Supports up to 32GB DDR4 SO-DIMM RAM
• Supports up to 2TB SSD (customizable configurations)

Graphics

• Integrated Intel UHD Graphics 620

Ports & Interfaces

• 2x 1G LAN Ports
• 6x COM Ports (RS232/RS485/RS442)
• 1x GPIO (7 inputs / 7 outputs)
• 1x HDMI, 1x VGA (dual display support)
• 4x USB 3.0, 2x USB 2.0
• 1x LPT, 1x PS/2
• 1x SPK, 1x MIC
• 1x 3-pin Phoenix Terminal
• 1x 2-pin Terminal Block

Build & Power

• Fanless aluminum alloy enclosure
• Power Input: 100-240V AC, 50/60Hz
• Dimensions: 249mm x 150mm x 86mm
• Color: Black

What's Included

• 1 x Mini PC
• 1 x Power Adapter (100-240V, 50/60Hz)

Shipping Information

• Free Express Shipping worldwide
• Ships within 2-3 business days from our factory in China
