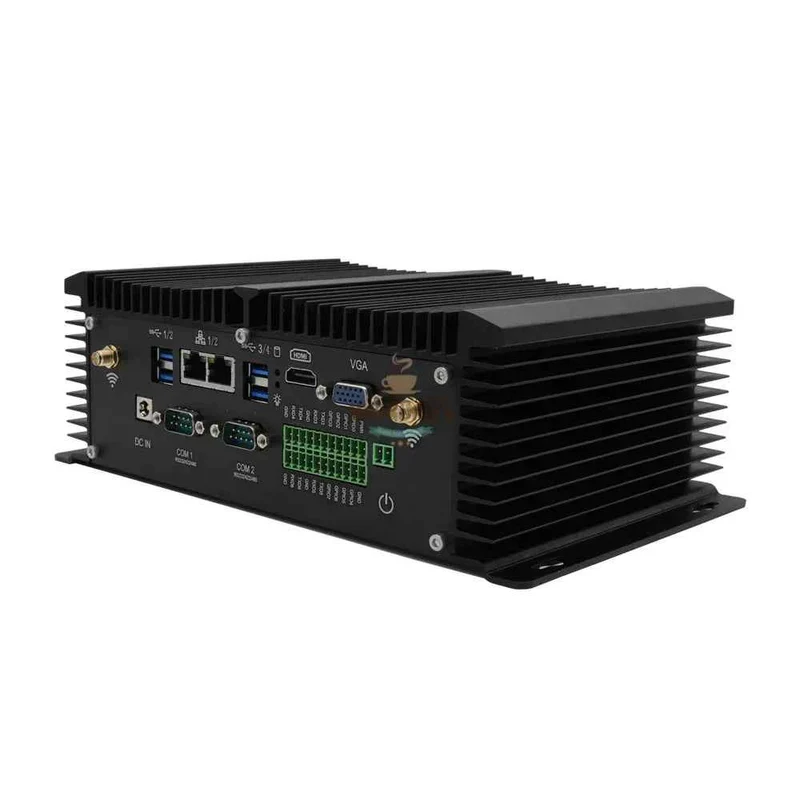

Intel i5 8250U Industrial Mini PC with GPIO and COM Ports

Intel Core i5 8250U Industrial Mini PC for Professional Applications

The MPC4-8250U Industrial Mini PC combines reliable Intel processing power, flexible connectivity, and a completely fanless design in a compact, rugged enclosure. Powered by the Intel Core i5 8250U processor, this industrial computer is suitable for automation systems, network applications, security setups, embedded systems, and other commercial workloads that require dependable performance.

With dual Gigabit LAN, RS-232/422/485 COM ports, GPIO, HDMI, VGA, USB ports, and 3G/4G connectivity support, this compact industrial PC offers the connections needed for a wide range of professional installations. Its silent cooling system and aluminum alloy housing also make it a practical choice for noise-sensitive environments.

Key Features

• Intel Core i5 Performance
• Completely Silent Fanless Cooling
• Dual Gigabit LAN Connectivity
• Industrial COM and GPIO Ports
• Compact Rugged Aluminum Enclosure

Reliable Intel Core i5 Performance

The MPC4-8250U is powered by the Intel Core i5 8250U, a quad-core processor with 8 threads. With a base frequency of 1.60GHz and turbo boost speeds of up to 3.40GHz, it provides dependable performance for multitasking, business software, industrial control applications, and network-based workloads.

Its integrated Intel HD Graphics 620 supports everyday display and professional computing needs, making this Mini PC a flexible solution for a variety of commercial and industrial environments.

Silent Fanless Cooling

The fanless design eliminates the need for a traditional cooling fan, allowing the computer to operate quietly with minimal moving parts. This makes it well suited for offices, control rooms, retail systems, industrial workspaces, and other environments where low noise is important.

The brushed aluminum alloy enclosure helps support heat dissipation while providing a durable housing for long-term professional use. Its compact design also makes it easier to install in space-limited workstations, cabinets, and embedded systems.

Extensive Industrial Connectivity

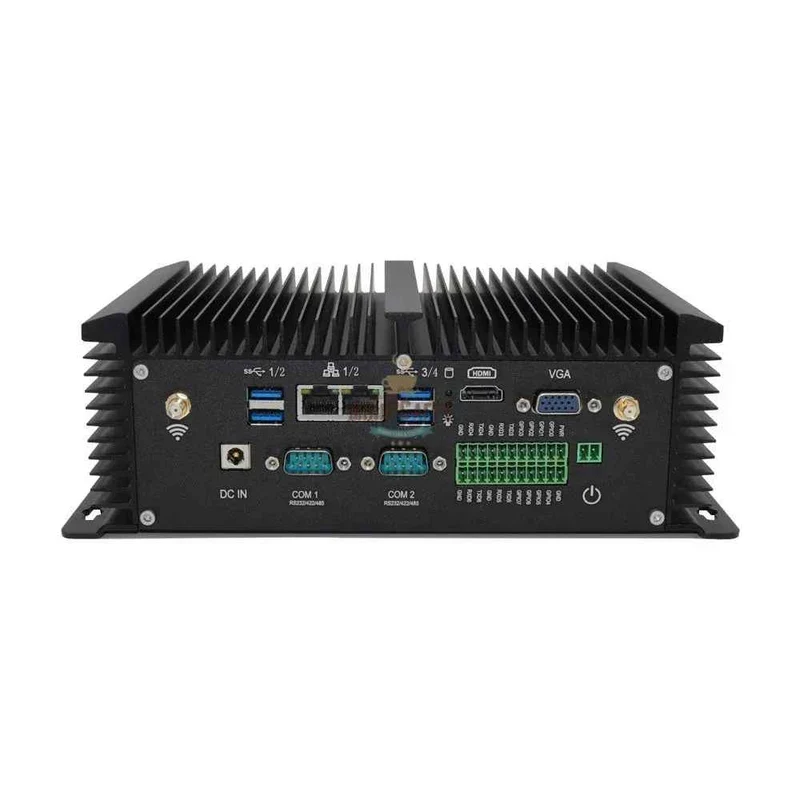

Designed for flexible integration, the MPC4-8250U includes a wide range of I/O ports for connecting industrial equipment, displays, peripherals, and network devices. Its connectivity options include:

• Dual Gigabit LAN ports
• RS-232/422/485 COM ports
• GPIO interface
• HDMI and VGA outputs
• USB 2.0 and USB 3.0 ports
• Audio and microphone connections
• 2-pin Phoenix terminal power input

These connections make the system suitable for applications involving industrial controllers, sensors, serial devices, monitoring equipment, and network infrastructure.

Flexible Industrial and Network Applications

This industrial Mini PC supports operating systems including Windows 10, Linux, Ubuntu, and pfSense, providing flexibility for different software environments and deployment requirements.

It can be used for a wide range of applications, including:

• Industrial automation and control
• Network routing and firewall systems
• VPN and network management
• Security and monitoring systems
• Embedded computing applications
• Commercial and office workstations

The integrated SIM card slot with 3G/4G support also allows mobile network connectivity for suitable configurations, making the PC useful for remote installations and locations where wired internet access may not be available.

Flexible Memory and Storage Options

The MPC4-8250U supports up to 32GB of SO-DIMM DDR4 RAM, allowing the memory configuration to be selected according to the intended workload. Storage options can also be chosen to suit different operating system, software, and data requirements.

This flexibility makes the system suitable for both basic industrial deployments and more demanding professional applications.

Built for Demanding Environments

The rugged aluminum enclosure and industrial-oriented design help the MPC4-8250U perform reliably in a range of operating conditions. It supports an operating temperature range of -20°C to +60°C, with a storage temperature range of -30°C to +70°C.

Whether used in a factory, network cabinet, control station, or remote deployment, this fanless industrial computer is designed to provide stable operation in demanding professional environments.

Specifications

• Manufacturer: MiniPCaffe
• Model: MPC4-8250U
• Product Type: Industrial Mini PC
• Processor: Intel Core i5 8250U
• CPU Cores: 4 Cores / 8 Threads
• Processor Speed: 1.60GHz up to 3.40GHz
• Cache: 6MB Smart Cache
• Graphics: Intel HD Graphics 620
• Memory: Up to 32GB DDR4
• Memory Type: SO-DIMM DDR4
• Storage: Select Above
• Operating Systems: Windows 10, Linux, Ubuntu, pfSense
• Wireless: Internal WiFi Module
• LAN Ports: 2x Gigabit LAN
• COM Ports: 2x RS-232/422/485
• USB 2.0: 4 Ports
• USB 3.0: 4 Ports
• Video Outputs: HDMI, VGA
• Audio: Audio Jack, Mic
• GPIO: Included
• Power Input: 2-Pin Phoenix Terminal
• SIM Support: 3G/4G
• Power Supply: 100-240V, 50/60Hz
• Dimensions: 224 mm
• Dimensions: 150 mm
• Dimensions: 83 mm
• Enclosure: Brushed Aluminum Alloy
• Enclosure Color: Black
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -30°C to +70°C

What's Included

• 1 x Mini PC
• 1 x Power Adapter, 100-240V, 50/60Hz

Shipping Information

• Free Express Shipping worldwide
• Ships within 2-3 business days from our factory in China
