Intel i5 8260U Industrial Mini PC with Dual LAN and SIM Slot

Industrial Mini PC with Intel Core i5-8260U - Compact, Silent, and Powerful

Upgrade your industrial or networking setup with our compact, fanless Mini PC featuring the Intel Core i5-8260U processor. Designed for reliability and performance, this processor delivers 4 cores, 8 threads, and turbo speeds up to 3.90GHz, making it ideal for multitasking and real-time applications.

This versatile Mini PC is perfect for use as a firewall, router, VPN server, industrial controller, or IoT gateway, providing powerful processing in a small, rugged form factor.

Advanced Networking and Connectivity

Designed with dual Intel i225V 2.5Gbps Ethernet ports, this system ensures lightning-fast, stable wired connections. It also includes an internal SIM card slot for 3G/4G mobile networks (5G optional), making it ideal for remote installations or mobile data access. Combined with a built-in WiFi module and external antenna support, it can also serve as a wireless router.

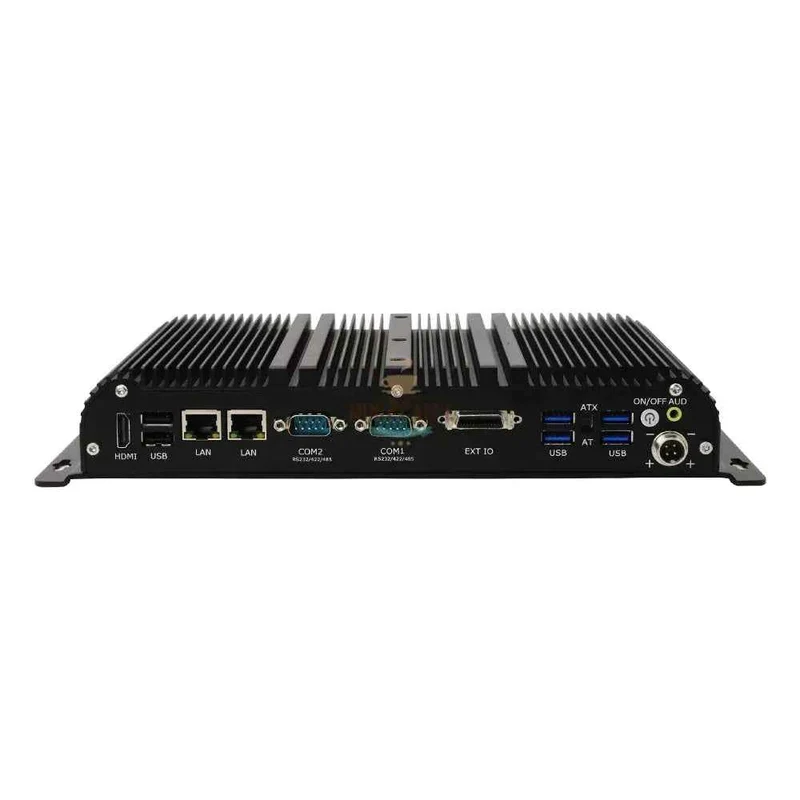

I/O options such as COM ports, GPIO, Phoenix terminals, HDMI, USB ports, and more provide broad compatibility for various industrial and networking setups.

Silent Operation and Energy Efficient

Thanks to its fanless design, this Mini PC operates silently with no moving parts, reducing maintenance and eliminating noise in office or industrial environments. It is highly energy-efficient with a power consumption of around 15W, helping reduce operating costs over time.

Durable, Compact Build

Housed in a premium black brushed aluminum alloy case, the unit is both sleek and rugged. With wide voltage support from 9V to 36V and a compact form factor, it fits easily into control cabinets, workstations, or server racks.

Intel Core i5-8260U Processor

Quad-core, eight-thread CPU with turbo boost up to 3.90GHz for stable and efficient performance.

2.5G Dual LAN Ports

Features two Intel i225V Ethernet ports for ultra-fast and secure wired networking.

Built-in SIM Card Slot

Supports 3G/4G (5G optional) networks for remote access and mobile data integration.

Wireless Router Capability

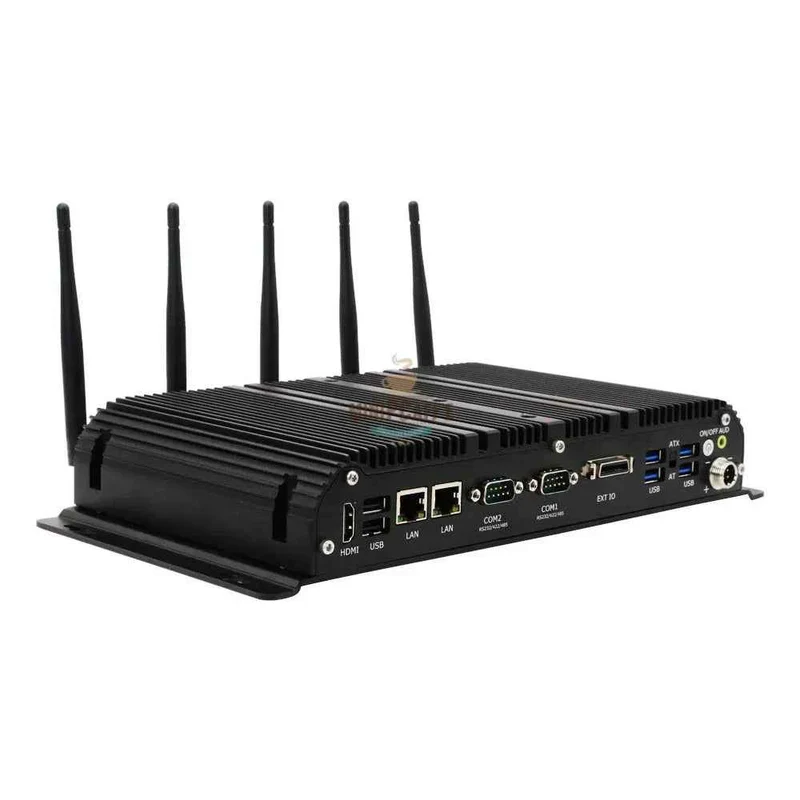

Includes an internal WiFi module and external antenna support, allowing the system to act as a wireless access point or router.

Fanless Cooling

Completely silent and dust-resistant for industrial or professional environments.

Specifications

• Type: Mini PC
• Processor: Intel Core i5-8260U – 4 Cores, 8 Threads, Base 1.60GHz, up to 3.90GHz Turbo, 6MB Cache
• Graphics: Integrated Intel UHD Graphics 620
• Memory Support: Up to 64GB DDR4 (configurable)
• Storage: Selectable SSD or HDD (choose above)
• Operating Systems: Windows 10/11, Linux, Ubuntu, pFsense, and others
• Power Input: 100-240V AC, 50/60Hz; working voltage: 9V–36V DC
• Wireless: Internal WiFi module + SIM card module with 3G/4G (5G optional)
• Networking: 2 x Intel i225V 2.5Gbps LAN ports
• Ports:
• 2 x RS232/433/485
• 2 x DB9 COM
• 1 x HDMI
• 2 x USB 2.0
• 4 x USB 3.0
• 1 x Audio Out
• 1 x 4-pin Phoenix terminal
• 1 x 2-pin terminal block
• GPIO and External IO
• Case Material: Black ultra-thin brushed aluminum alloy
• Dimensions: 266 x 155 x 49.85 mm
• Color: Black

What's Included

• 1 x Mini PC
• 1 x Power Adapter (100-240V, 50/60Hz)

Shipping Information

• Free Express Shipping worldwide
• Ships within 2-3 business days from our factory in China
