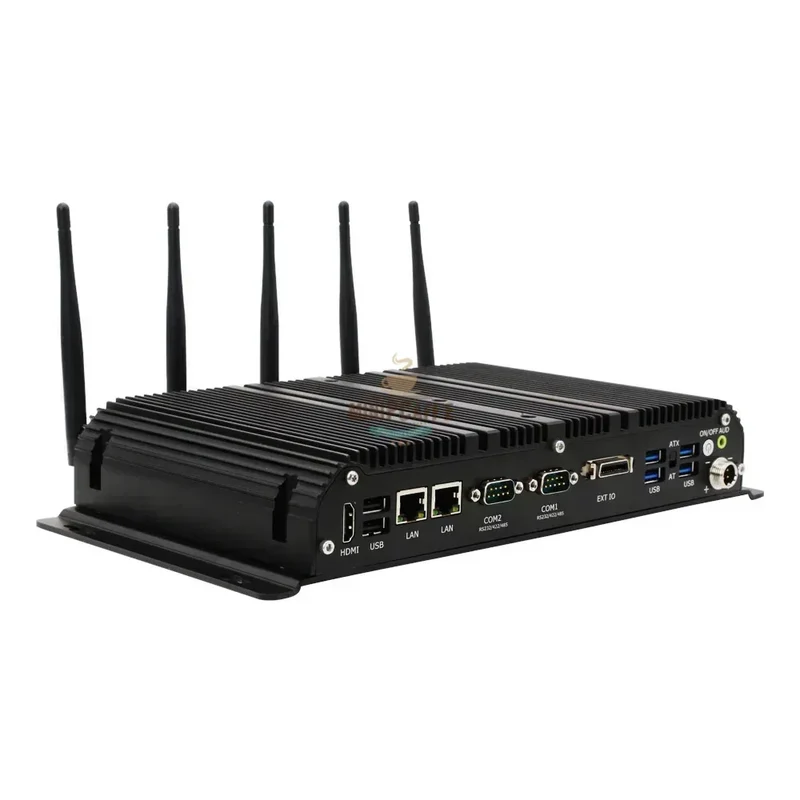

Intel i7 1165G7 Industrial Mini PC with Dual LAN and SIM Slot

Intel Core i7-1165G7 Industrial Fanless Mini PC with Dual 2.5G LAN and SIM Slot

Experience powerful computing and reliable networking in a compact, silent, and energy-efficient industrial Mini PC. Powered by the 11th Gen Intel Core i7-1165G7 processor, this system features 4 cores, 8 threads, speeds up to 4.70GHz, and integrated Intel Iris Xe Graphics. It is designed for demanding professional applications, including firewall systems, routers, VPN gateways, industrial automation, remote access, and network management.

With dual Intel i225V 2.5Gbps LAN ports, built-in WiFi support, a SIM card slot, and a wide selection of industrial I/O connections, this Mini PC offers the flexibility needed for modern networking and control environments.

Key Features

• Intel Core i7 Performance
• Dual 2.5G LAN Ports
• Built-in SIM Card Slot
• Fanless Silent Cooling
• Wide Voltage Support

High-Performance Intel Core i7 Processor

The Intel Core i7-1165G7 delivers responsive performance for multitasking, business applications, network management, and industrial workloads. Its 4 cores and 8 threads, combined with a turbo speed of up to 4.70GHz and 12MB cache, provide a strong balance of performance and energy efficiency.

Integrated Intel Iris Xe Graphics supports smooth display output and everyday visual applications without requiring a separate graphics card. The system supports up to 64GB of DDR4 SO-DIMM memory, allowing you to configure the Mini PC according to your performance requirements.

Advanced Networking for Routers and Firewalls

This industrial Mini PC includes two Intel i225V 2.5Gbps Ethernet ports, providing fast and stable wired network connections. The dual LAN design makes it suitable for firewall appliances, VPN gateways, network security systems, routers, and other professional networking applications.

The system supports operating systems such as Windows 10, Windows 11, Linux, Ubuntu, and pfSense, giving you the flexibility to build a customized network or computing solution.

SIM Slot and Wireless Connectivity

A built-in SIM card slot supports 3G and 4G mobile networks, with 5G available as an optional configuration. This makes the Mini PC suitable for remote installations, mobile data access, backup connectivity, and locations where wired internet is limited.

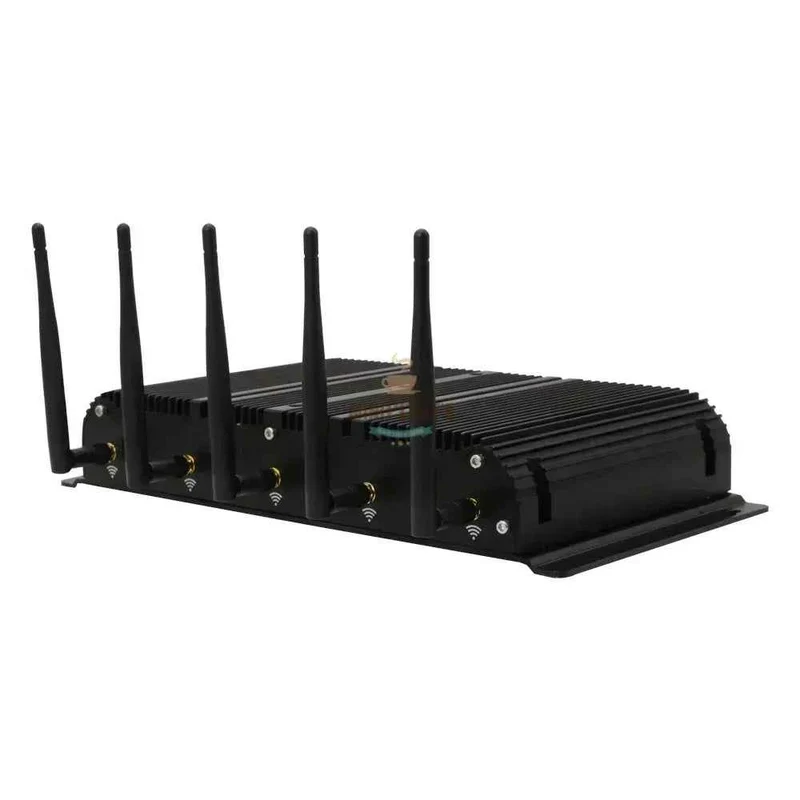

The internal WiFi module and external antenna support also allow the system to be used as a wireless router or access point, depending on the selected configuration and installed software.

Fanless Design for Silent, Reliable Operation

The fanless cooling system operates without moving parts, helping reduce noise, dust intake, and maintenance requirements. With power consumption of approximately 15W, this Mini PC is designed to deliver efficient operation for professional and industrial environments.

Its silent design makes it suitable for offices, control rooms, network cabinets, kiosks, and other locations where low noise is important.

Durable Industrial Construction

The Mini PC is housed in a black brushed aluminum alloy case that combines a compact design with durable construction. Its 9V to 36V DC working voltage range makes it suitable for a variety of industrial and vehicle-based power environments.

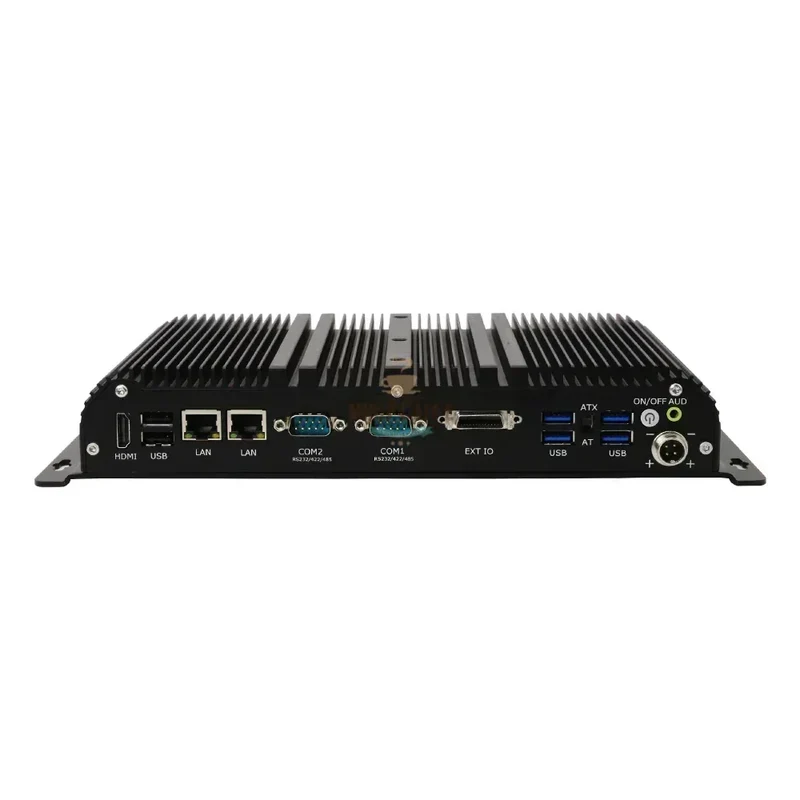

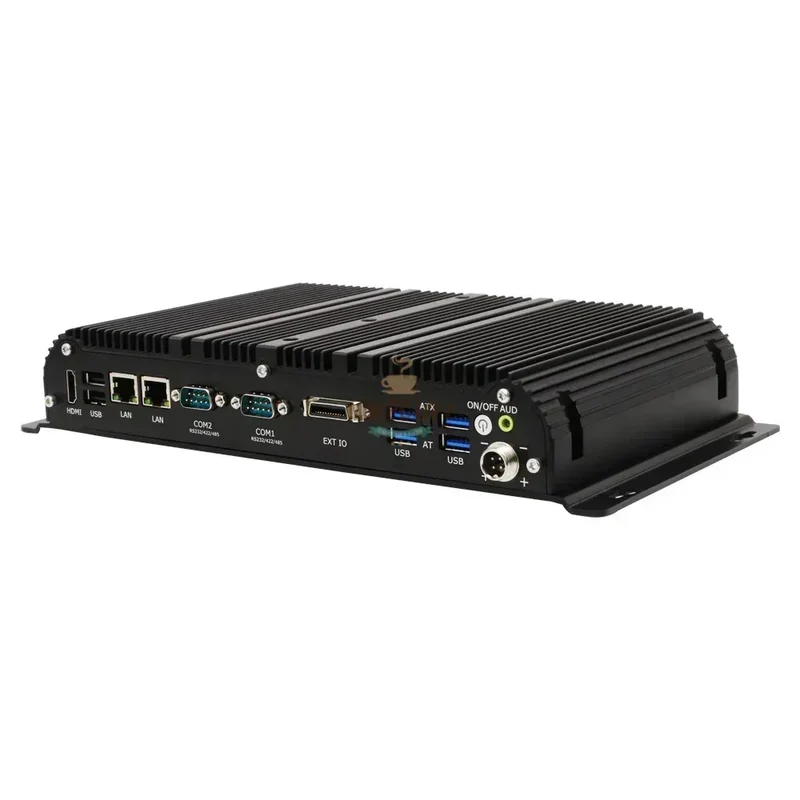

With COM ports, RS232/RS433/RS485 support, GPIO, Phoenix terminals, HDMI, USB ports, and audio connectivity, the system can be integrated into a wide range of industrial control, automation, and networking setups.

Specifications

• Manufacturer: MiniPCaffe
• Model: i7-1165G7 Industrial Mini PC
• Processor: Intel Core i7-1165G7
• Processor Generation: 11th Gen
• CPU Cores: 4 Cores
• CPU Threads: 8 Threads
• Base Frequency: 2.80GHz
• Turbo Frequency: Up to 4.70GHz
• Cache: 12MB
• Graphics: Intel Iris Xe Graphics
• Memory Type: SO-DIMM DDR4
• Memory Support: Up to 64GB
• Storage: Selectable SSD or HDD
• Operating Systems: Windows, Linux, Ubuntu, pfSense
• LAN Ports: 2 x Intel i225V
• LAN Speed: 2.5Gbps
• Wireless: Internal WiFi Module
• SIM Support: 3G/4G, 5G Optional
• Serial Ports: 2 x RS232/433/485
• COM Ports: 2 x DB9 COM
• Video Output: 1 x HDMI
• USB 2.0: 2 Ports
• USB 3.0: 4 Ports
• Audio: 1 x Audio Out
• Phoenix Terminal: 1 x 4-Pin
• Terminal Block: 1 x 2-Pin
• Expansion I/O: GPIO and External IO
• Cooling System: Fanless
• Power Consumption: Approximately 15W
• Power Input: 100-240V AC
• AC Frequency: 50/60Hz
• DC Working Voltage: 9V-36V
• Operating Temperature: 30°C to 70°C
• Storage Temperature: -20°C to 60°C
• Case Material: Brushed Aluminum Alloy
• Case Color: Black
• Product Dimensions: 266 x 155 x 49.85 mm

What's Included

• 1 x Industrial Mini PC
• 1 x Power Adapter, 100-240V AC, 50/60Hz
