Intel N100 Industrial Mini PC with Dual LAN and SIM Slot

Intel N100 Industrial Mini PC with Dual 2.5GbE LAN and SIM Slot

The Intel N100 Industrial Mini PC is a compact, fanless computer designed for industrial networking, automation, security, and 24/7 applications. Powered by the efficient Intel Processor N100 with 4 cores and 4 threads, it delivers reliable performance while using only around 15W of power. Its dual Intel i225V 2.5Gbps LAN ports, built-in WiFi, internal SIM slot, multiple COM ports, GPIO connections, and wide 9V-36V voltage input make it a flexible solution for firewalls, routers, VPN servers, security gateways, industrial control systems, and other demanding network applications.

Key Features

• Intel N100 Processor
• Dual 2.5Gbps LAN
• Fanless Silent Cooling
• Built-In SIM Slot
• Wide Voltage Input

Powerful Intel N100 Performance

The Intel N100 processor provides an excellent balance of performance and energy efficiency for industrial and networking applications. With 4 cores, 4 threads, speeds up to 3.40GHz, and 6MB cache, this industrial Mini PC can handle network management, firewall software, VPN services, security applications, automation tasks, and everyday computing workloads.

Integrated Intel UHD Graphics 600 provides reliable graphics performance for supported displays and operating systems. The system supports up to 16GB of DDR4 SO-DIMM memory, with storage and memory configurations available according to the selected option.

Dual 2.5Gbps LAN and Mobile Connectivity

Built for advanced networking, the Mini PC features two Intel i225V 2.5Gbps Ethernet ports for fast and stable wired connections. This makes it suitable for router, firewall, VPN, gateway, server, and network security applications where reliable high-speed connectivity is important.

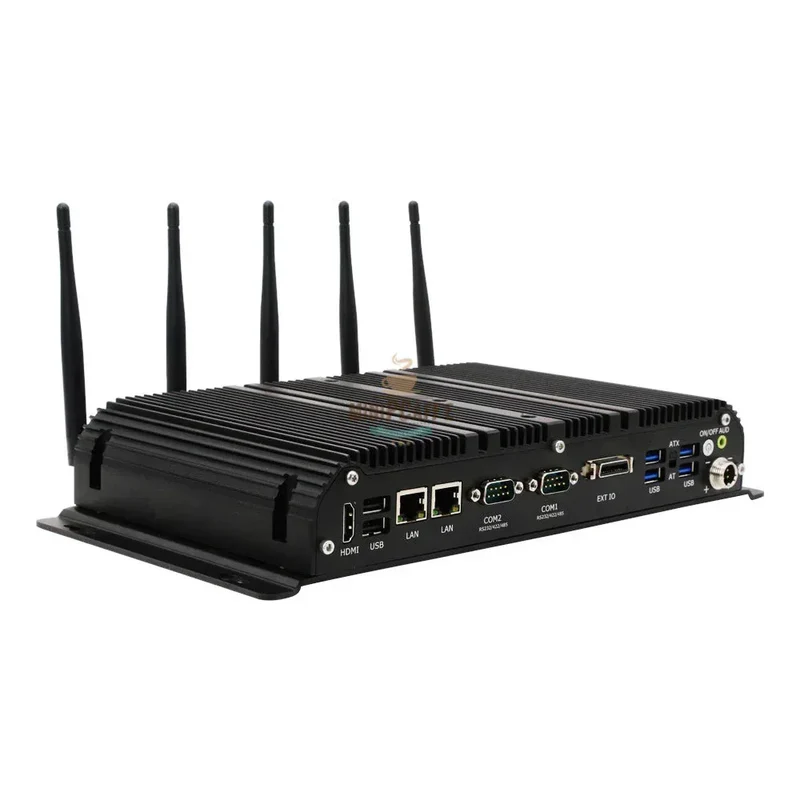

An internal SIM card slot supports 3G and 4G mobile connectivity, with 5G available as an optional configuration. The built-in WiFi module and five external antenna connections provide additional wireless networking flexibility, making the system suitable for remote installations and wireless router applications.

Fanless Design for 24/7 Operation

The fully fanless cooling system provides silent operation without the moving parts found in traditional actively cooled computers. This reduces noise, dust intake, and maintenance requirements, making the Mini PC a practical choice for offices, industrial environments, control cabinets, networking installations, and other locations where quiet and reliable operation is important.

With power consumption of approximately 15W, the Intel N100 Mini PC is designed for energy-efficient continuous operation. Its 9V-36V operating voltage also provides flexibility for different industrial power environments.

Rugged Compact Industrial Design

The compact black chassis is made from ultra-thin brushed aluminum alloy, providing a durable enclosure while keeping the system suitable for space-limited installations. Its wide voltage input, extensive I/O, and industrial-focused design make it a versatile computer for automation systems, network infrastructure, digital security, and embedded applications.

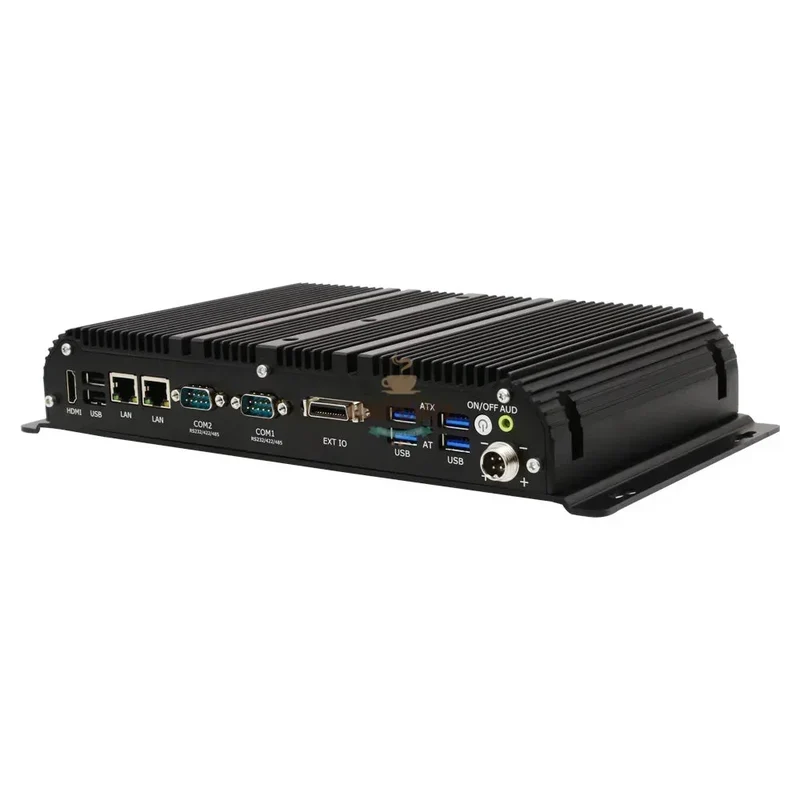

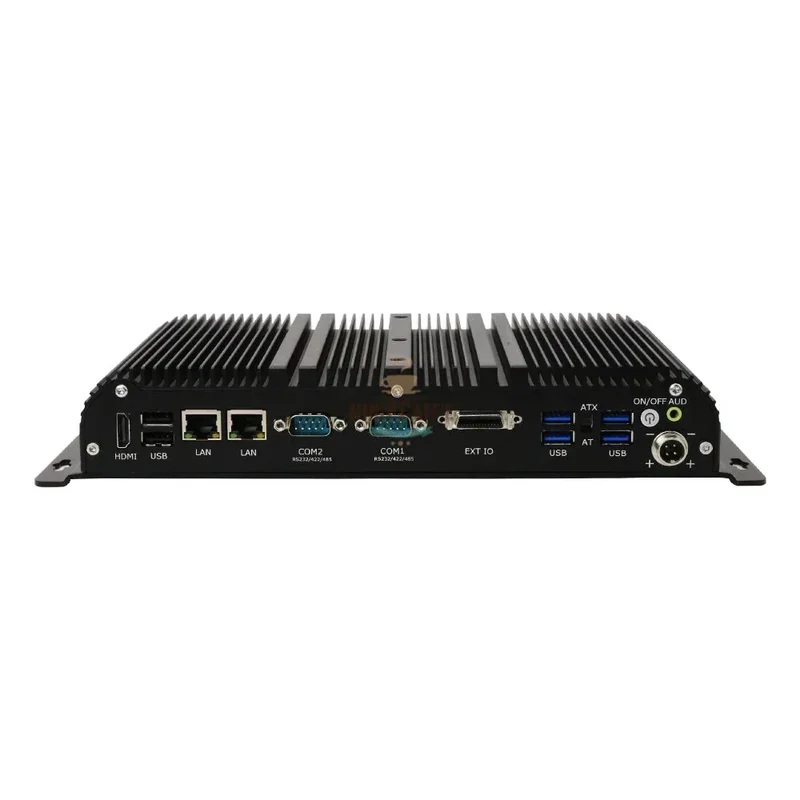

The system includes multiple connectivity options, including RS232/433/485, DB9 COM, HDMI, USB 2.0, USB 3.0, audio output, Phoenix terminal, and terminal block connections. It supports Windows 10, Windows 11, Linux, Ubuntu, pFsense, and other compatible operating systems.

Specifications

• Processor: 4-Core N100, 4-Thread, Up to 3.40GHz, 6MB Cache
• Graphics: Intel UHD Graphics 600
• Memory: Up to 16GB DDR4 SO-DIMM
• Storage: Configurable (up to 2TB SSD)
• Networking: 2 x Intel i225V 2.5Gbps LAN
• Wireless: WiFi, 3G/4G SIM, Optional 5G
• Serial Ports: 2 x DB9, RS232/433/485
• USB Ports: 2 x USB 2.0, 4 x USB 3.0
• Video Output: 1 x HDMI
• Other Ports: Audio Out, 4-Pin Phoenix, 2-Pin Terminal
• Cooling: Fanless, Silent Operation
• Power: Approx. 15W, 9V-36V
• Power Adapter: 100-240V, 50/60Hz
• OS Support: Windows 10/11, Linux, Ubuntu, pFsense
• Case: Black Brushed Aluminum Alloy
• Dimensions: 266 x 155 x 49.85 mm
• Color: Black

What's Included

• 1 x Mini PC
• 1 x Power Adapter (100-240V, 50/60Hz)
