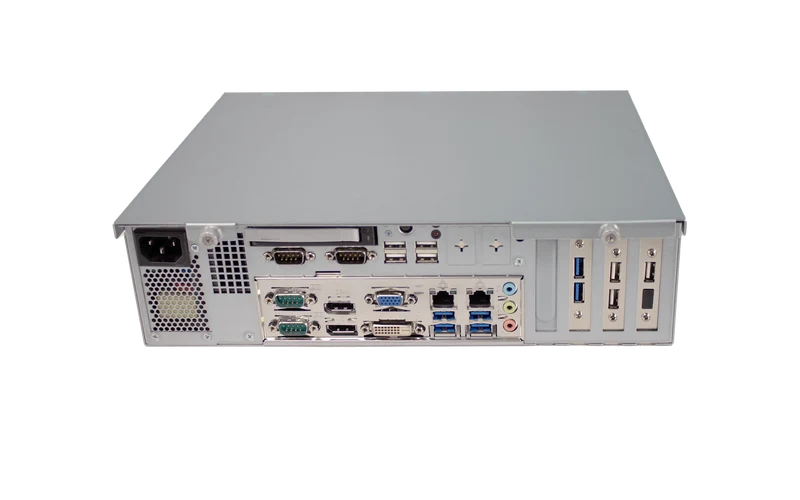

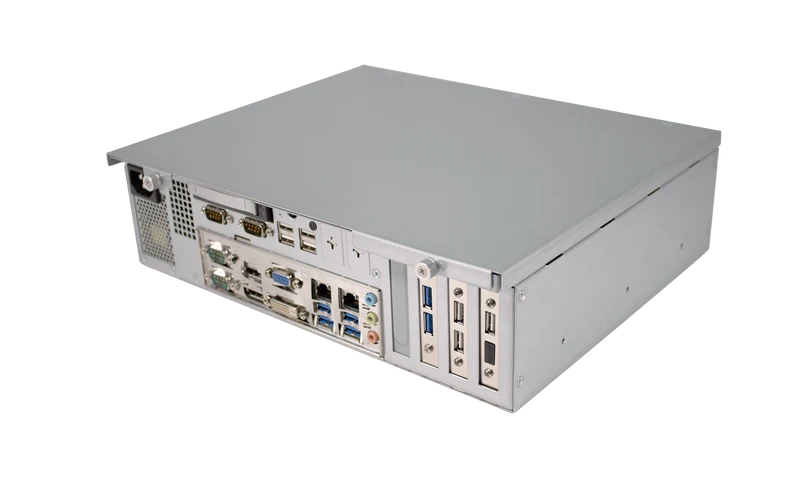

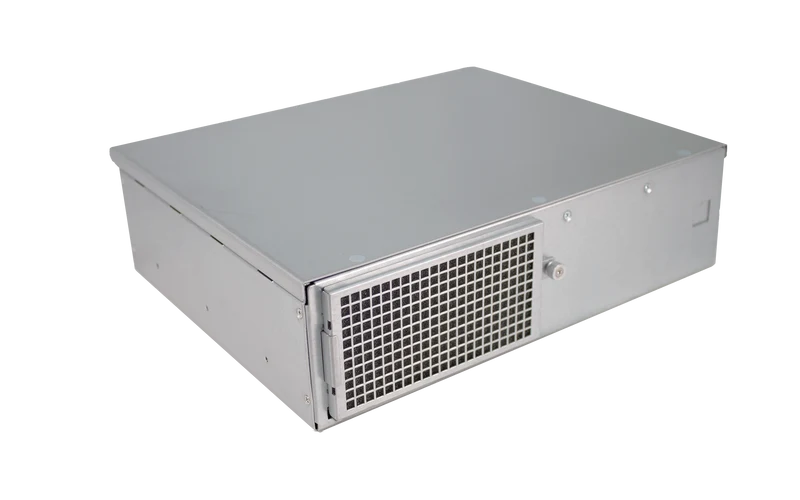

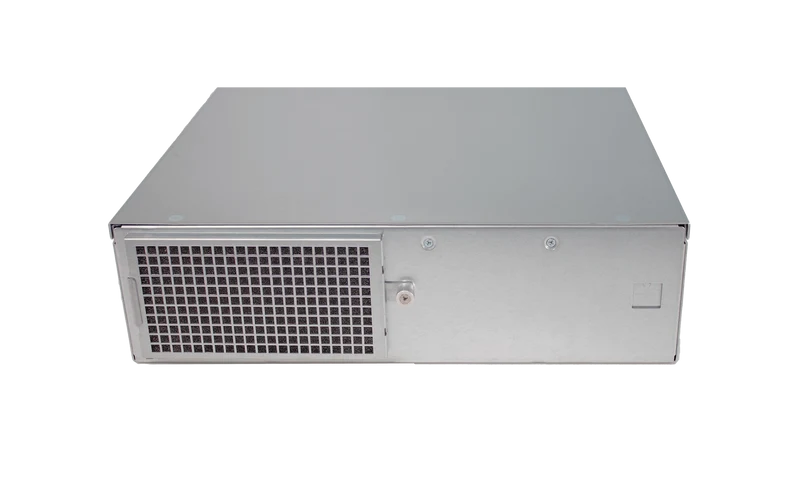

KCO-2000-CFL Compact Edge AI Workstation, 9th Gen Intel® Core® Processor and Q370 PCH

0,00 €

Descrizione

Intel Q370 CFL-R Chipset
Support Intel 8th/9th Gen Core Processors (LGA 1151, 35W/65W/95W TDP)
Support 4x 288-pin DDR4 DIMM, Max. up to 128GB
2x Intel GbE Ports Support Wake-on-LAN, PXE and vPRO (with i5 and above processors)
Triple Independent Display Ports among VGA, DVI-D and DP (1.2) ports
1x PCIe X16 (Gen3) slot for low profile addon cards
1x M.2 M Key, NVMe PCIe X4, SATA 2242/2260/2280
1x M.2 E Key PCIe X2, USB2.0. 2230
4x COM Ports (DB9) 2x RS-232/422/485 + 2x RS-23, 2x RS-232 (internal header)
6x USB3.1 ports, 7x USB2.0 External Ports
1x Hot-swappable 2.5" SATA drive tray support 7" SSD or HDD
TPM2.0, Support UEFI Secure Boot
Tool-less Washable Dust Filter
Internal 250W Flex Power Supply

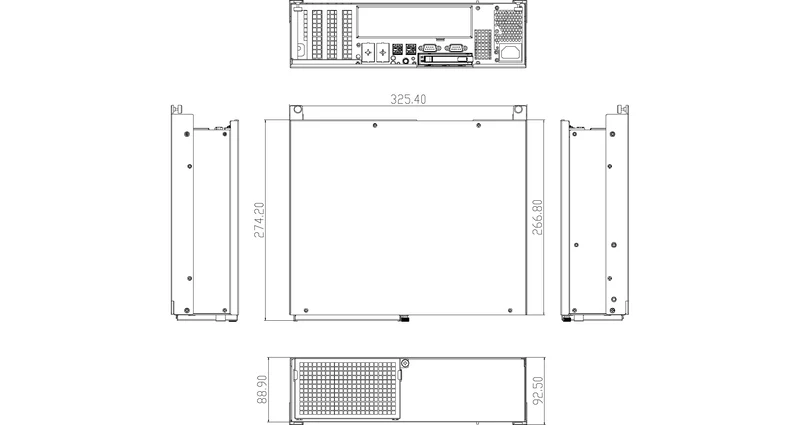

12.73"(W) x 10.75:(D) x 3.45"(H)
CE, FCC, UL Certified
