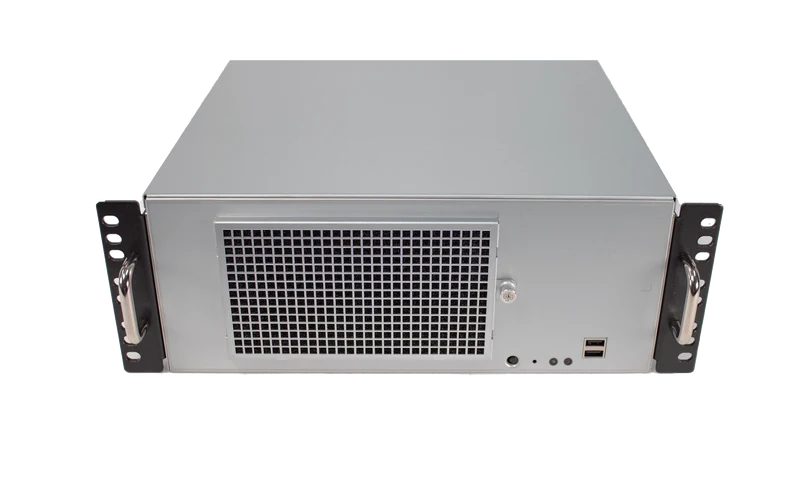

KCO-3000-CFL Expandable Edge AI Workstation, 9th Gen Intel® Core® Processor and Q370 PCH

0,00 €

Descrizione

Intel Q370 CFL-RS Chipset
Support Intel 8th/9th Gen Core Processors (LGA 1151, 35W/65W/95W TDP)
Support 4x 288-pin DDR4 DIMM, Max. up to 128GB
2x Intel GbE Ports Support Wake-on-LAN, PXE and vPRO (with i5 and above processors)
Triple Independent Display Ports among VGA, DVI-D and DP (1.2) ports
1x PCIe X16 (Gen3), 2x PCIe X4 (Gen3) Expansion slots for full height add-on cards
1x M.2 M Key, NVMe PCIe X4, SATA 2242/2260/2280
1x M.2 E Key PCIe X2, USB2.0. 2230
4x COM Ports (DB9) 2x RS-232/422/485 + 2x RS-233, 2x RS-232 (internal header)
4x USB3.1 ports, 6x USB2.0 External Ports, Internal 1x USB3.1 Gen 2, 2x USB2.0 headers
1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm
Support UEFI Secure Boot, TPM2.0
Tool-less Washable Dust Filter
Internal 300W Flex Power Supply

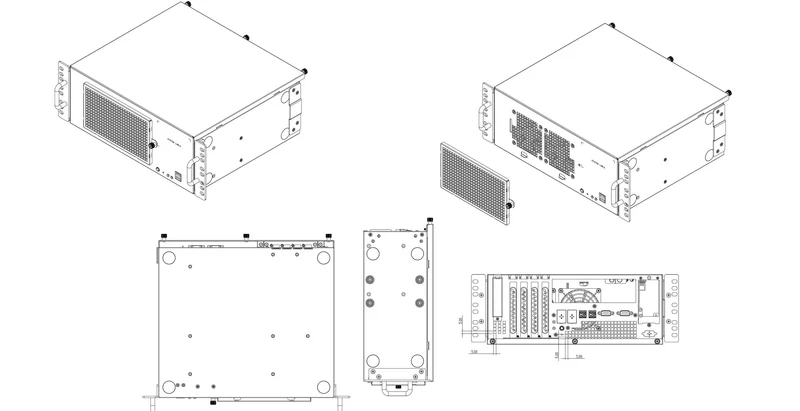

13.15"(W) x 11.78"(D) x 5.23"(H)
CE, FCC, UL Certified
