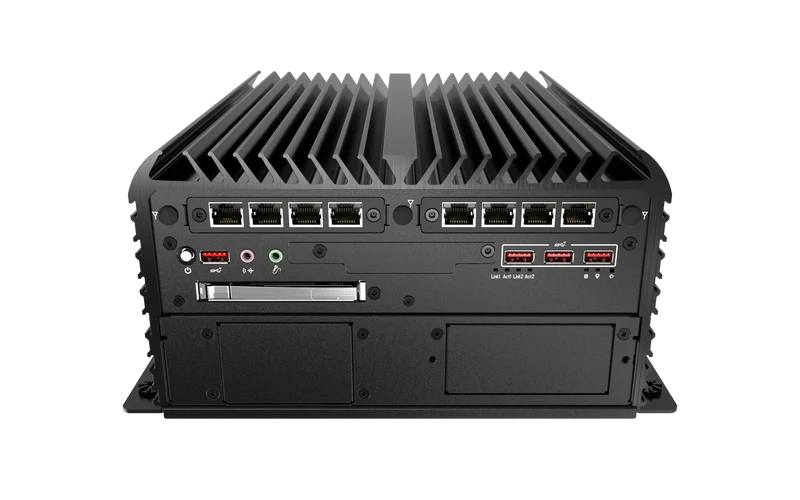

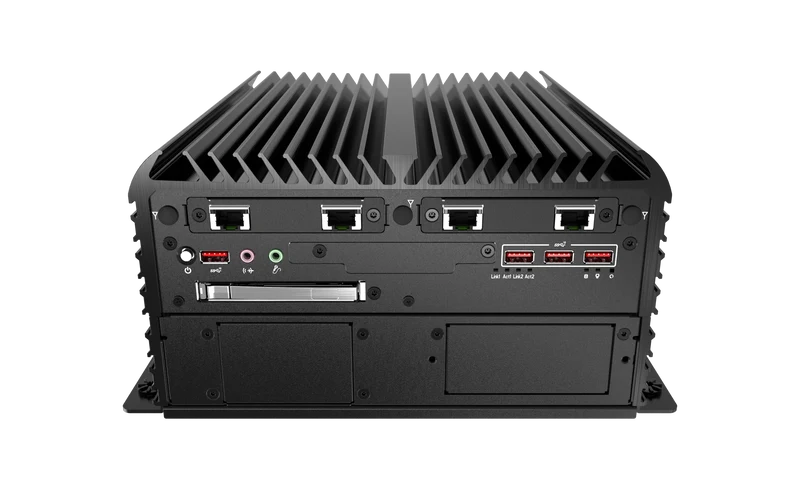

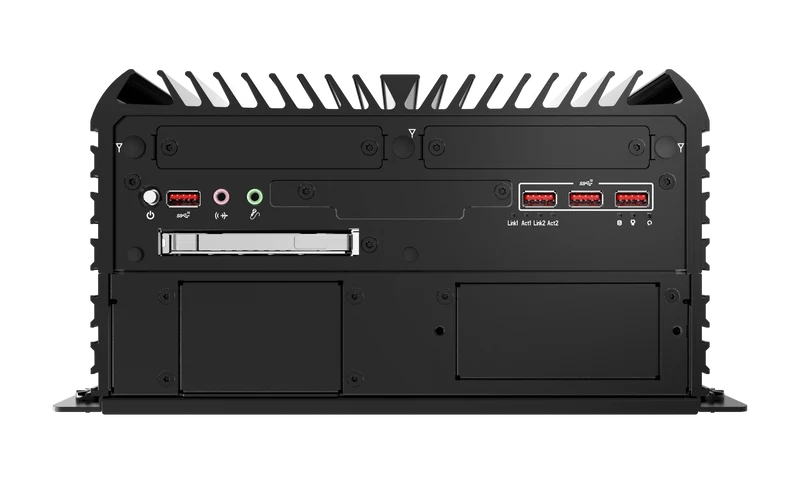

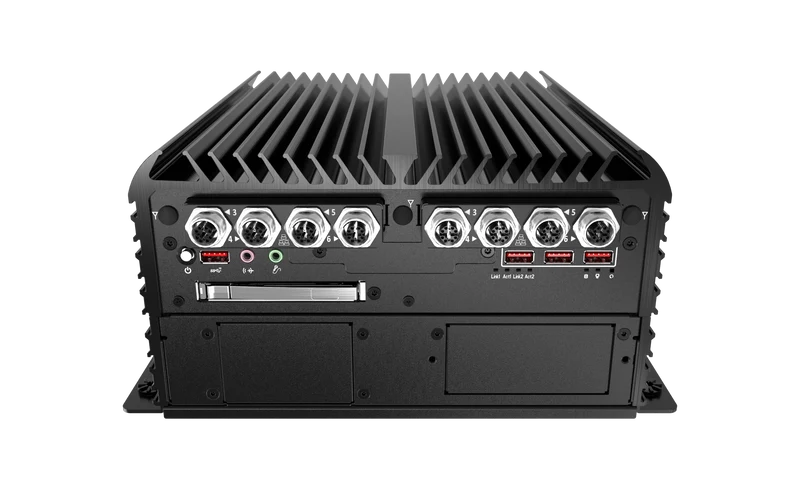

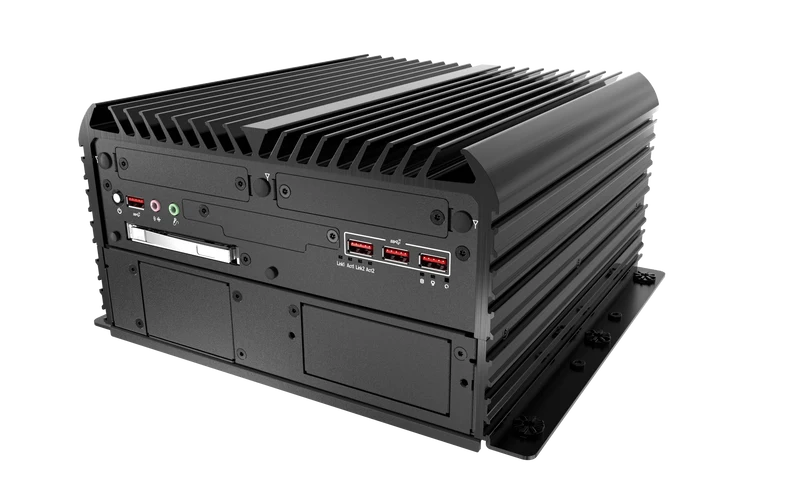

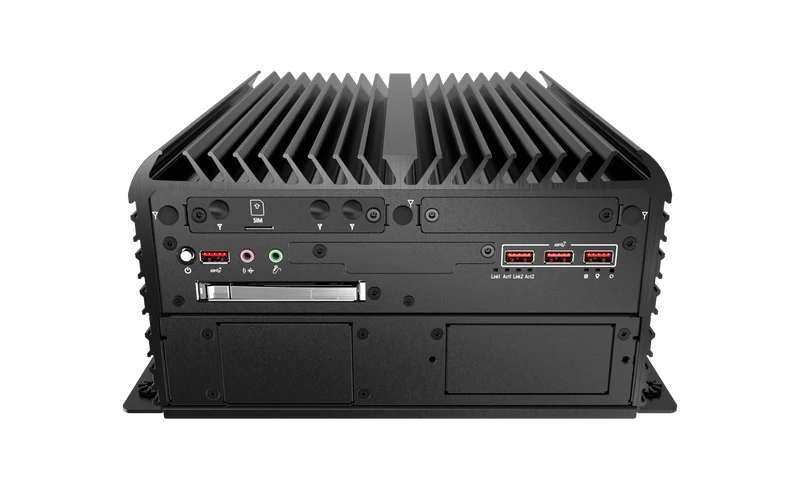

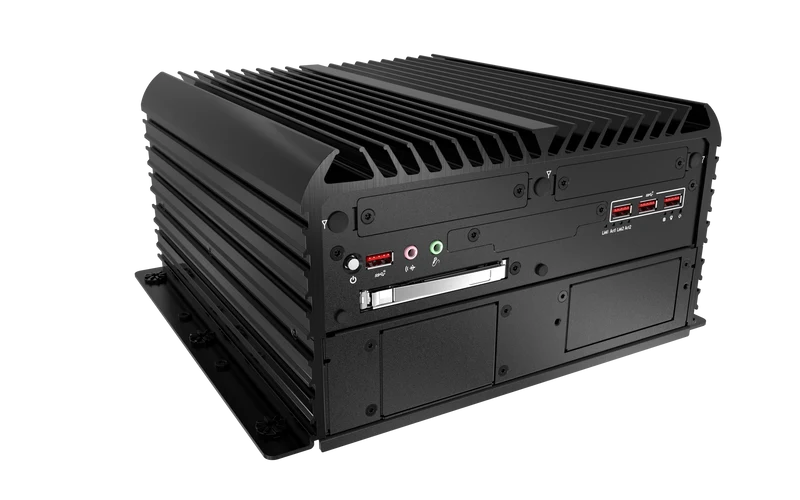

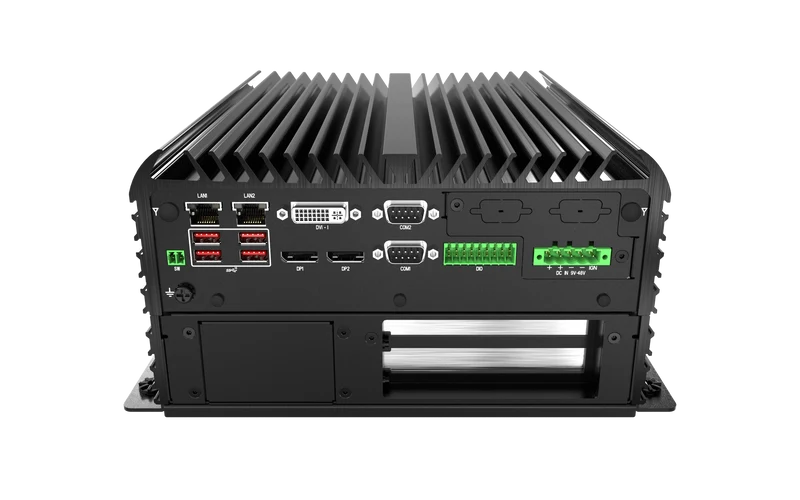

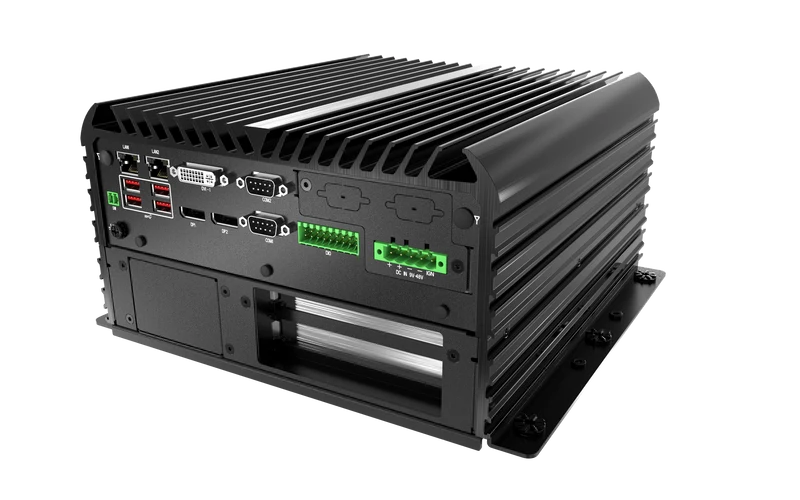

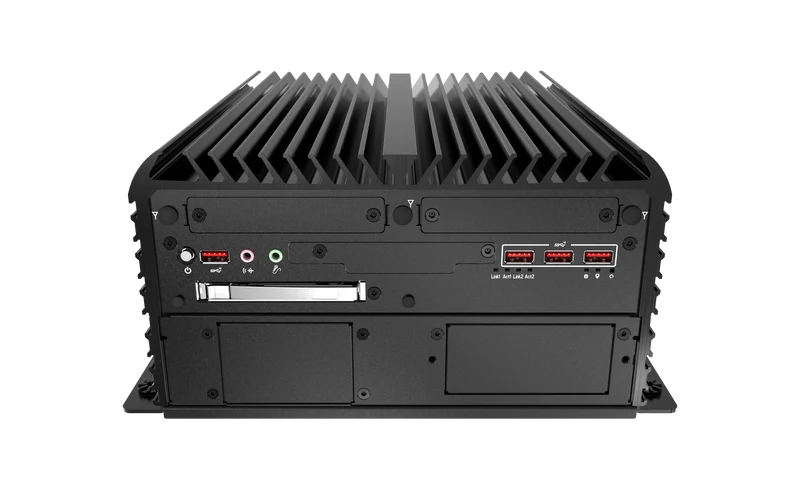

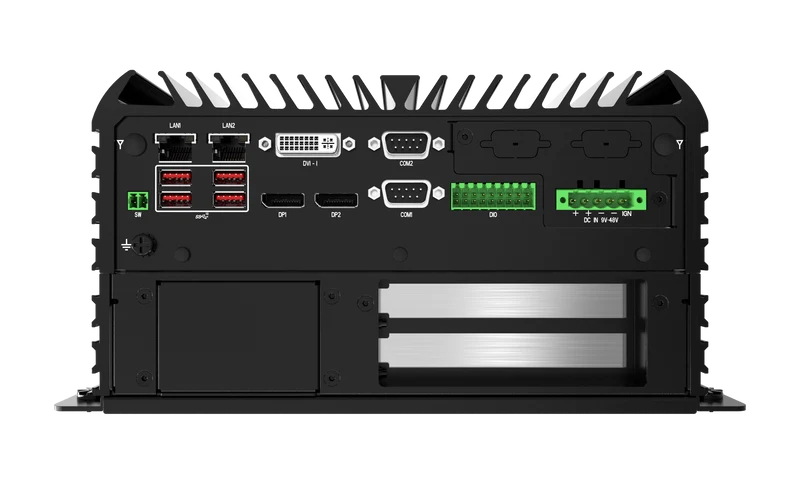

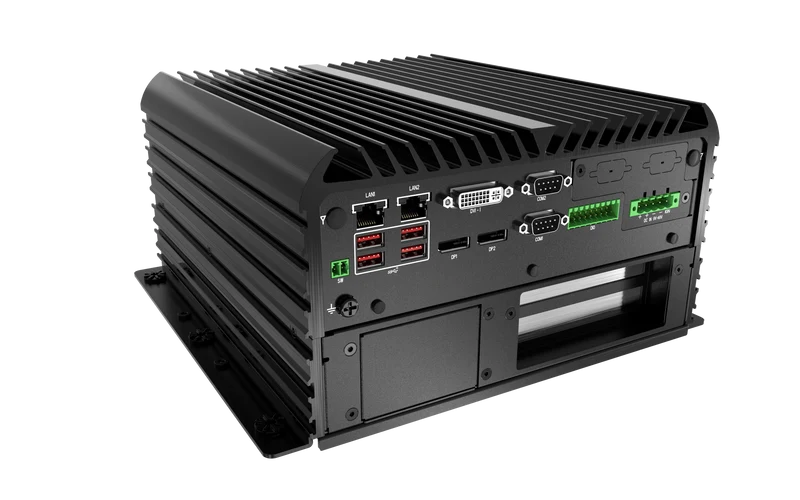

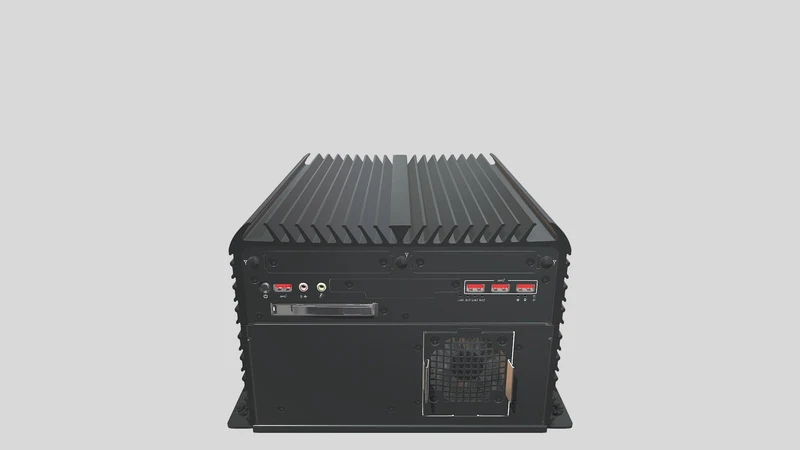

RCO-6000-RPL-2 AI Edge Industrial Computer with LGA 1700 for Intel® Core™ (Series 2)/14th/13th/12th Gen Processors & R680E PCH, 2x PCIe
0,00 €
Descrizione
- Intel® Core™ Processors (BTL, Series 2)/14th/13th/12th Gen RPL/ADL Series, LGA1700
- Intel® R680E Chipset
- 2x DDR5 4800/5600 MT/s SODIMM. Max. up to 96GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE
- 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap), Support RAID 0, 1
- 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
- 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
- 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C up to 70°C
- TPM 2.0 Supported
- EDGEBoost Options: 1x PCIe x16(Gen 4), 1x PCIe x1(Gen3) or 1x PCIe x16 (8-lane, Gen 4), 1x PCIe x8 (8-lane, Gen 4)LGA 1700 socket for 15th/13th/12th Gen. Intel® Core™ Processor
- Intel® R680E Chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 96GB
