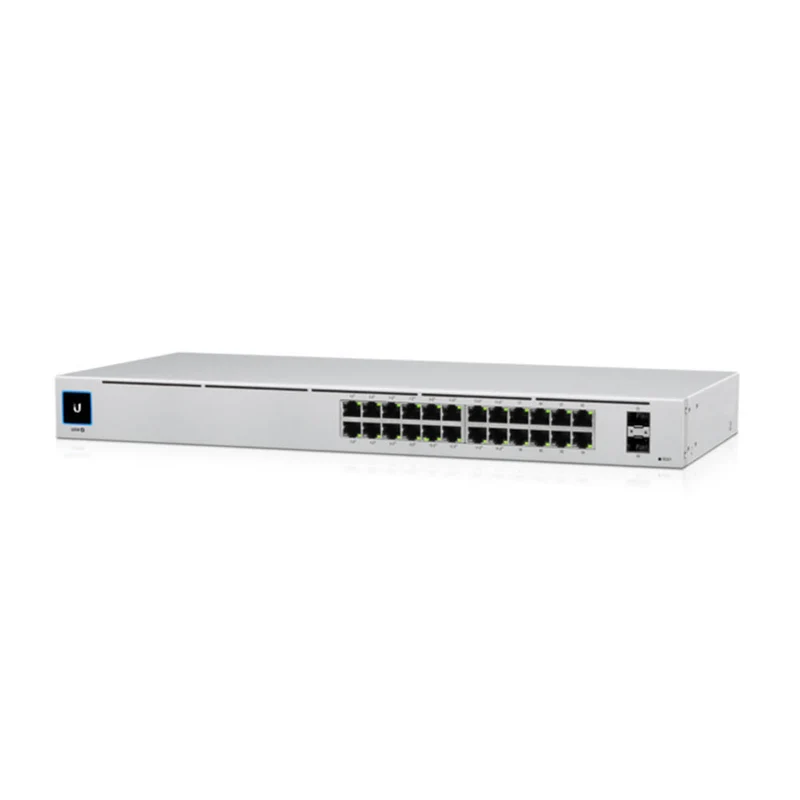

Ubiquiti Switch Pro 24 PoE USW-Pro-24-PoE

The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, PoE+ RJ45 ports, (8) GbE, PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (1) 1.3" LCM color touchscreen with AR switch management
• (16) GbE, PoE+ RJ45 ports
• (8) GbE, PoE++ RJ45 ports
• (2) 10G SFP+ ports
• (1) USP RPS DC input
• 400W total PoE supply
• Near-silent cooling
• Layer 3 switching features

• Mechanical
  Dimensions	442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
  Weight	Without Rackmount Brackets: 4.30 kg (9.48 lb) With Rackmount Brackets: 4.39 kg (9.68 lb)
  Hardware
  Networking Interface	(24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports
  Management Interface	Ethernet In-Band
  Total Non-Blocking Throughput	44 Gbps
  Switching Capacity	88 Gbps
  Forwarding Rate	65.472 Mpps
  Power Method Universal Input USP RPS DC Input	100-240VAC/50-60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A
  Power Supply	AC/DC, Internal, 450W
  Supported Voltage Range	100 to 240VAC
  Max. Power Consumption (Excluding PoE Output)	50W
  LEDs System RJ45 Data Ports SFP+ Data Ports	Status PoE; Speed/Link/Activity Link/Activity
  ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
  Shock and Vibration	ETSI300-019-1.4 Standard
  Operating Temperature	-5 to 40° C (23 to 104° F)
  Operating Humidity	10 to 90% Noncondensing
  Certifications	CE, FCC, IC
  PoE
  Total Available PoE	400W
  PoE Interfaces Ports 1-16 Ports 17-24	PoE/PoE+(pins 1, 2+; 3, 6-) 60W PoE++ (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
  Max. PoE Wattage per Port by PSE PoE+ PoE++	32W 64W
  Voltage Range PoE Mode	44-57V
  Voltage Range PoE+ Mode	50-57V
