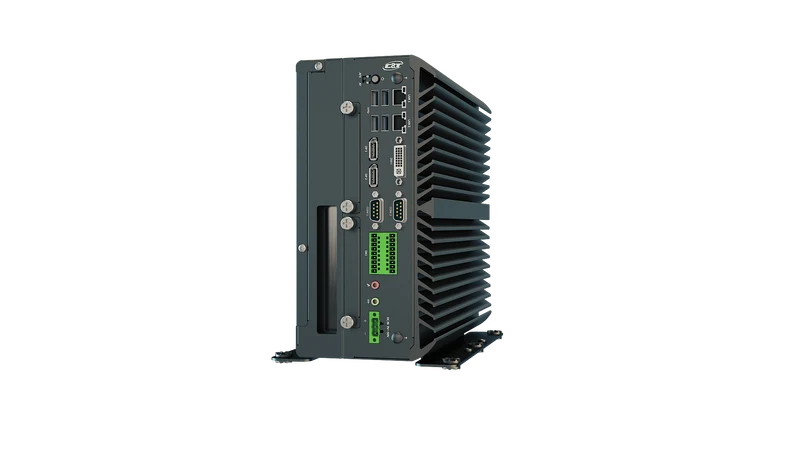

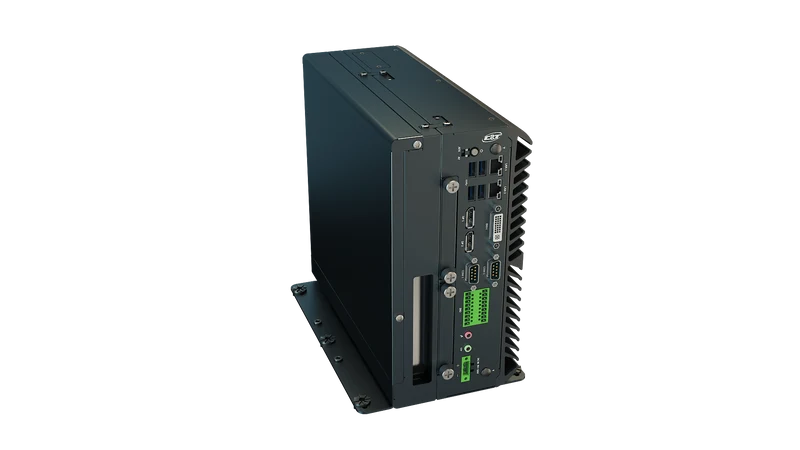

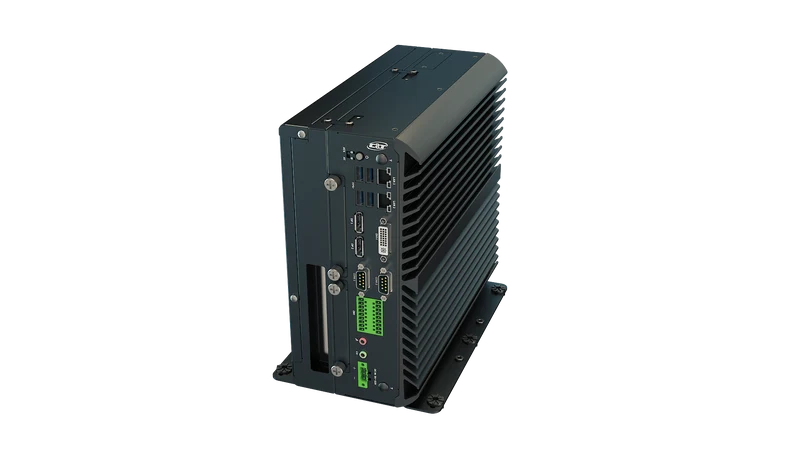

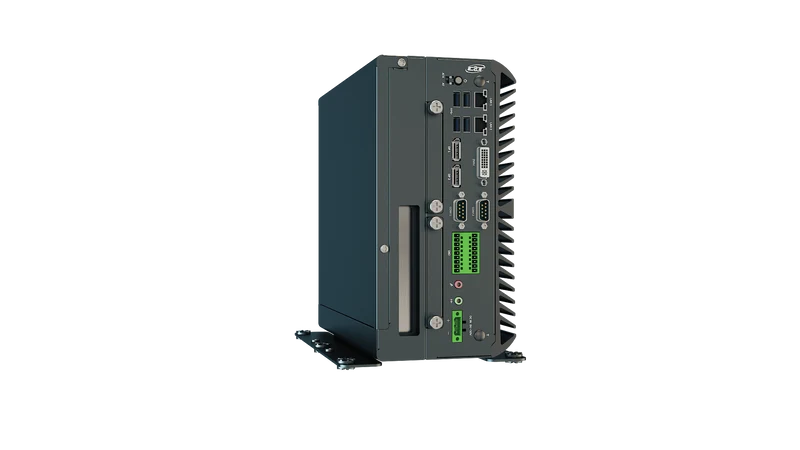

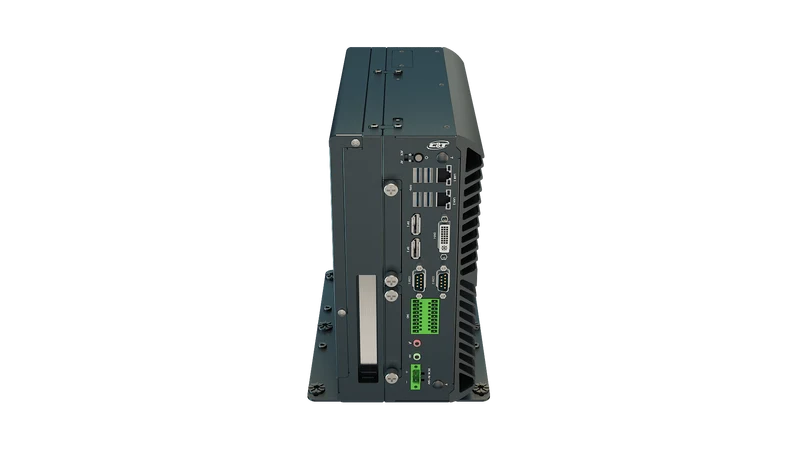

VCO-6000-KBL-1 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processors, 1x Expansion Slot
0,00 €
Descrizione
- 1X PCIe x16 slot (VCO-6000-KBL-1E) or 1 x PCI slot (VCO-6000-KBL-1I)
- LGA 1151 socket for 7th and 6th Gen. Intel® Core™ i7/i5/i3 processor
- 2x DDR4 SODIMM. max up to 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5" SATA HDD Bay, 2x mSATA (shared by 2x mini PCIe), 1x CFast (shared by 1x SATA)
- 3x full-size mini PCIe for communication or expansion modules
- 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.0
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input supporting AT/ATX mode
- -25°C to 70°C extended operating temperature
