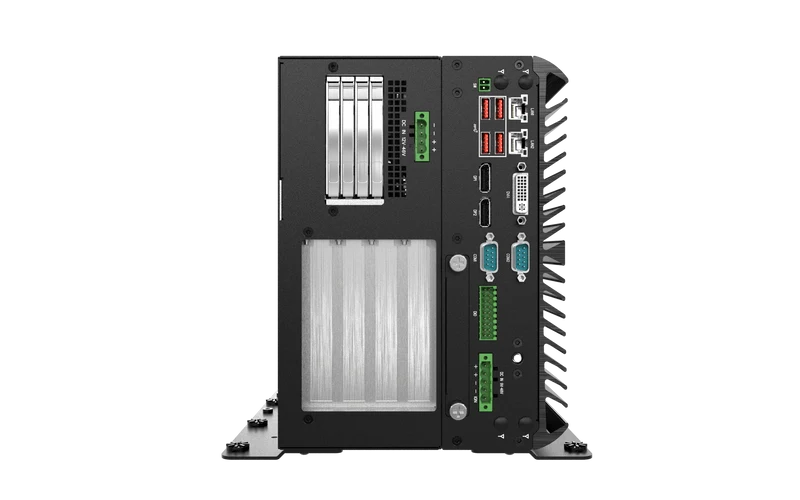

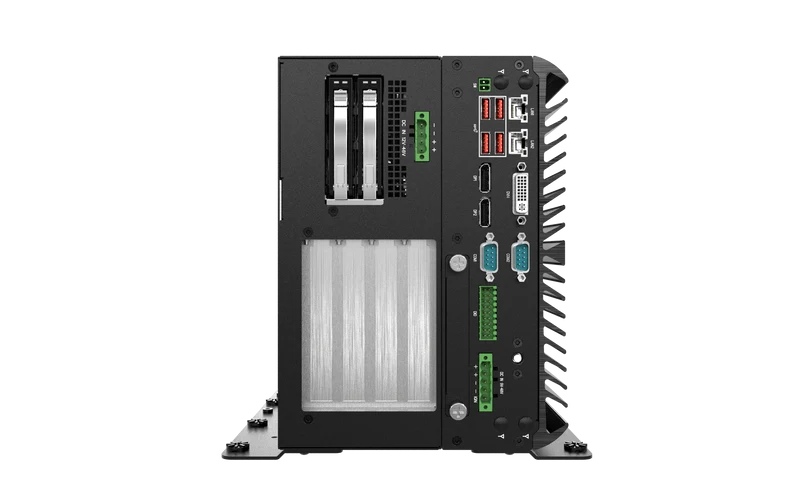

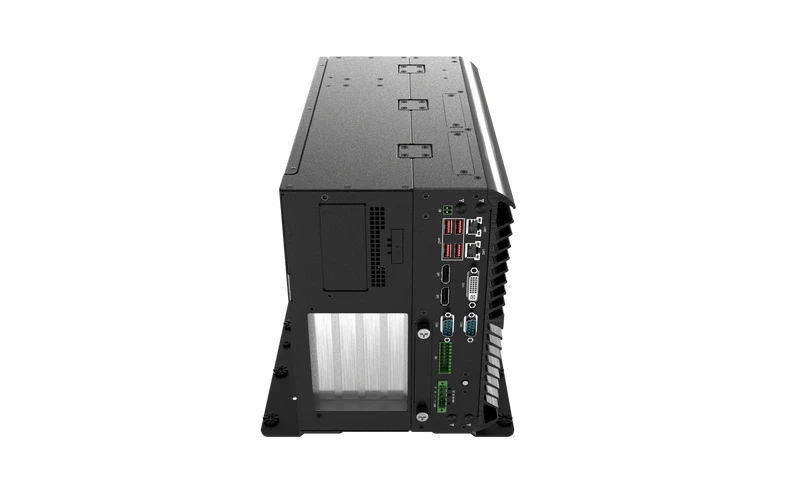

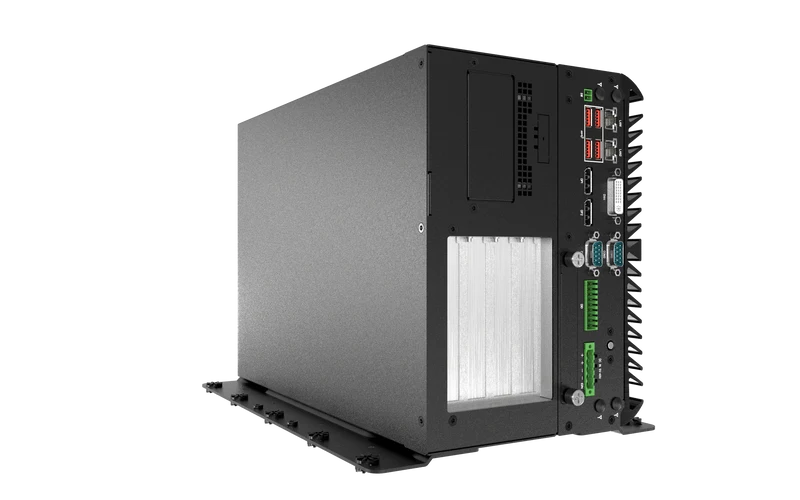

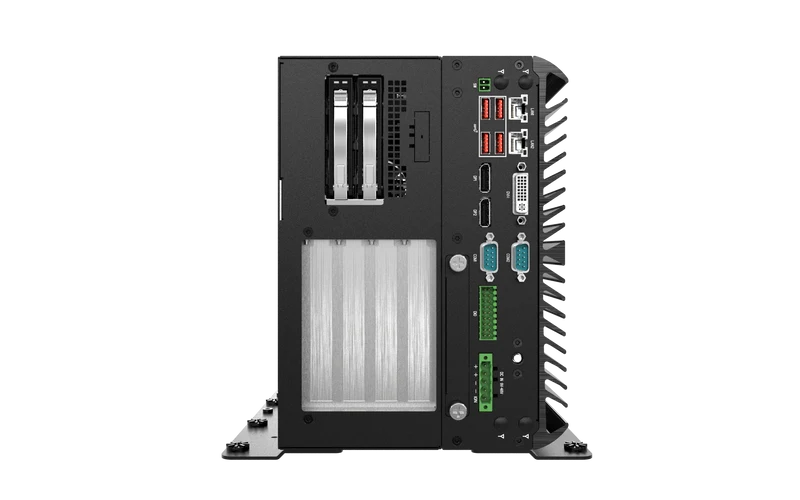

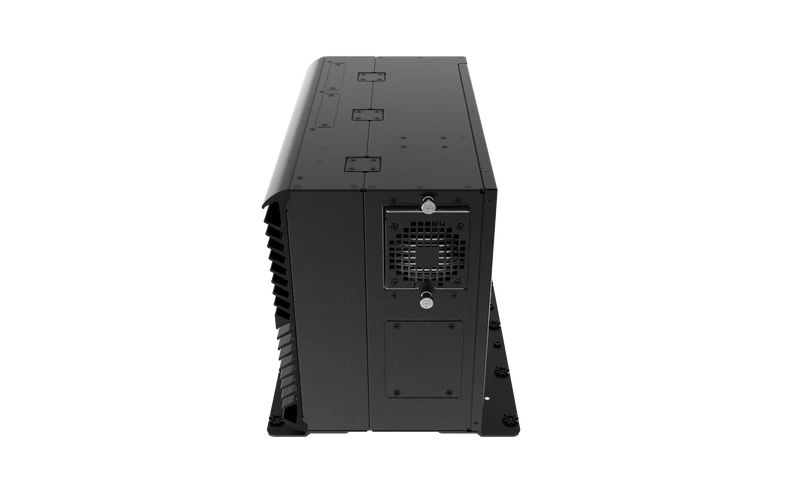

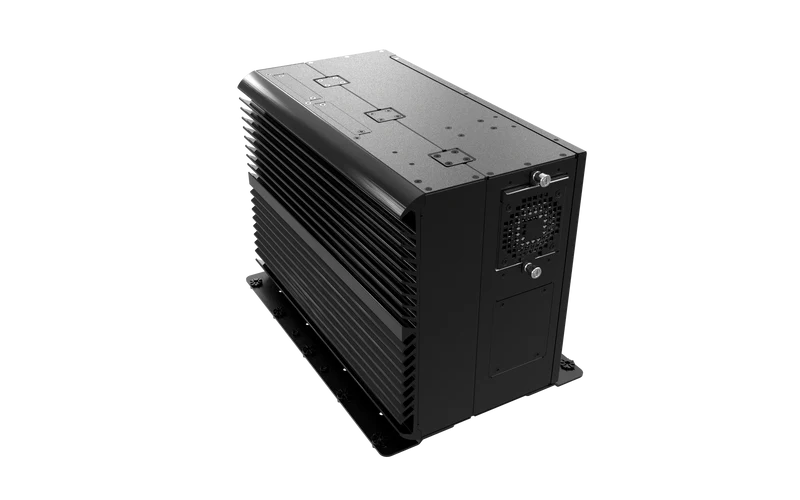

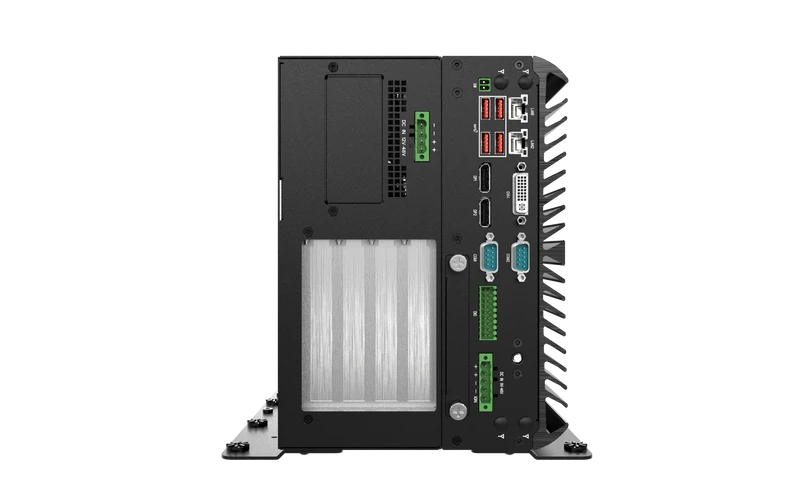

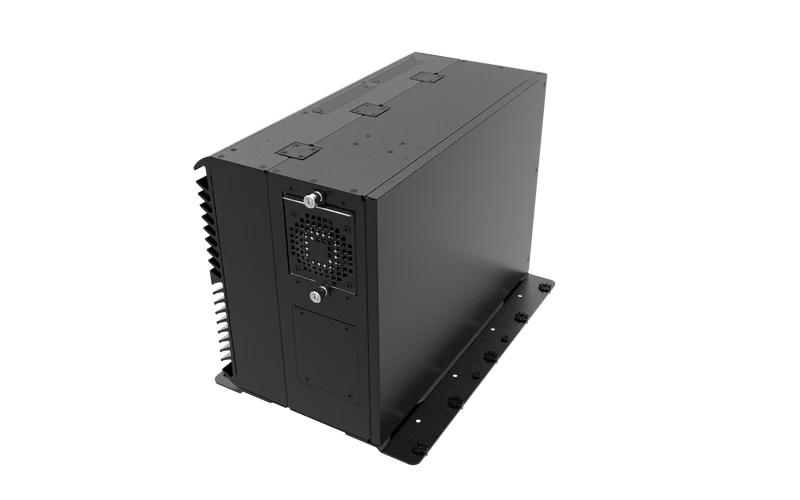

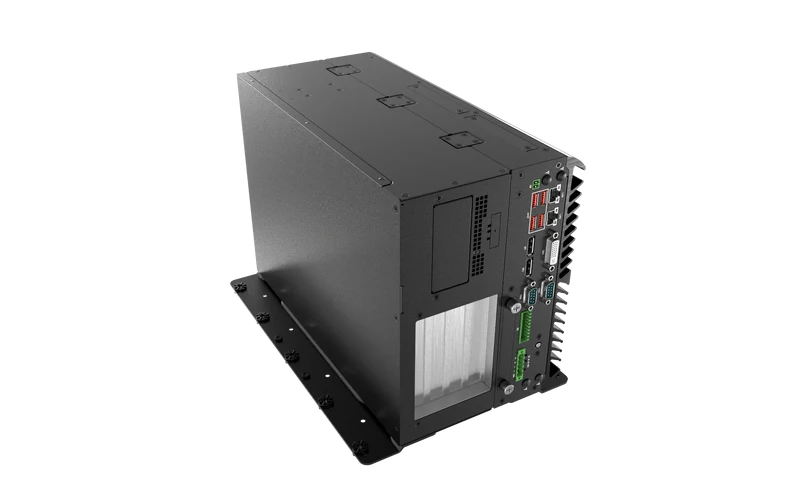

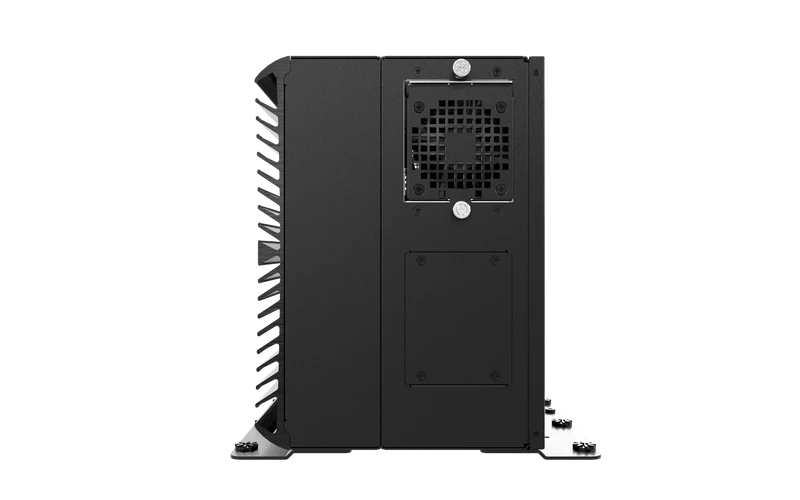

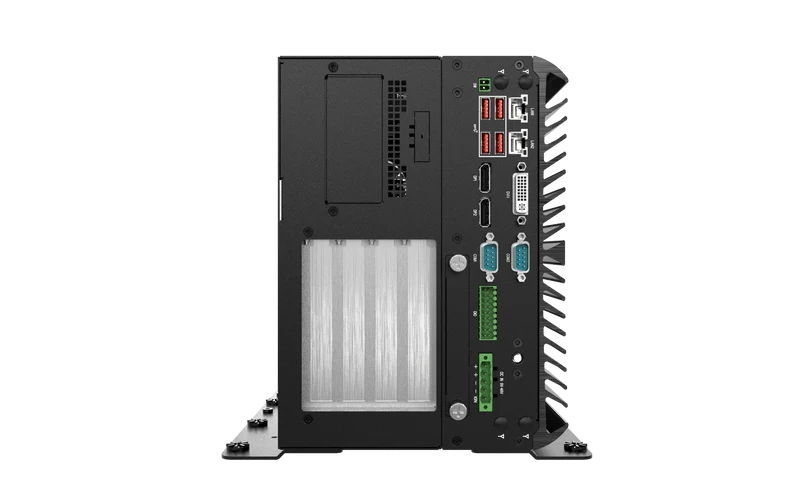

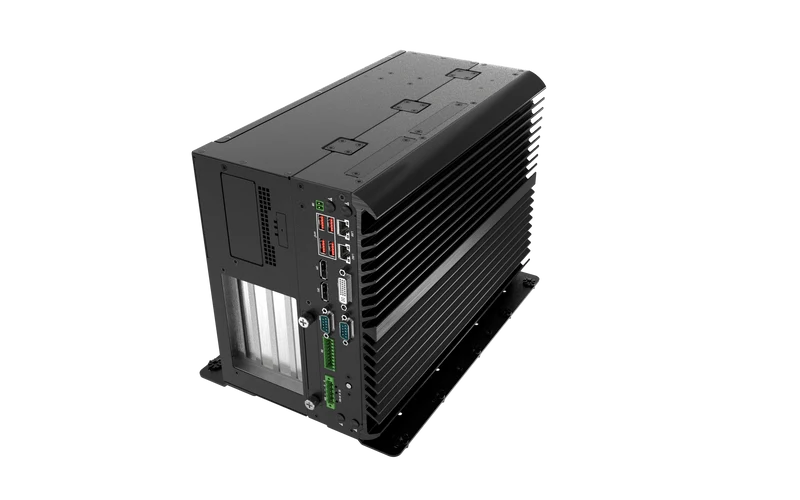

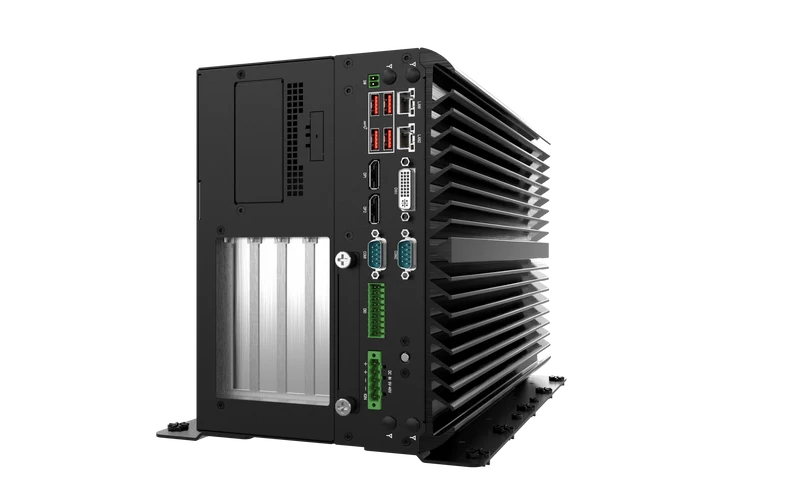

VCO-6000-RPL-4-2PWR Machine Vision Computer with LGA 1700 for Intel® Core™ (Series 2)/14th/13th/12th Gen Processors & R680E PCH, 3x PCIe, 4x Expansion Slots, 2x Power Input
0,00 €
Descrizione
- Intel® Core™ Processors (BTL, Series 2) / 14th / 13th / 12th Gen RPL/ADL Series, LGA1700
- Intel® R680E chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 96GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD Bay (1x Internal) and with RAID 0, 1 support
- 1x Full-size Mini PCIe (1x shared by 1x mSATA), 2x SIM socket
- 1x M.2 (E Key, 2230), 1x M.2 (B Key, 2242/3042/3052)
- 2x PCIe x16 (8-lane, Gen 4); 1x PCIe x4 (1-lane, Gen 3)
- 6x RS-232/422/485 (4x internal), 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1 (internal)
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- 48VDC 600W Power Board for GPU Expansion
- Wide Operating Temperature -25°C up to 70°C
- TPM 2.0 Supported
